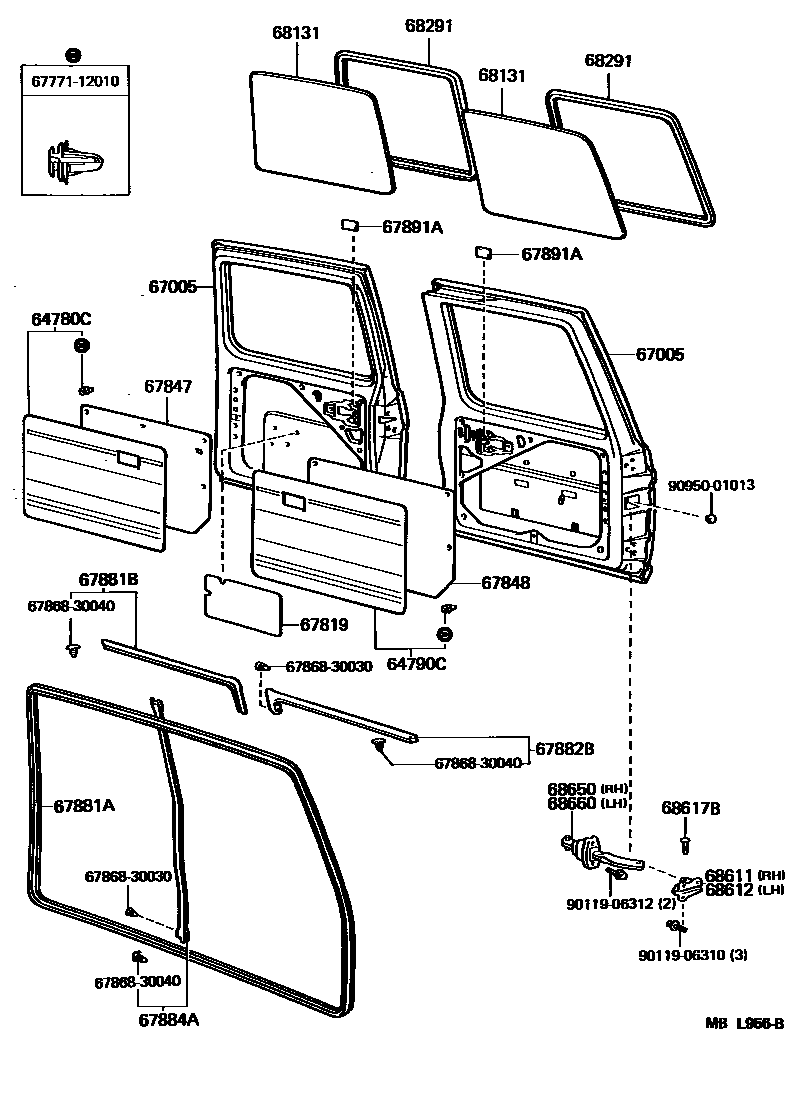

BACK DOOR PANEL & GLASS

0001 1 0002 1

64780CPANEL ASSY, BACK DOOR TRIM, RH

main64780-90A00-03iFJ62,HJ60..SRF..GX198708-199001

SHADOW GRAY,TRIM1#

main64780-90A00-16iFJ62,HJ60..SRF..CBU198708-199001

SEPIA BROWN,TRIM4#

64790CPANEL ASSY, BACK DOOR TRIM, LH

main64790-90A00-03iFJ62,HJ60..SRF..GX198708-199001

SHADOW GRAY,TRIM1#

main64790-90A00-16iFJ62,HJ60..SRF..CBU198708-199001

SEPIA BROWN,TRIM4#

67005PANEL SUB-ASSY, BACK DOOR

main67005-90A23iHJ6#..HRF198708-199001

main67005-90A25iFJ62,HJ60..SRF..GX198708-199001

main67005-90A26iFJ62,HJ60..STD..CBU198708-199001

main67005-90A27iFJ62..EFI198808-199001

main67006-90A26iFJ62,HJ60..STD..CBU198708-199001

main67006-90A27iFJ62,HJ60..SRF..GX198708-199001

67819PAD, BACK DOOR OUTSIDE PANEL

main67819-90A00iFJ62,HJ60..SRF..CBU198708-199001

67847COVER, BACK DOOR SERVICE HOLE, RH

main67847-90A00iFJ62,HJ60..SRF..CBU198708-199001

67848COVER, BACK DOOR SERVICE HOLE, LH

main67848-90A00iFJ62,HJ60..SRF..CBU198708-199001

67881AWEATHERSTRIP, BACK DOOR

main67881-90A06iFJ62,HJ6#..HRF198708-199001

main67881-90A08iFJ62,HJ60..SRF..CBU198708-199001

67881BWEATHERSTRIP, BACK DOOR, UPPER RH

main67881-90A04iFJ62,HJ60..SRF..CBU198708-199001

67882BWEATHERSTRIP, BACK DOOR, UPPER LH

main67882-90A00iFJ62,HJ60..SRF..CBU198708-199001

67884AWEATHERSTRIP, BACK DOOR, CENTER

main67884-90A00iFJ62,HJ60..SRF..CBU198708-199001

67891ASEAL, BACK DOOR

main67891-90A01×2iFJ62,HJ60..SRF..CBU198708-199001

68131GLASS, BACK DOOR

main68131-90A23iFJ62,HJ60..STD..CBU198708-199001

main68131-90A28iFJ62,HJ60..SRF..GX198708-199001

main68131-90A30iFJ62..EFI198808-199001

main68131-90A35iHJ6#..HRF198708-199001

main68132-90A09iFJ62,HJ60..STD..CBU198708-199001

main68132-90A12iFJ62,HJ60..SRF..GX198708-199001

68291WEATHERSTRIP, BACK DOOR GLASS

main68291-90A01iFJ62,HJ6#..HRF198708-199001

main68291-90A02iFJ62,HJ60..SRF..CBU198708-199001

main68292-90A00iFJ62,HJ60..SRF..CBU198708-199001

68611BASE, BACK DOOR CHECK, RH

main68611-90A00iFJ62,HJ60..SRF..CBU198708-199001

68612BASE, BACK DOOR CHECK, LH

main68612-90A00iFJ62,HJ60..SRF..CBU198708-199001

68617BPIN, BACK DOOR CHECK

main68617-90A01×2iFJ62,HJ60..SRF..CBU198708-199001

68650CHECK ASSY, BACK DOOR

main68650-90A01iFJ62,HJ60..STD..CBU198708-199001

main68650-90A02iFJ62,HJ60..SRF..GX198708-199001

68660CHECK ASSY, BACK DOOR, LH

main68660-90A01iFJ62,HJ60..SRF..CBU198708-199001

6777112010WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-12010

6786830030CLIP, FRONT DOOR GLASS WEATHERSTRIP

main67868-30030

6786830040CLIP, FRONT DOOR GLASS WEATHERSTRIP

main67868-30040

9011906310

main90119-06310

9011906312

main90119-06312

9095001013

main90950-01013

24 parts on this diagram · 2 diagrams in section
