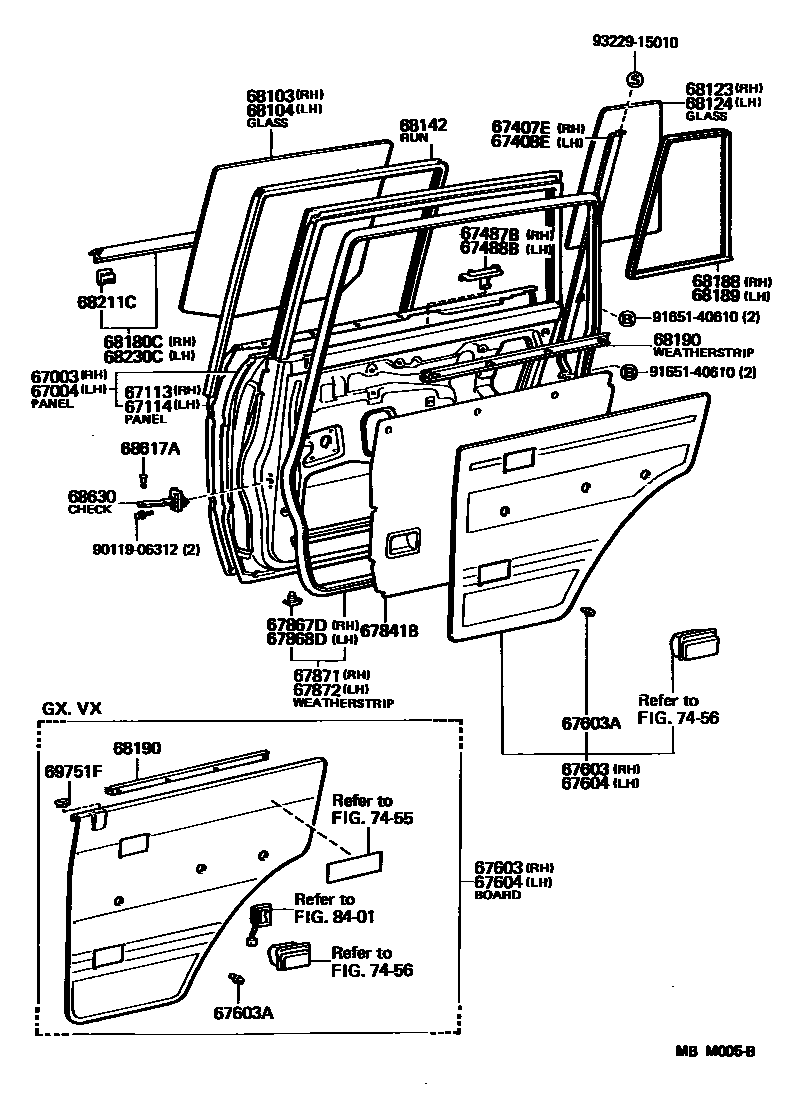

REAR DOOR PANEL & GLASS

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-90A15iFJ62,HJ60..CBR,DSL198708-199001

main67003-90A17iFJ62,HJ60..GX198708-199001

main67003-90A21iFJ62,HJ61..VX198708-199001

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-90A15iFJ62,HJ60..CBR,DSL198708-199001

main67004-90A17iFJ62,HJ60..GX198708-199001

main67004-90A21iFJ62,HJ61..VX198708-199001

67113PANEL, REAR DOOR, OUTER RH

main67113-90A05iFJ62,HJ60..CBR,DSL198708-199001

main67113-90A07iFJ62,HJ61..VX198708-199001

67114PANEL, REAR DOOR, OUTER LH

main67114-90A05iFJ62,HJ60..CBR,DSL198708-199001

main67114-90A07iFJ62,HJ61..VX198708-199001

67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH

main67407-90A00iFJ62,HJ6#198708-199001

67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH

main67408-90A00iFJ62,HJ6#198708-199001

67487BSEAL, REAR DOOR DIVISION BAR, RH

main67487-90A00iFJ62,HJ60..STD198708-199001

67488BSEAL, REAR DOOR DIVISION BAR, LH

main67488-90A00iFJ62,HJ60..STD198708-199001

67603BOARD SUB-ASSY, REAR DOOR TRIM, RH

main67630-90A11-06iFJ62,HJ60..STD198708-199001

SEPIA BROWN,TRIM4#

main67630-90A21-03iFJ62,HJ60..GX198708-198808

main67630-90A21-06iFJ62,HJ60..GX198708-198808

main67630-90A27-03iHJ61198708-198808

SHADOW GRAY,TRIM1#

main67630-90A27-06iHJ61198708-198808

SEPIA BROWN,TRIM4#

main67630-90A29-03iFJ62,HJ60..GX198708-198808

SHADOW GRAY,TRIM1#

main67630-90A29-06iFJ62,HJ60..GX198708-198808

SEPIA BROWN,TRIM4#

main67630-90A32-03iFJ62,HJ61..VX198808-199001

SHADOW GRAY,TRIM1#

main67630-90A32-06iFJ62,HJ61..VX198808-199001

SEPIA BROWN,TRIM4#

main67630-90A34-03iFJ62,HJ60..GX198808-199001

SHADOW GRAY,TRIM1#

main67630-90A34-06iFJ62,HJ60..GX198808-199001

SEPIA BROWN,TRIM4#

main67630-90A35-03iFJ62,HJ60..GX198808-199001

main67630-90A35-06iFJ62,HJ60..GX198808-199001

67603ARETAINER(FOR REAR DOOR TRIM BOARD)

main67771-30060×18iFJ62,HJ60..GX,VX198808-199001

67604BOARD SUB-ASSY, REAR DOOR TRIM, LH

main67640-90A11-06iFJ62,HJ60..STD198708-199001

SEPIA BROWN,TRIM4#

main67640-90A21-03iFJ62,HJ60..GX198708-198808

main67640-90A21-06iFJ62,HJ60..GX198708-198808

main67640-90A27-03iHJ61198708-198808

SHADOW GRAY,TRIM1#

main67640-90A27-06iHJ61198708-198808

SEPIA BROWN,TRIM4#

main67640-90A29-03iFJ62,HJ60..GX198708-198808

SHADOW GRAY,TRIM1#

main67640-90A29-06iFJ62,HJ60..GX198708-198808

SEPIA BROWN,TRIM4#

main67640-90A33-03iFJ62..EFI198808-199001

SHADOW GRAY,TRIM1#

main67640-90A33-06iFJ62..EFI198808-199001

SEPIA BROWN,TRIM4#

main67640-90A35-03iFJ62,HJ60..GX198808-199001

SHADOW GRAY,TRIM1#

main67640-90A35-06iFJ62,HJ60..GX198808-199001

SEPIA BROWN,TRIM4#

main67640-90A36-03iFJ62,HJ60..GX198808-199001

main67640-90A36-06iFJ62,HJ60..GX198808-199001

main67640-90A39-03iHJ61198808-199001

SHADOW GRAY,TRIM1#

main67640-90A39-06iHJ61198808-199001

SEPIA BROWN,TRIM4#

67841BCOVER, REAR DOOR SERVICE HOLE

main67805-90A01×2iFJ62,HJ6#198708-199001

67867DRETAINER, REAR DOOR WEATHERSTRIP, RH

main67868-30040×21iFJ62,HJ6#198708-199001

67868DRETAINER, REAR DOOR WEATHERSTRIP, LH

main67868-30040×21iFJ62,HJ6#198708-199001

67871WEATHERSTRIP, REAR DOOR, RH

main67871-90A00iFJ62,HJ6#198708-199001

67872WEATHERSTRIP, REAR DOOR, LH

main67872-90A00iFJ62,HJ6#198708-199001

68103GLASS SUB-ASSY, REAR DOOR, RH

main68113-90A00iFJ62,HJ60..STD198708-199001

main68113-90A01iFJ62,HJ60..SRF..GX198708-199001

main68113-90A02iFJ62,HJ6#..HRF198708-199001

68104GLASS SUB-ASSY, REAR DOOR, LH

main68114-90A00iFJ62,HJ60..STD198708-199001

main68114-90A01iFJ62,HJ60..SRF..GX198708-199001

main68114-90A02iFJ62,HJ6#..HRF198708-199001

68123GLASS, REAR DOOR WINDOW, RH

main68123-90A00iFJ62,HJ60..STD198708-199001

main68123-90A01iFJ62,HJ60..SRF..GX198708-199001

main68123-90A02iFJ62,HJ6#..HRF198708-199001

68124GLASS, REAR DOOR WINDOW, LH

main68124-90A00iFJ62,HJ60..STD198708-199001

main68124-90A01iFJ62,HJ60..SRF..GX198708-199001

main68124-90A02iFJ62,HJ6#..HRF198708-199001

68142RUN, REAR DOOR GLASS

main68142-90A01×2iFJ62,HJ6#198708-199001

68180CWEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER RH

main68180-90A01iFJ62,HJ60..STD198708-199001

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-90A00iFJ62,HJ6#198708-199001

68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH

main68189-90A00iFJ62,HJ6#198708-199001

68190WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER

main68190-90A00×2iFJ62,HJ60..STD198708-199001

main68190-90A01×2iFJ62,HJ6#..GX,VX198708-199001

68211CCLIP(FOR REAR DOOR GLASS WEATHERSTRIP)

main68211-90K00×8iFJ62,HJ60..STD198708-199001

68230CWEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER LH

main68230-90A01iFJ62,HJ60..STD198708-199001

68617APIN, REAR DOOR CHECK

main68617-90A01×2iFJ62,HJ6#198708-199001

68630CHECK ASSY, REAR DOOR

main68630-90A00×2iFJ62,HJ6#198708-199001

69751FHOLDER, REAR DOOR LOCK CONTROL KNOB

main69079-90K00-06×2iFJ62,HJ60..STD198708-199001

SEPIA BROWN,TRIM4#

main69751-20040×2iFJ62,HJ6#..GX,VX198708-198808

main69751-32010-13×2iFJ62,HJ61..VX198808-199001

SHADOW GRAY,TRIM1#

main69751-32010-26×2iFJ62,HJ61..VX198808-199001

SEPIA BROWN,TRIM4#

7455CAUTION PLATE

→ Go to FIG 74-55

7456ASH RECEPTACLE

→ Go to FIG 74-56

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011906312

main90119-06312

9165140610

main91651-40610

9322915010

main93229-15010

36 parts on this diagram · 1 diagram in section
