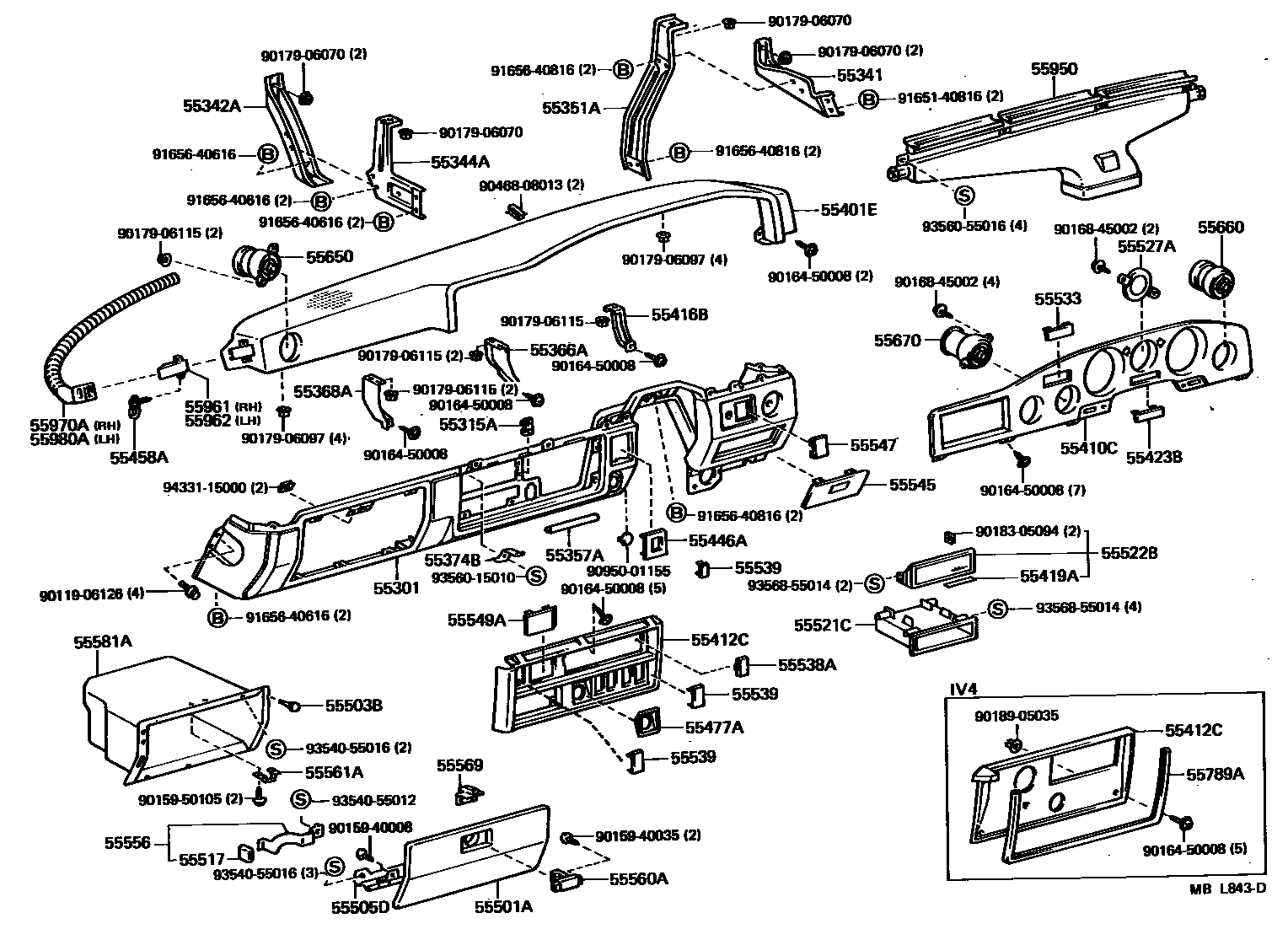

INSTRUMENT PANEL & GLOVE COMPARTMENT

55301PANEL SUB-ASSY, INSTRUMENT

main55301-90A70-03iFJ62,HJ6#..GX,VX198708-199001

SHADOW GRAY,TRIM1#

main55301-90A70-05iFJ62,HJ6#198708-199001

SEPIA BROWN,TRIM4#

55315ASPACER, INSTRUMENT PANEL, NO.1

main55315-90A00iFJ62,HJ6#198708-199001

55341BRACE, INSTRUMENT PANEL, NO.1

main55341-90A00iFJ62198708-199001

main55341-90A01iHJ6#198708-199001

55342ABRACE, INSTRUMENT PANEL TO COWL, NO.2

main55342-90A00iFJ62,HJ6#198708-199001

55344ABRACE, INSTRUMENT PANEL TO COWL, NO.3

main55344-90A00iFJ62,HJ6#198708-199001

55351ABRACE, INSTRUMENT PANEL TO FLOOR

main55351-90A00iFJ62198708-199001

main55351-90A02iHJ6#198708-199001

55357APROTECTOR, EDGE, NO.1

main55357-90A00iFJ62,HJ6#198708-199001

55366ABRACKET, RADIO MOUNTING, NO.1

main55366-90A02iFJ62,HJ6#198708-199001

55368ABRACKET, RADIO MOUNTING, NO.2

main55368-90A03iFJ62,HJ6#198708-199001

55374BBRACKET, INSTRUMENT PANEL

main55374-90A00iFJ62,HJ6#198708-199001

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-90A04-03iFJ62,HJ6#..GX,VX198710-199001

SHADOW GRAY,TRIM1#

main55401-90A04-05iFJ62,HJ6#198710-199001

SEPIA BROWN,TRIM4#

main55401-90A06-03iFJ62,HJ6#..GX,VX198708-198710

SHADOW GRAY,TRIM1#

main55401-90A06-05iFJ62,HJ6#198708-198710

SEPIA BROWN,TRIM4#

55410CPANEL ASSY, INSTRUMENT CLUSTER FINISH

main55410-90G25iFJ62,HJ60..STD..CBU198708-198710

main55410-90G26iFJ62..IV4;FJ62,HJ6#..GX,VX198708-198710

55412CPANEL, INSTRUMENT CLUSTER FINISH, CENTER NO.1

main55412-90A09-03iFJ62,HJ6#..GX,VX198708-199001

SHADOW GRAY,TRIM1#

main55412-90A09-05iFJ62,HJ6#..CBU198708-199001

SEPIA BROWN,TRIM4#

main55420-90A05-06iFJ62..IV4198708-199001

SEPIA BROWN,TRIM4#

55416BBRACKET, INSTRUMENT PAD, NO.2

main55416-90A00iFJ62,HJ6#198708-199001

55419ACUSHION, INSTRUMENT CLUSTER FINISH PANEL

main55419-14020×2iFJ62..IV4198708-199001

55423BCOVER, INSTRUMENT CLUSTER FINISH PANEL

main55423-90A00iFJ62,HJ6#198708-199001

55446ABASE, SWITCH HOLE, NO.1

main55446-90A01-06iFJ62..IV4198708-199001

SEPIA BROWN,TRIM4#

main55446-90A02-06iFJ62,HJ6#..CBU198708-199001

SEPIA BROWN,TRIM4#

main55446-90A02-13iFJ62,HJ6#..GX,VX198708-199001

SHADOW GRAY,TRIM1#

55458ACAP, INSTRUMENT PANEL SAFETY PAD

main55458-90A00×2iFJ62,HJ6#198708-199001

55477ABEZEL, CIGARETTE LIGHTER HOLE

main55477-87001iFJ62..CBU198708-199001

main55477-90A02iHJ6#198708-199001

55501ADOOR SUB-ASSY, GLOVE COMPARTMENT

main55501-90A00-06iFJ62,HJ6#198708-199001

SEPIA BROWN,TRIM4#

main55501-90A00-23iFJ62,HJ6#..GX,VX198708-199001

SHADOW GRAY,TRIM1#

55503BCUSHION(FOR GLOVE COMPARTMENT)

main90541-03015×2iFJ62,HJ6#198708-199001

55505DHINGE SUB-ASSY, GLOVE COMPARTMENT DOOR

main55505-90A00iFJ62,HJ6#198708-199001

55517STOPPER, GLOVE COMPARTMENT DOOR ARM

main55517-14010iFJ62,HJ6#198708-199001

55521CCOVER, STEREO OPENING

main55521-14050-01iFJ62,HJ60..CBR,DSL198708-199001

BLACK,TRIM1#,4#

55522BCOVER, RADIO TUNER OPENING

main55522-32010iFJ62..IV4198708-199001

55527ACOVER, METER OPENING

main55527-90A00iFJ62,HJ60..STD..CBU198708-199001

55533COVER, AUTO CLOCK HOLE

main55533-90A00iFJ62,HJ60..STD198708-199001

55538ACOVER, COOLER SWITCH HOLE

main55538-22010iFJ62,HJ6#198708-199001

55539COVER, SPARE SWITCH HOLE

main55539-32010-01iFJ62,HJ60..STD..CBU; FJ62..CBR; HJ6#198708-199001

BLACK,TRIM1#,4#; BLACK,TRIM4#

55545COVER, FUSE BOX OPENING

main55545-90A01-03iFJ62,HJ6#..GX,VX198708-199001

SHADOW GRAY,TRIM1#

main55545-90A01-06iFJ62,HJ6#198708-199001

SEPIA BROWN,TRIM4#

55547COVER, REMOTE CONTROL MIRROR HOLE

main55547-90A00iFJ62,HJ60..STD198708-199001

55549ACOVER, REAR COOLER SWITCH HOLE

main55549-90A00iFJ62,HJ6#..CBU198708-199001

55556ARM, GLOVE COMPARTMENT DOOR CHECK

main55556-90A00iFJ62,HJ6#198708-199001

55560ALOCK ASSY, GLOVE COMPARTMENT DOOR

main55560-12020iFJ62,HJ6#198708-199001

55561ASTRIKER, GLOVE COMPARTMENT DOOR LOCK

main55561-90A00iFJ62,HJ6#198708-199001

55569COVER, GLOVE COMPARTMENT DOOR LOCK

main55569-90A00-06iFJ62,HJ6#198708-199001

SEPIA BROWN,TRIM4#

main55569-90A00-23iFJ62,HJ6#..GX,VX198708-199001

SHADOW GRAY,TRIM1#

55581ACOMPARTMENT, GLOVE

main55581-90A04iFJ62,HJ6#..CBR,DSL,TD198708-199001

main55581-90A07iFJ62..EFI198808-199001

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-90A02iFJ62,HJ6#198708-199001

55660REGISTER ASSY, INSTRUMENT PANEL, NO.2

main55660-90A00iFJ62,HJ6#198708-199001

55670REGISTER ASSY, INSTRUMENT PANEL, NO.3

main55670-90A02×2iFJ62,HJ6#198708-199001

55789APROTECTOR, INSTRUMENT CLUSTER FINISH PANEL

main55789-90351iFJ62..IV4198708-199001

55950NOZZLE ASSY, DEFROSTER

main55950-90A00iFJ62,HJ6#198708-198805

main55950-90A02iFJ62,HJ6#198805-199001

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-90A00-03iFJ62,HJ6#..GX,VX198708-199001

GRAY,TRIM1#

main55961-90A00-16iFJ62,HJ6#198708-199001

SEPIA BROWN,TRIM4#

55962NOZZLE, SIDE DEFROSTER, NO.2

main55961-90A00-03iFJ62,HJ6#..GX,VX198708-199001

GRAY,TRIM1#

main55961-90A00-16iFJ62,HJ6#198708-199001

SEPIA BROWN,TRIM4#

55970ADUCT ASSY, SIDE DEFROSTER, RH

main55970-90A00iFJ62,HJ6#198708-199001

55980ADUCT ASSY, SIDE DEFROSTER, LH

main55980-90A00iFJ62,HJ6#198708-199001

9011906126

main90119-06126

9015940008

main90159-40008

9015940035

main90159-40035

9015950105

main90159-50105

9016450008

main90164-50008

9016845002

main90168-45002

9017906070

main90179-06070

9017906097

main90179-06097

9017906115

main90179-06115

9018305094

main90183-05094

9018905035

main90189-05035

9046808013

main90468-08013

9095001155

main90950-01155

9165140816

main91651-40816

9165640616

main91656-40616

9165640816

main91656-40816

9354055012

main93540-55012

9354055016

main93540-55016

9356015010

main93560-15010

9356055016

main93560-55016

9356855014

main93568-55014

9433115000

main94331-15000

68 parts on this diagram · 1 diagram in section
