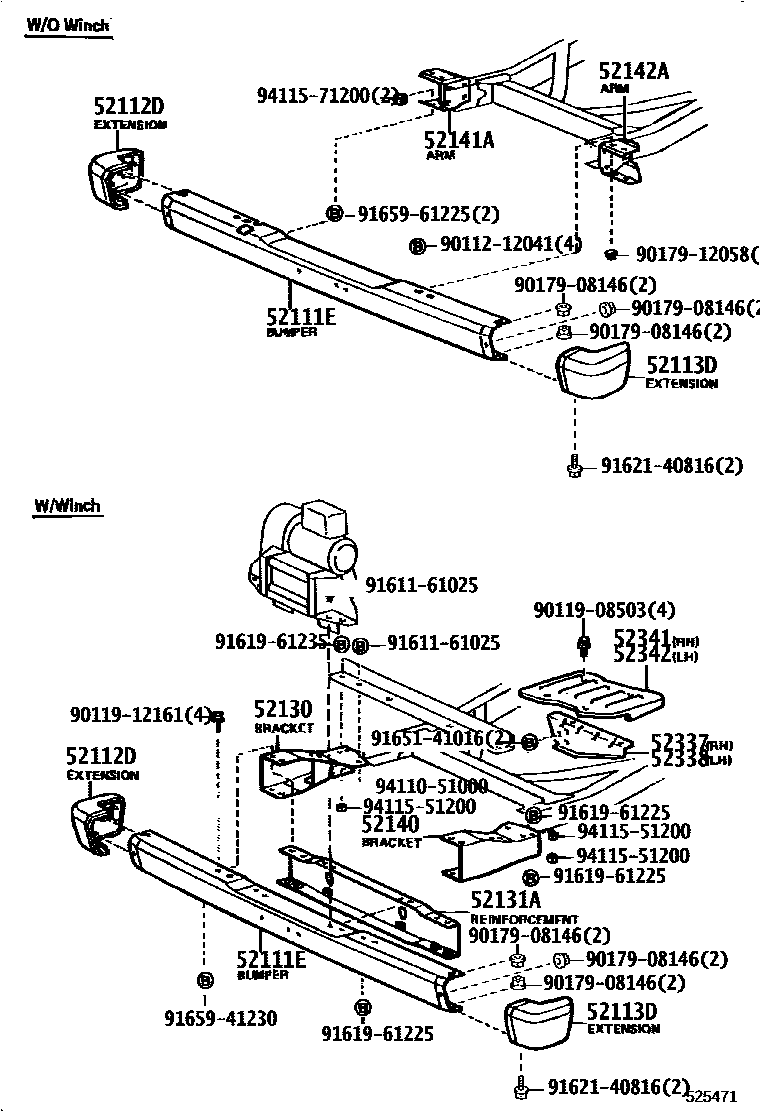

FRONT BUMPER & BUMPER STAY

0001 1 0002 1

52111EBAR, FRONT BUMPER

main52111-90A02iFJ62,HJ60..STD..CBU198708-199001

main52111-90A03iFJ62,HJ6#..GX,VX198708-199001

main52111-90A04iFJ62..STD..CBU; HJ60..STD198708-199001

main52111-90A05iFJ62..EFI; FJ62..GX; HJ6#..GX,VX198708-199001

main52111-90A08iFJ62..IV4198708-199001

52112DEXTENSION, FRONT BUMPER, RH

main52102-90A00iFJ62,HJ6#198708-199001

52113DEXTENSION, FRONT BUMPER, LH

main52103-90A00iFJ62,HJ6#198708-199001

52130BRACKET ASSY, FRONT BUMPER SIDE MOUNTING, RH

main52130-90A00iFJ62..CBU..CBR; FJ62..EFI; HJ6#198708-199001

52131AREINFORCEMENT, FRONT BUMPER

main52131-90A00iFJ62..CBU..CBR; FJ62..EFI; HJ6#198708-199001

52140BRACKET ASSY, FRONT BUMPER SIDE MOUNTING, LH

main52140-90A00iFJ62..CBU..CBR; FJ62..EFI; HJ6#198708-199001

52141AARM, FRONT BUMPER, UPPER RH

main52141-60050iFJ62,HJ6#..CBU198708-199001

main52141-90A00iFJ62..IV4198708-199001

52142AARM, FRONT BUMPER, UPPER LH

main52142-60040iFJ62,HJ6#..CBU198708-199001

main52142-90A00iFJ62..IV4198708-199001

52337STAY, FRONT BUMPER STEP, RH

main52337-90A01iFJ62..CBU..CBR; FJ62..EFI; HJ6#198708-199001

52338STAY, FRONT BUMPER STEP, LH

main52338-90A01iFJ62..CBU..CBR; FJ62..EFI; HJ6#198708-199001

52341STEP, FRONT BUMPER, RH

main52341-90A02iFJ62..STD..CBU; HJ60..STD198708-199001

main52341-90A03iFJ62..EFI; FJ62..GX; HJ6#..GX,VX198708-199001

52342STEP, FRONT BUMPER, LH

main52342-90A02iFJ62..STD..CBU; HJ60..STD198708-199001

main52342-90A03iFJ62..EFI; FJ62..GX; HJ6#..GX,VX198708-199001

9011212041

main90112-12041

9011908503

main90119-08503

9011912161

main90119-12161

9017908146

main90179-08146

9017912058

main90179-12058

9161161025

main91611-61025

9161961225

main91619-61225

9161961235

main91619-61235

9162140816

main91621-40816

9165141016

main91651-41016

9165941230

main91659-41230

9165961225

main91659-61225

9411051000

main94110-51000

9411551200

main94115-51200

9411571200

main94115-71200

27 parts on this diagram · 2 diagrams in section
