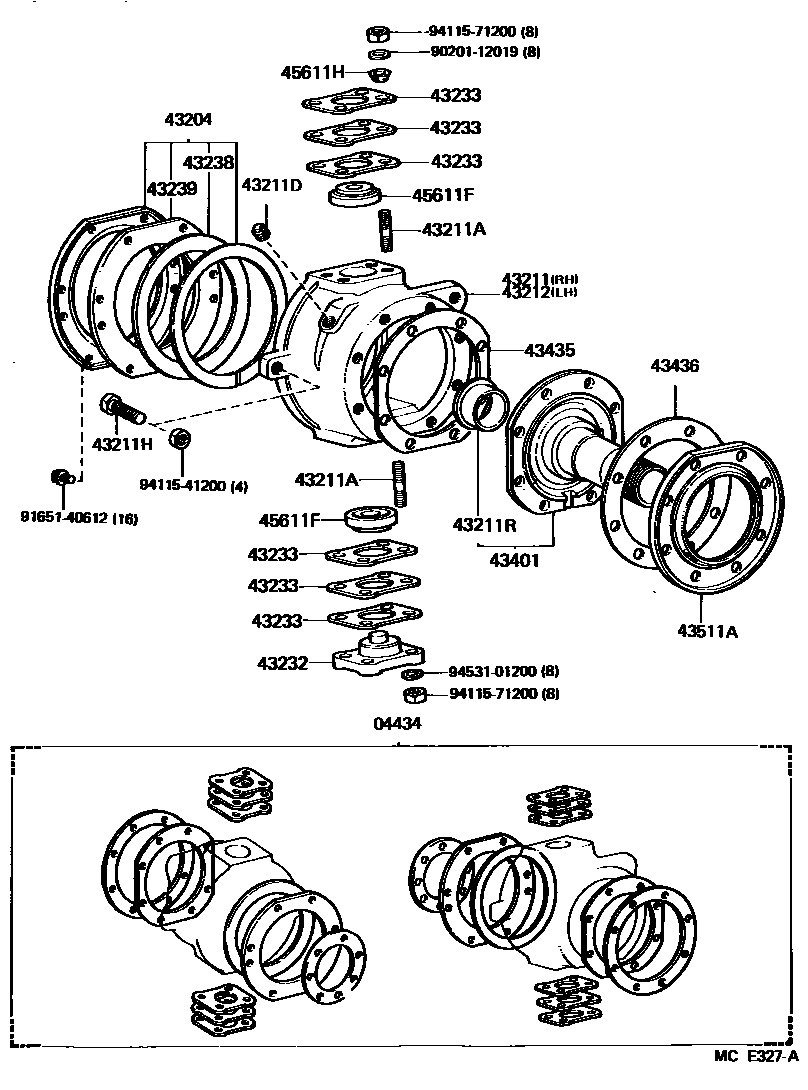

FRONT AXLE ARM & STEERING KNUCKLE

04434GASKET KIT, FRONT AXLE OVERHAUL

main04434-60012iFJ62198708-199001

43204SEAL SUB-ASSY, STEERING KNUCKLE OIL

main43204-60020iFJ62,HJ6#198708-199001

43211KNUCKLE, STEERING, RH

main43211-60050iFJ62,HJ6#198708-199001

43211ABOLT, STUD (FOR STEERING SET)

main90116-12007iFJ62,HJ6#198708-199001

43211DPLUG (FOR STEERING KNUCKLE)

main90345-53020iFJ62,HJ6#198708-199001

43211HBOLT, ROUND HEXAGON

main90106-12022iFJ62,HJ6#198708-199001

43211RBUSH (FOR STEERING KNUCKLE)

main90381-33001iFJ62,HJ6#198708-199001

main90381-33002iFJ62,HJ6#199001-199001

43212KNUCKLE, STEERING, LH

main43212-60050iFJ62,HJ6#198708-199001

43232CAP, STEERING KNUCKLE BEARING

main43232-35010iFJ62,HJ6#198708-199001

43233SHIM, STEERING KNUCKLE ADJUST, NO.1

main43233-60011iFJ62,HJ6#198708-199001

main43234-60011iFJ62,HJ6#198708-199001

main43235-60010iFJ62,HJ6#198708-199001

main43236-60010iFJ62,HJ6#198708-199001

main43237-60030iFJ62,HJ6#198708-199001

43238SEAL, STEERING KNUCKLE OIL, INNER

main43238-60010iFJ62,HJ6#198708-199001

43239SEAL, STEERING KNUCKLE OIL, OUTER

main43239-60020iFJ62,HJ6#198708-199001

43401SPINDLE SUB-ASSY, STEERING KNUCKLE

main43401-60012iFJ62,HJ6#198708-199001

main43401-60060iFJ62,HJ6#199001-199001

43435GASKET, KNUCKLE SPINDLE

main43435-60011iFJ62,HJ6#198708-199001

43436GASKET, KNUCKLE SPINDLE OIL RETAINER

main43436-60011iFJ62,HJ6#198708-199001

43511ASEAL, DUST (FOR FRONT AXLE HUB)

main90313-93011iFJ62,HJ6#198708-199001

45611FBEARING(FOR STEERING KNUCKLE ARM)

main90366-17001iFJ62,HJ6#198708-199001

45611HDOWEL, SPLIT(FOR STEERING KNUCKLE ARM)

main42323-60020iFJ62,HJ6#198708-199001

9020112019

main90201-12019

9165140612

main91651-40612

9411541200

main94115-41200

9411571200

main94115-71200

9453101200

main94531-01200

23 parts on this diagram · 1 diagram in section
