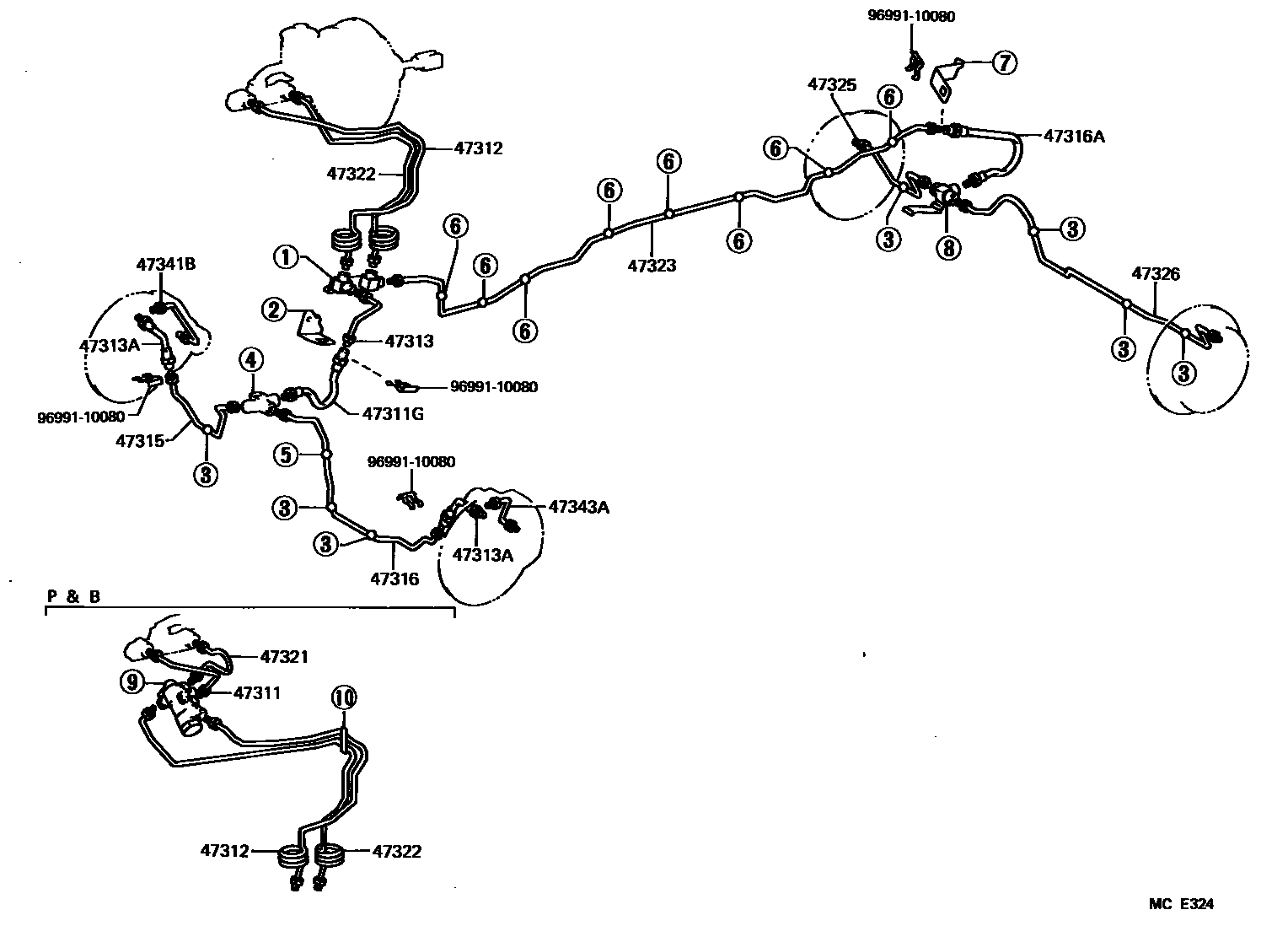

BRAKE TUBE & CLAMP

0001 1 0002 1

47311TUBE, FRONT BRAKE, NO.1

main47311-60450iFJ62,HJ6#..CBU198708-199001

47311GHOSE, FLEXIBLE(FOR BRAKE TUBE)

main96940-33005iFJ62,HJ6#198708-199001

47312TUBE, FRONT BRAKE, NO.2

main47312-60630iFJ62,HJ6#..CBU198708-199001

main47312-60640iFJ62..IV4198708-199001

47313TUBE, FRONT BRAKE, NO.3

main47313-60091iFJ62,HJ6#198708-199001

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main96940-39855×2iFJ62,HJ6#198708-199001

47315TUBE, FRONT BRAKE, NO.5

main47315-60340iFJ62,HJ6#198708-199001

47316TUBE, FRONT BRAKE, NO.6

main47316-60310iFJ62,HJ6#198708-199001

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main96940-33805iFJ62,HJ6#198708-199001

47321TUBE, REAR BRAKE, NO.1

main47321-60120iFJ62,HJ6#..CBU198708-199001

47322TUBE, REAR BRAKE, NO.2

main47322-60510iFJ62,HJ6#..CBU198708-199001

main47322-60520iFJ62..IV4198708-199001

47323TUBE, REAR BRAKE, NO.3

main47323-60031iFJ62,HJ6#198708-199001

47325TUBE, REAR BRAKE, NO.5

main47325-60100iFJ62,HJ6#198708-199001

47326TUBE, REAR BRAKE, NO.6

main47326-60110iFJ62,HJ6#198708-199001

47341BTUBE, WHEEL CYLINDER, FRONT RH NO.1

main47341-60031iFJ62,HJ6#198708-199001

47343ATUBE, WHEEL CYLINDER, FRONT LH NO.1

main47343-60021iFJ62,HJ6#198708-199001

9699110080

main96991-10080

16 parts on this diagram · 2 diagrams in section
