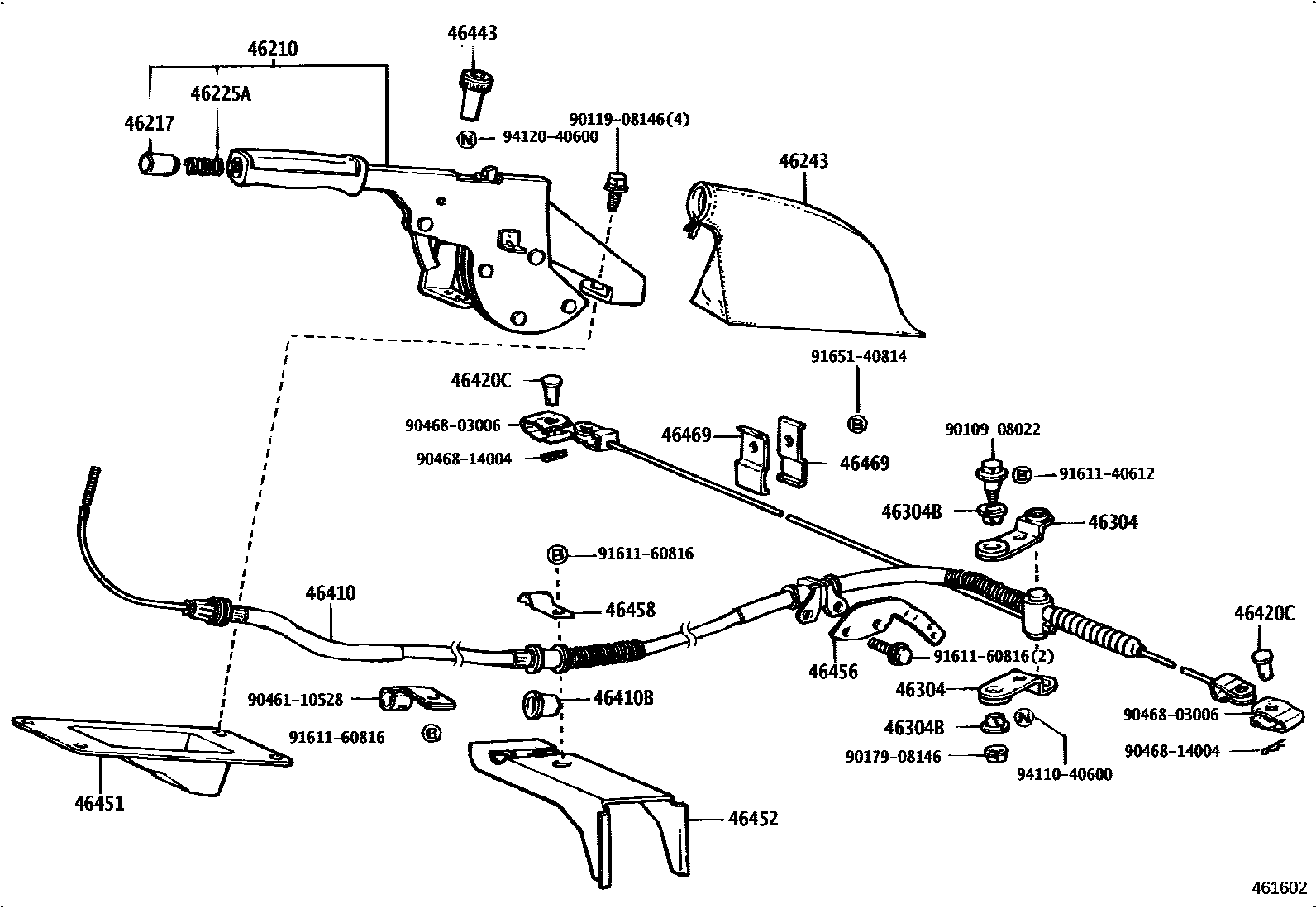

PARKING BRAKE & CABLE

46210LEVER ASSY, PARKING BRAKE

main46210-60040-01iFJ62,HJ6#..GX,VX198708-198810

BLACK,TRIM1#

main46210-60040-16iFJ62,HJ6#198708-198810

SEPIA BROWN,TRIM4#

main46210-60041-01iFJ62,HJ6#..GX,VX198810-199001

BLACK,TRIM1#

main46210-60041-06iFJ62,HJ6#198810-199001

BROWN,TRIM4#

46217KNOB, PARKING BRAKE RELEASE ROD

main46217-10020-56iFJ62,HJ6#198708-199001

BROWN,TRIM1#,4#

46225ASPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)

main90501-10138iFJ62,HJ6#198810-199001

main90501-10745iFJ62,HJ6#198708-198810

46243COVER, PARKING BRAKE LEVER

main46243-60030-01iFJ62,HJ6#198708-199001

BLACK,BLACK,TRIM1#

main46243-60030-16iFJ62,HJ6#198708-199001

SEPIA BROWN,TRIM4#

46304EQUALIZER SUB-ASSY, PARKING BRAKE

main46341-31010×2iFJ62,HJ6#198708-199001

46304BBUSH(FOR PARKING BRAKE EQUALIZER)

main90385-12029×2iFJ62,HJ6#198708-199001

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-60101iFJ62,HJ6#..CBU198708-199001

main46410-60330iFJ62..IV4198708-199001

46410BGROMMET(FOR PARKING BRAKE FRONT CABLE)

main90480-17158iFJ62,HJ6#198708-199001

46420CPIN, W/HOLE(FOR PARKING BRAKE CABLE)

main90240-08042×2iFJ62,HJ6#198708-199001

46443CAP, CABLE ADJUSTING

main46443-12020iFJ62,HJ6#198708-199001

46451BRACKET, CABLE SUPPORT

main46451-60030iFJ62,HJ6#198708-199001

46452BRACKET, PARKING BRAKE CABLE SUPPORT, NO.2

main46452-60050iFJ62..IV4198708-199001

46456BRACKET, CABLE RETAINING

main46456-60050iFJ62..IV4198708-199001

46458RETAINER, CABLE

main46458-30020iFJ62,HJ6#198708-199001

46469LEVER, CABLE GUIDE SUPPORT

main46469-60020×2iFJ62,HJ6#198708-199001

9010908022

main90109-08022

9011908146

main90119-08146

9017908146

main90179-08146

9046110528

main90461-10528

9046803006

main90468-03006

9046814004

main90468-14004

9161140612

main91611-40612

9161160816

main91611-60816

9165140814

main91651-40814

9411040600

main94110-40600

9412040600

main94120-40600

26 parts on this diagram · 1 diagram in section
