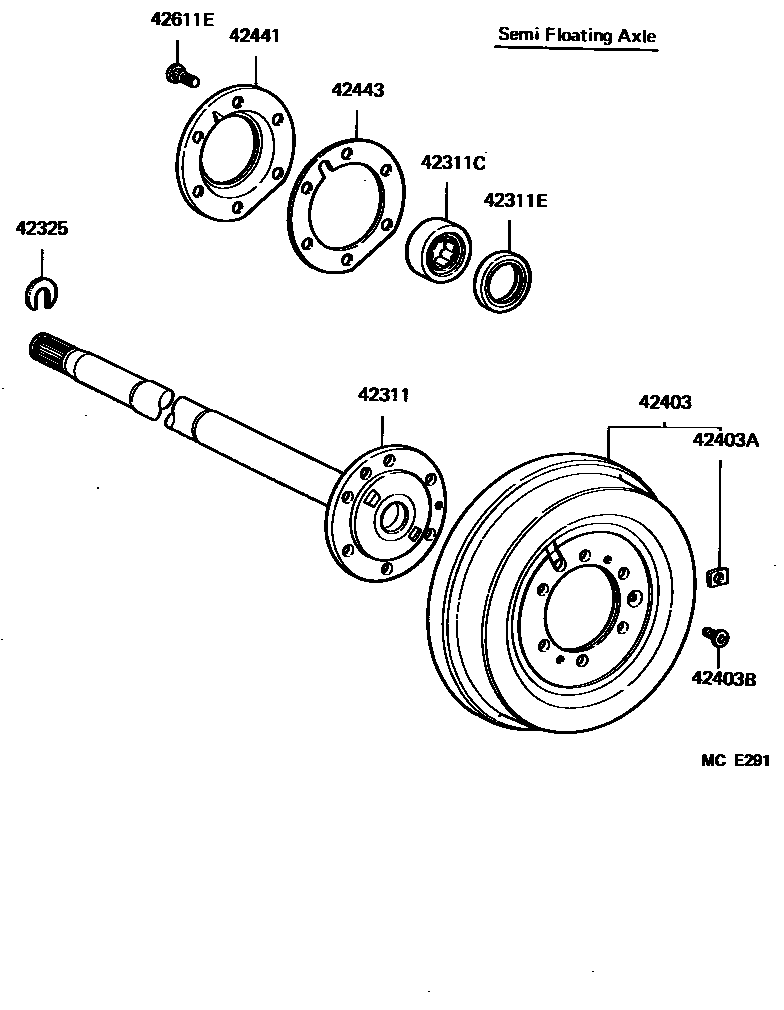

REAR AXLE SHAFT & HUB

0001 1 0002 1

42311SHAFT, REAR AXLE

main42311-60052iFJ62..CBR; FJ62..EFI; HJ60..ATM; HJ61;HJ60..MTM198708-199001

main42311-60060iFJ62,HJ6#..DSL,EFI,TD198708-198905

main42311-60061iFJ62,HJ6#..DSL,EFI,TD198905-199001

main42311-60080iFJ62..CBU..CBR; HJ60..MTM;FJ62,HJ61..VX198708-199001

main42312-60050iFJ62,HJ6#..DSL,EFI,TD198708-198905

main42312-60051iFJ62,HJ6#..DSL,EFI,TD198905-199001

main42312-60060iFJ62..CBR; FJ62..EFI; HJ60..ATM; HJ61;HJ60..MTM198708-199001

42311CBEARING(FOR REAR AXLE SHAFT)

main90365-47013×2iFJ62,HJ6#..DSL,EFI,TD198708-199001

42311ESEAL, OIL(FOR REAR AXLE SHAFT OUTER)

main90310-35001×2iFJ62..CBR; FJ62..EFI; HJ60..ATM; HJ61;HJ60..MTM198708-199001

main90311-47001×2iFJ62,HJ6#..DSL,EFI,TD198708-199001

42325LOCK, REAR AXLE SHAFT

main42325-55010×2iFJ62,HJ6#..DSL,EFI,TD198708-199001

42403DRUM SUB-ASSY, REAR BRAKE

main42431-60020×2iFJ62,HJ6#198708-199001

42403APIECE, BALANCE (FOR REAR BRAKE DRUM)

main90937-01117iFJ62,HJ6#198708-199001

main90937-01118iFJ62,HJ6#198708-199001

main90937-01119iFJ62,HJ6#198708-199001

main90937-01121iFJ62,HJ6#198708-199001

main90937-01122iFJ62,HJ6#198708-199001

main90937-01408iFJ62..GX;FJ62..IV4; HJ60..ATM; HJ60..MTM;FJ62,HJ61..VX199001-199001

main90937-01409iFJ62..GX;FJ62..IV4; HJ60..ATM; HJ60..MTM;FJ62,HJ61..VX199001-199001

main90937-01410iFJ62..GX;FJ62..IV4; HJ60..ATM; HJ60..MTM;FJ62,HJ61..VX199001-199001

main90937-01411iFJ62..GX;FJ62..IV4; HJ60..ATM; HJ60..MTM;FJ62,HJ61..VX199001-199001

main90937-01412iFJ62..GX;FJ62..IV4; HJ60..ATM; HJ60..MTM;FJ62,HJ61..VX199001-199001

main90937-01413iFJ62..GX;FJ62..IV4; HJ60..ATM; HJ60..MTM;FJ62,HJ61..VX199001-199001

main90937-01414iFJ62..GX;FJ62..IV4; HJ60..ATM; HJ60..MTM;FJ62,HJ61..VX199001-199001

main90937-01415iFJ62..GX;FJ62..IV4; HJ60..ATM; HJ60..MTM;FJ62,HJ61..VX199001-199001

main90937-01416iFJ62..GX;FJ62..IV4; HJ60..ATM; HJ60..MTM;FJ62,HJ61..VX199001-199001

main90937-01417iFJ62..GX;FJ62..IV4; HJ60..ATM; HJ60..MTM;FJ62,HJ61..VX199001-199001

main90937-01418iFJ62..GX;FJ62..IV4; HJ60..ATM; HJ60..MTM;FJ62,HJ61..VX199001-199001

main90937-01419iFJ62..GX;FJ62..IV4; HJ60..ATM; HJ60..MTM;FJ62,HJ61..VX199001-199001

42403BBOLT, SET (FOR REAR BRAKE DRUM SETTING)

main90113-10003×2iFJ62,HJ6#198708-199001

42441DEFLECTOR, BRAKE DRUM OIL

main42441-30010×2iFJ62,HJ6#..DSL,EFI,TD198708-199001

42443GASKET, BRAKE DRUM OIL DEFLECTOR

main42443-55020×2iFJ62,HJ6#..DSL,EFI,TD198708-199001

42611EBOLT, HUB (FOR REAR AXLE)

main90942-02052×6iFJ62,HJ6#198708-199001

10 parts on this diagram · 2 diagrams in section
