TRANSFER ASSEMBLY & GASKET KIT

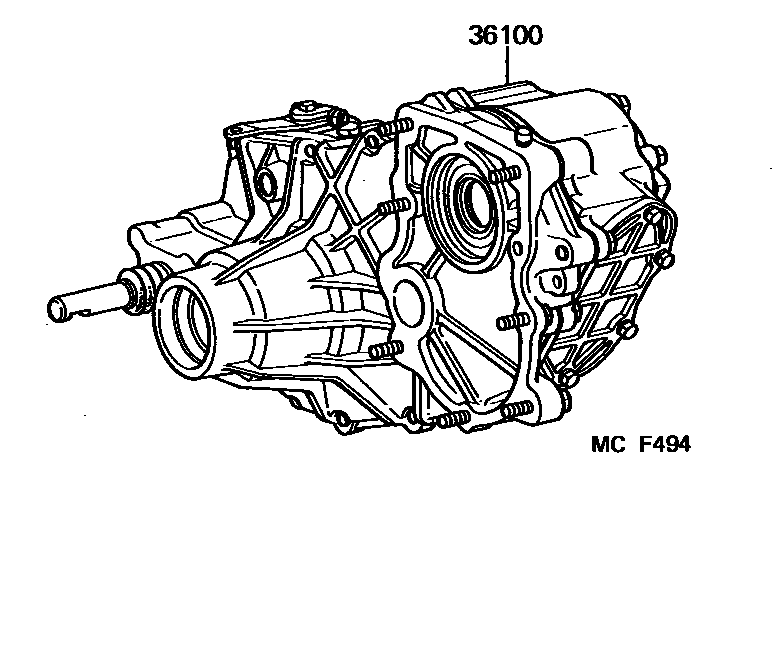

Parts diagram

36100TRANSFER ASSY

main36100-6A820i198708-198801

main36100-6A821i198801-199001

main36110-6A410i198808-199001

main36110-6A480i198708-198801

main36110-6A481i198801-199001

main36110-6A490i198708-199001

main36110-6A570i198708-198801

main36110-6A571i198801-199001

main36110-6A580i198708-198801

main36110-6A581i198801-199001

main36110-6A610i198708-198801

main36110-6A611i198801-199001

main36110-6A780i198708-198801

main36110-6A781i198801-199001

main36110-6A790i198708-199001

main36110-6A840i198708-198801

main36110-6A841i198801-199001

main36110-6A880i198708-198801

main36110-6A881i198801-199001

1 parts on this diagram · 1 diagram in section
