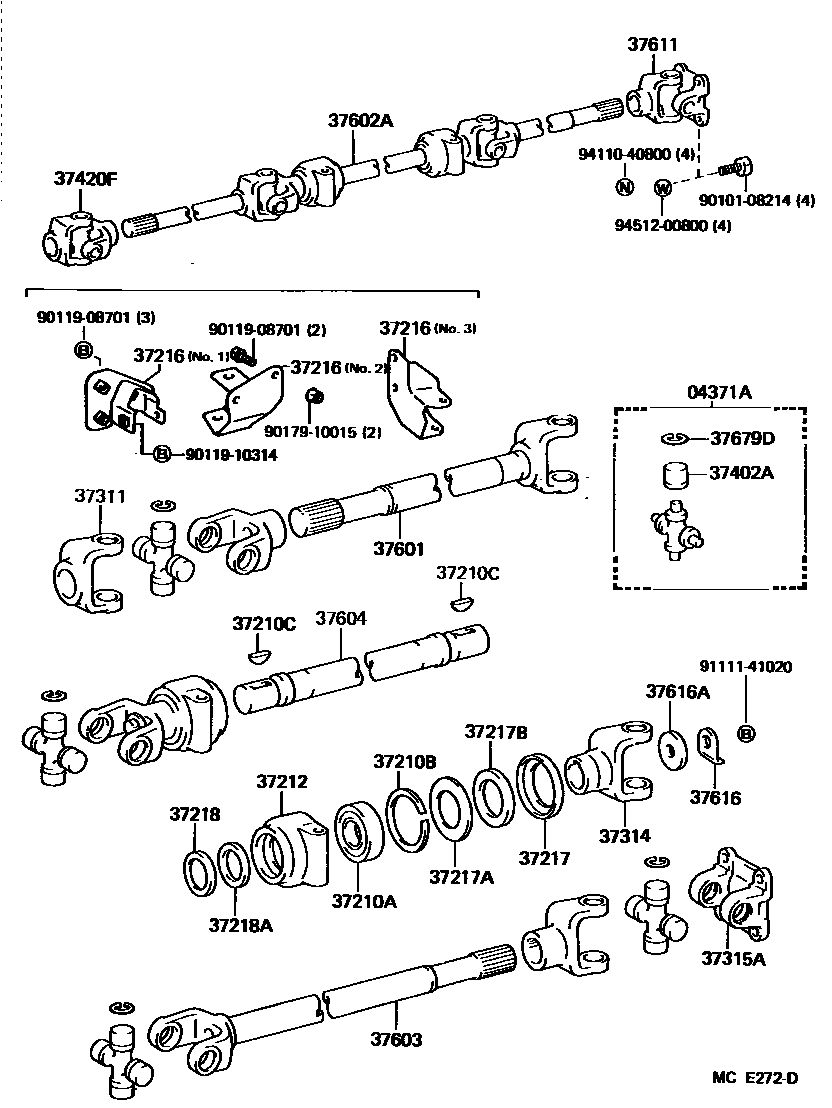

DRIVE SHAFT

04371ASPIDER KIT, UNIVERSAL JOINT(FOR WINCH DRIVE SHAFT)

main04371-10011×4iFJ62,HJ6#..CBU..(CBR,DSL,TD)198708-199001

37210ABEARING (FOR PILLOW BLOCK)

main90363-25039×2iFJ62,HJ6#..CBU..(CBR,DSL,TD)198708-199001

37210BRING, HOLE SNAP (FOR PILLOW BLOCK BEARING)

main90521-55007×2iFJ62,HJ6#..CBU..(CBR,DSL,TD)198708-199001

37210CKEY, WOODRUFF (FOR PILLOW BLOCK)

main90280-05001×2iFJ62,HJ6#..CBU..(CBR,DSL,TD)198708-199001

37212BODY, PILLOW BLOCK, NO.2

main37212-60020×2iFJ62,HJ6#..CBU..(CBR,DSL,TD)198708-199001

37216BRACKET, PILLOW BLOCK

main37216-60110iFJ62..CBU..CBR198708-199001

main37216-60150iHJ6#..ATM; HJ6#..MTM198708-199001

main37216-60160iFJ62,HJ6#..MTM..CBU; HJ6#..ATM198708-199001

37217RETAINER, DUST SEAL, NO.1

main37217-60010×2iFJ62,HJ6#..CBU..(CBR,DSL,TD)198708-199001

37217AWASHER, PLATE (FOR PILLOW BLOCK RETAINER)

main90201-37068×2iFJ62,HJ6#..CBU..(CBR,DSL,TD)198708-199001

37217BSEAL, DUST (FOR PILLOW BLOCK RETAINER)

main90303-37008×2iFJ62,HJ6#..CBU..(CBR,DSL,TD)198708-199001

37218RETAINER, DUST SEAL, NO.2

main37218-60020×2iFJ62,HJ6#..CBU..(CBR,DSL,TD)198708-199001

37218ASEAL, DUST (FOR NO.2 PILLOW BLOCK RETAINER)

main90303-30025×2iFJ62,HJ6#..CBU..(CBR,DSL,TD)198708-199001

37311YOKE, UNIVERSAL JOINT, NO.1 (FOR WINCH DRIVE SHAFT)

main37311-60041iFJ62,HJ6#..CBU..(CBR,DSL,TD)198708-199001

37314YOKE, UNIVERSAL JOINT SLEEVE

main37314-60010×2iFJ62,HJ6#..CBU..(CBR,DSL,TD)198708-199001

37315AYOKE, UNIVERSAL JOINT FLANGE (FOR WINCH DRIVE SHAFT)

main37315-60040iFJ62,HJ6#..CBU..(CBR,DSL,TD)198708-199001

37402ABEARING SUB-ASSY, UNIVERSAL JOINT SPIDER (FOR WINCH)

main37402-10020×4iFJ62,HJ6#..CBU..(CBR,DSL,TD)198708-199001

37420FJOINT ASSY, UNIVERSAL, W/FLANGE YOKE

main37420-60031iFJ62,HJ6#..CBU..(CBR,DSL,TD)198708-199001

37601SHAFT SUB-ASSY, DRIVE, FRONT NO.1

main37601-60090iFJ62,HJ6#..CBU..(CBR,DSL,TD)198708-199001

37602ASHAFT SUB-ASSY, W/YOKE DRIVE, FRONT

main37602-60210iFJ62,HJ6#..MTM..CBU198708-199001

main37602-60220iHJ6#..ATM198708-199001

37603SHAFT SUB-ASSY, DRIVE, FRONT NO.3

main37603-60100iFJ62,HJ6#..MTM..CBU198708-199001

main37603-60110iHJ6#..ATM198708-199001

37604SHAFT SUB-ASSY, DRIVE, FRONT NO.2

main37604-60140iFJ62,HJ6#..CBU..(CBR,DSL,TD)198708-199001

37611JOINT ASSY, UNIVERSAL, W/YOKE (FOR WINCH)

main37410-60060iFJ62,HJ6#..CBU..(CBR,DSL,TD)198708-199001

37616PLATE, DRIVE SHAFT LOCK

main37616-60010×2iFJ62,HJ6#..CBU..(CBR,DSL,TD)198708-199001

37616AWASHER (FOR DRIVE SHAFT LOCK PLATE)

main90201-12169×2iFJ62,HJ6#..CBU..(CBR,DSL,TD)198708-199001

37679DRING, HOLE SNAP (FOR WINCH DRIVE SHAFT)

main90521-22011iFJ62,HJ6#..CBU..(CBR,DSL,TD)198708-199001

main90521-22012iFJ62,HJ6#..CBU..(CBR,DSL,TD)198708-199001

main90521-22013iFJ62,HJ6#..CBU..(CBR,DSL,TD)198708-199001

9010108214

main90101-08214

9011908701

main90119-08701

9011910314

main90119-10314

9017910015

main90179-10015

9111141020

main91111-41020

9411040800

main94110-40800

9451200800

main94512-00800

31 parts on this diagram · 1 diagram in section
