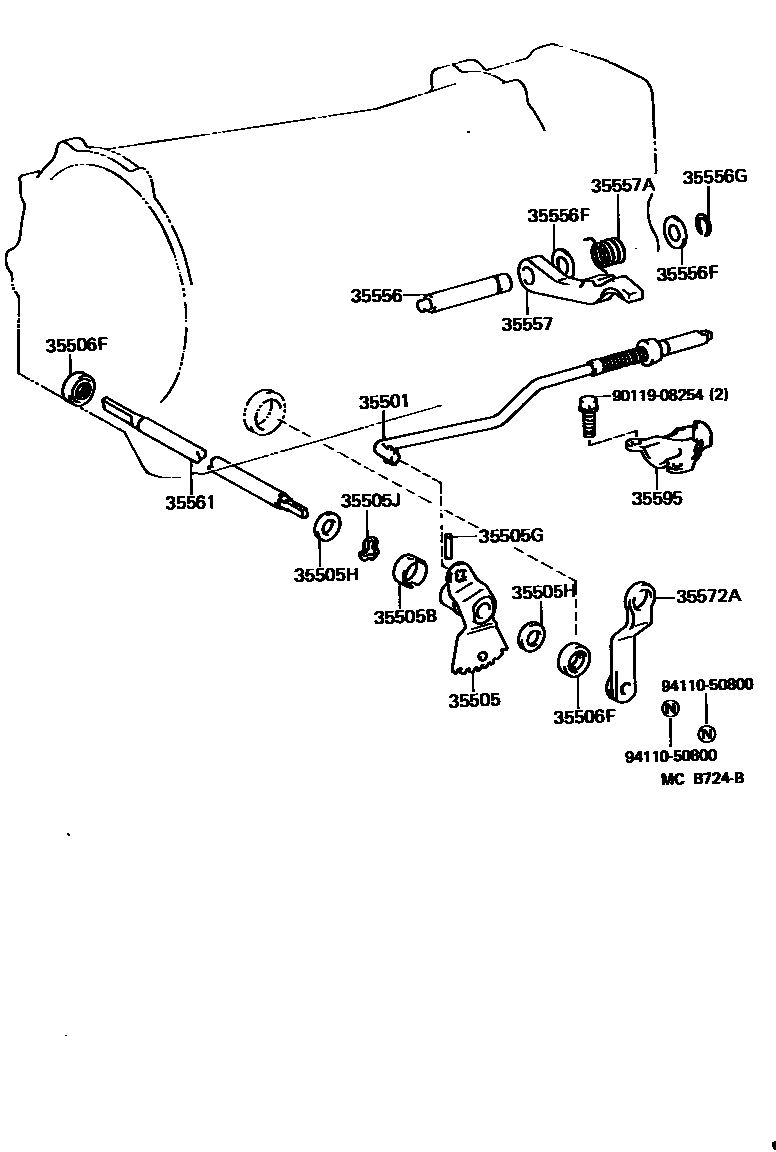

THROTTLE LINK & VALVE LEVER (ATM)

0001 1 0002 1

35501ROD SUB-ASSY, PARKING LOCK

main35501-36010iFJ62,HJ6#..ATM198708-199001

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-36010iHJ6#..ATM198708-198709

main35505-36020iFJ62,HJ6#..ATM198709-199001

35505BSPACER (FOR MANUAL VALVE LEVER)

main90560-20008iFJ62,HJ6#..ATM198708-199001

35505GPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER)

main90254-04012iFJ62,HJ6#..ATM198708-199001

35505HWASHER, PLATE (FOR MANUAL VALVE LEVER)

main90201-12042×2iFJ62,HJ6#..ATM198708-198909

35505JWASHER, WAVE (FOR MANUAL VALVE LEVER)

main90206-12001iFJ62,HJ6#..ATM198708-198909

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-12002×2iFJ62,HJ6#..ATM198708-199001

35556SHAFT, PARKING LOCK PAWL

main35556-60010iFJ62,HJ6#..ATM198708-199001

35556FWASHER, PLATE (FOR PARKING LOCK PAWL SHAFT)

main90201-16012×2iFJ62,HJ6#..ATM198708-199001

35556GRING, SNAP (FOR PARKING LOCK PAWL SHAFT)

main96150-01600iFJ62,HJ6#..ATM198708-199001

35557PAWL, PARKING LOCK

main35557-36010iFJ62,HJ6#..ATM198708-199001

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90508-30004iFJ62,HJ6#..ATM198708-199001

35561SHAFT, MANUAL VALVE LEVER

main35561-60010iFJ62,HJ6#..ATM198708-199001

35572ALEVER, TRANSMISSION CONTROL SHAFT

main35572-60020iFJ62..EFI198808-199001

main35572-60030iHJ6#..ATM198708-199001

35595BRACKET, PARKING LOCK PAWL

main35595-36010iFJ62,HJ6#..ATM198708-199001

9011908254

main90119-08254

9411050800

main94110-50800

17 parts on this diagram · 2 diagrams in section
