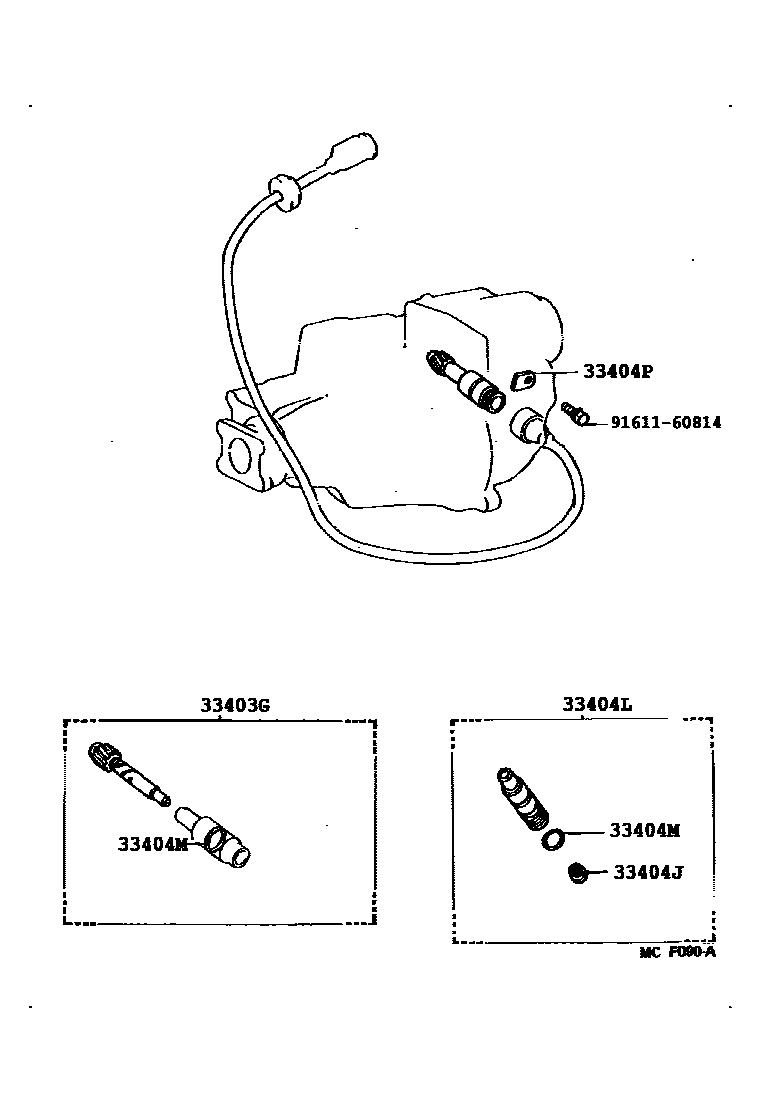

SPEEDOMETER DRIVEN GEAR (ATM)

33403GGEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)

main33403-29235iHJ60..ATM198708-199001

main33403-69175iFJ62,HJ61..ATM198708-199001

33404JSEAL, OIL (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90310-09001iFJ62,HJ6#..ATM198708-199001

33404LSLEEVE SUB-ASSY, SPEEDOMETER SHAFT (FOR ATM)

main33404-30040iFJ62,HJ6#..ATM198708-199001

33404MRING, O(FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90301-18004iFJ62,HJ6#..ATM198708-199001

33404PPLATE, SPEEDOMETER SLEEVE LOCK (FOR ATM)

main33485-30020iFJ62,HJ6#..ATM198708-199001

9161160814

main91611-60814

6 parts on this diagram · 1 diagram in section
