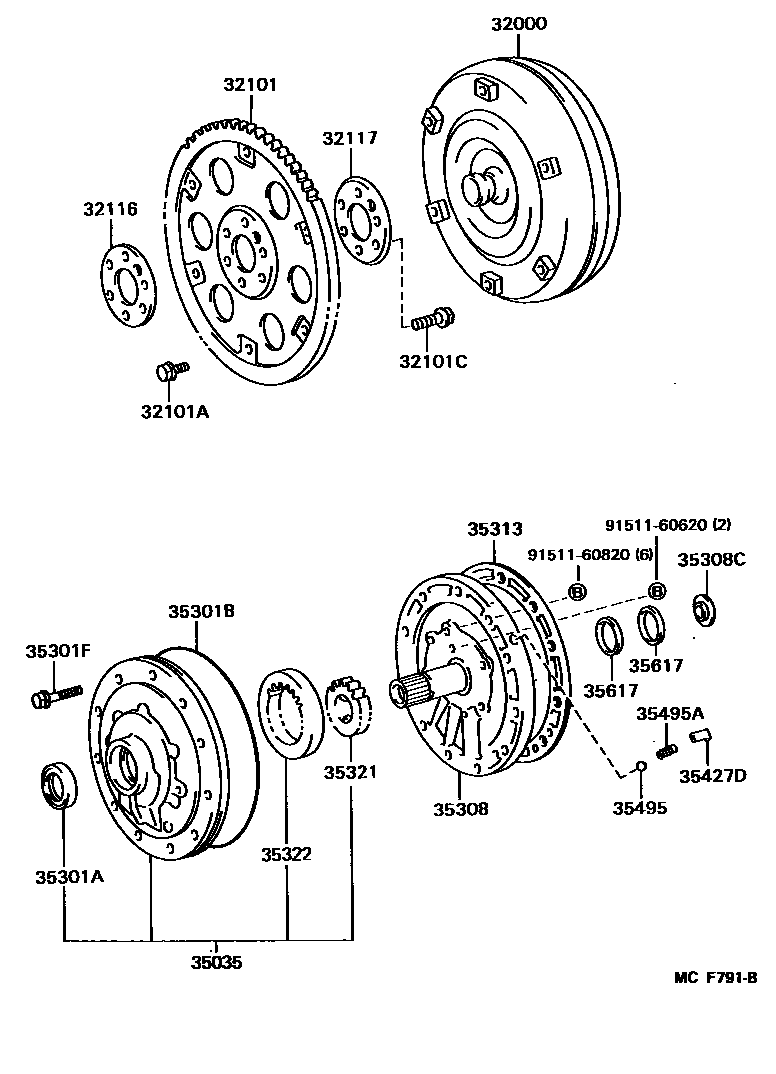

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)
32000CONVERTER ASSY, TORQUE
32101GEAR SUB-ASSY, DRIVE PLATE & RING
32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)
32116SPACER, DRIVE PLATE, FRONT
32117SPACER, DRIVE PLATE, REAR
35035BODY SUB-ASSY, FR OIL PUMP & GEAR
35301ASEAL, OIL (FOR FRONT OIL PUMP)
35301BRING, O (FOR FRONT OIL PUMP BODY)
35301FBOLT (FOR FRONT OIL PUMP SETTING)
35308COVER SUB-ASSY, FRONT OIL PUMP
35308CRACE, THRUST BEARING (FOR FRONT OIL PUMP COVER)
35313GASKET, FRONT OIL PUMP COVER
35321GEAR, FRONT OIL PUMP DRIVE
35322GEAR, FRONT OIL PUMP DRIVEN
35427DSEAT, CHECK VALVE SPRING
35495BALL, CHECK
35495ASPRING, COMPRESSION (FOR CHECK BALL)
35617RING, CLUTCH DRUM OIL SEAL
9151160620
main91511-60620
9151160820
main91511-60820
21 parts on this diagram · 1 diagram in section
