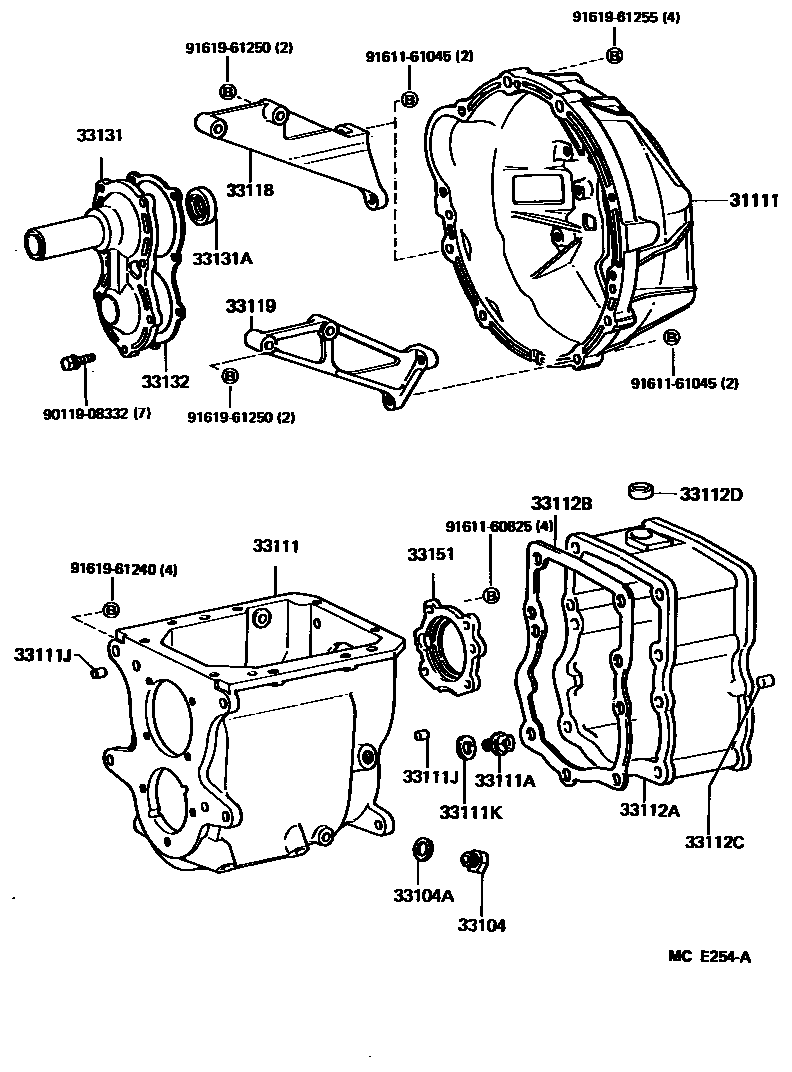

CLUTCH HOUSING & TRANSMISSION CASE (MTM)
33104PLUG SUB-ASSY, DRAIN(MTM)
33104AGASKET, DRAIN PLUG(MTM)
33111CASE, MANUAL TRANSMISSION
33111APLUG, MANUAL TRANSMISSION CASE
33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
33111KGASKET(FOR TRANSMISSION CASE)
33112AADAPTER, TRANSFER
33112BGASKET, TRANSFER ADAPTER
33112CPIN, STRAIGHT(FOR TRANSFER ADAPTER)
33112DSEAL, OIL(FOR TRANSFER ADAPTER)
33118PLATE, STIFFENER, RH(MTM)
33119PLATE, STIFFENER, LH(MTM)
33131RETAINER, BEARING, FRONT(MTM)
33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)
33132GASKET, FRONT BEARING RETAINER(MTM)
33151RETAINER, OUTPUT SHAFT REAR BEARING(MTM)
9011908332
main90119-08332
9161160825
main91611-60825
9161161045
main91611-61045
9161961240
main91619-61240
9161961250
main91619-61250
9161961255
main91619-61255
23 parts on this diagram · 2 diagrams in section
