TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

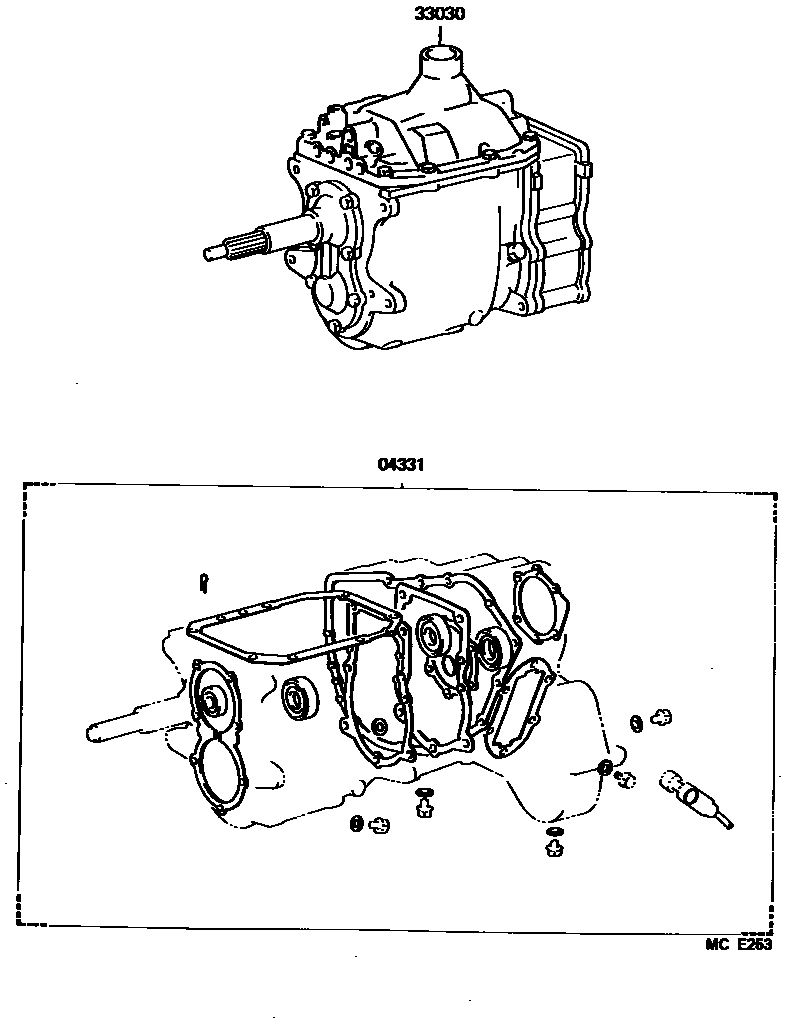

Parts diagram

04331GASKET KIT, MANUAL TRANSMISSION OVERHAUL

main04331-60160i198708-199001

33030TRANSMISSION UNIT ASSY, MANUAL

main33030-60430i198708-198801

main33030-60431i198801-199001

main33030-60450i198708-198801

main33030-60451i198801-199001

main33030-60511i198708-198801

main33030-60512i198801-199001

main33030-60660i198708-198801

main33030-60661i198801-199001

2 parts on this diagram · 1 diagram in section
