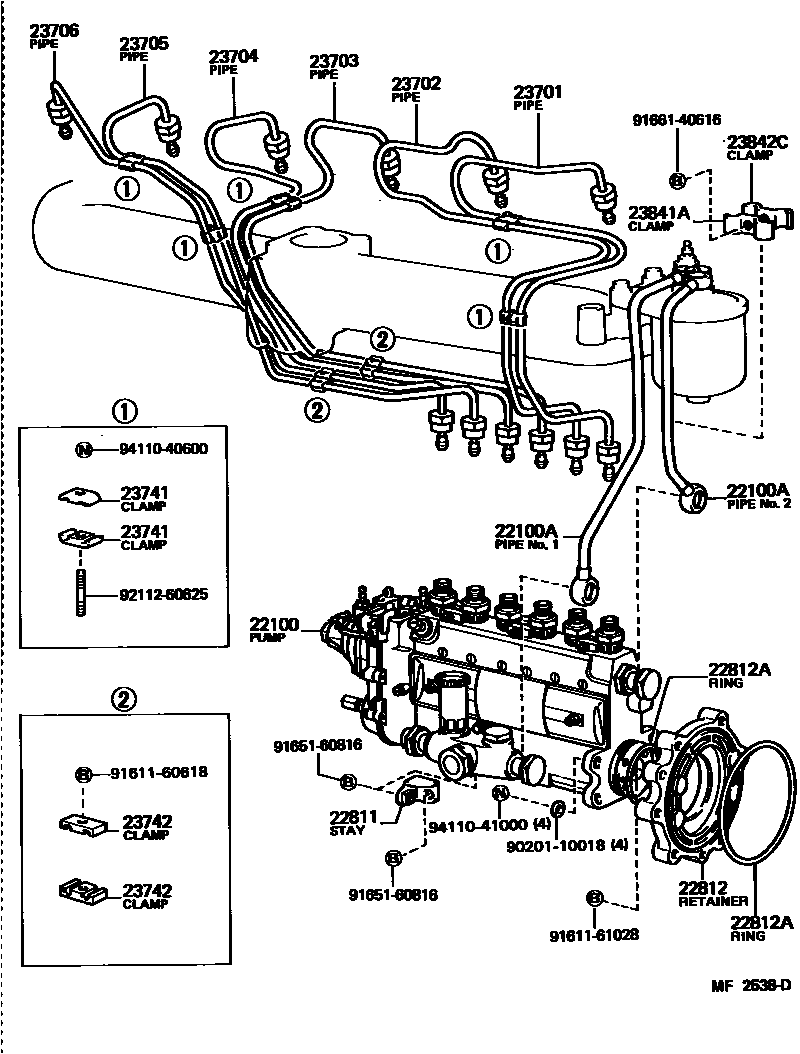

INJECTION PUMP ASSEMBLY
22100PUMP ASSY, INJECTION OR SUPPLY
22100AHOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)
22811STAY, INJECTION PUMP, NO.1
22812RETAINER, INJECTION PUMP
22812ARING, O
ID=64.5,PUMP SIDE
ID=74.5,PUMP SIDE
ID=129.4,CASE SIDE
23701PIPE SUB-ASSY, INJECTION, NO.1
23702PIPE SUB-ASSY, INJECTION, NO.2
23703PIPE SUB-ASSY, INJECTION, NO.3
23704PIPE SUB-ASSY, INJECTION, NO.4
23705PIPE SUB-ASSY, INJECTION, NO.5
23706PIPE SUB-ASSY, INJECTION, NO.6
23741CLAMP, INJECTION PIPE, NO.1
23742CLAMP, INJECTION PIPE, NO.2
23841ACLAMP, FUEL PIPE, NO.1(FOR INJECTION PUMP)
23842CCLAMP, FUEL PIPE, NO.2(FOR INJECTION PUMP)
9020110018
main90201-10018
9161160618
main91611-60618
9161161028
main91611-61028
9165160816
main91651-60816
9166140616
main91661-40616
9211260625
main92112-60625
9411040600
main94110-40600
9411041000
main94110-41000
23 parts on this diagram · 2 diagrams in section
