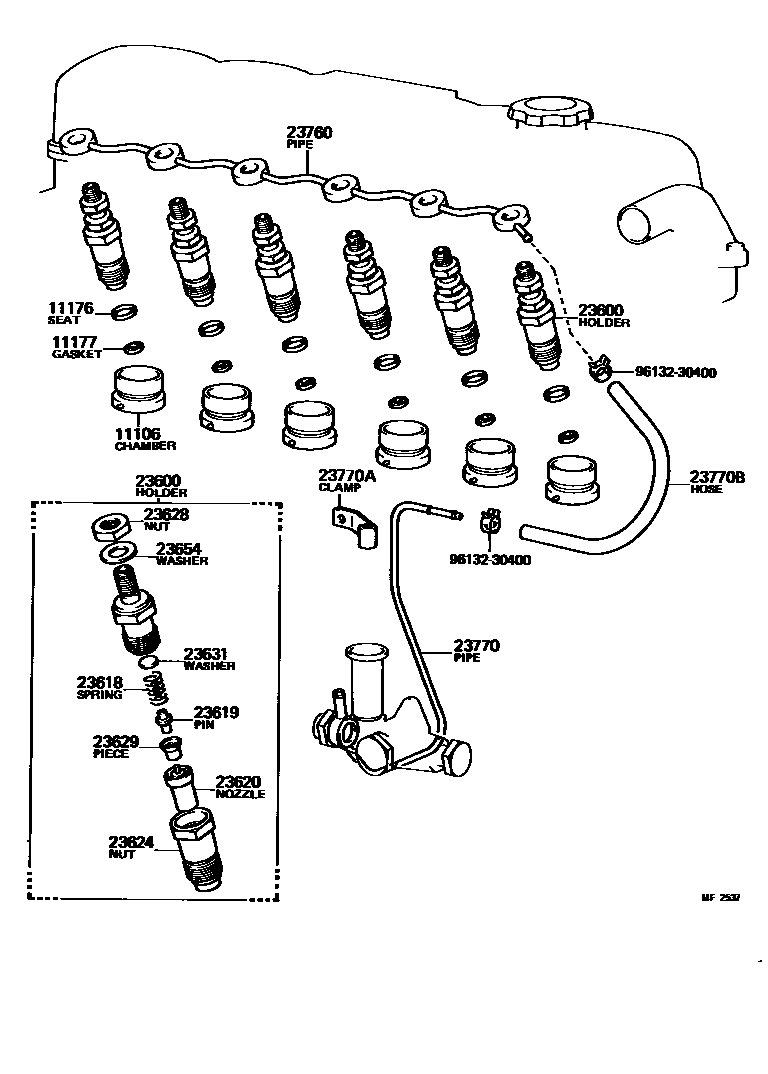

INJECTION NOZZLE
11106CHAMBER SUB-ASSY, COMBUSTION
11176SEAT, INJECTION NOZZLE
11177GASKET, INJECTION NOZZLE SEAT
23600HOLDER & NOZZLE SET, NOZZLE
23618SPRING, NOZZLE HOLDER PRESSURE
23619PIN, NOZZLE HOLDER PRESSURE
23628NUT(FOR RING PACKING SETTING)
23629PIECE, DISTANCE(FOR NOZZLE)
23631WASHER(FOR NOZZLE HOLDER PRESSURE SPRING)
23654WASHER(FOR RING PACKING)
23760PIPE ASSY, NOZZLE LEAKAGE
23770PIPE ASSY, NOZZLE LEAKAGE, NO.2
23770ACLAMP OR CLIP(FOR NOZZLE LEAKAGE PIPE SET)
23770BHOSE, FUEL
9613230400
main96132-30400
17 parts on this diagram · 2 diagrams in section
