IGNITION COIL & SPARK PLUG / GLOW PLUG

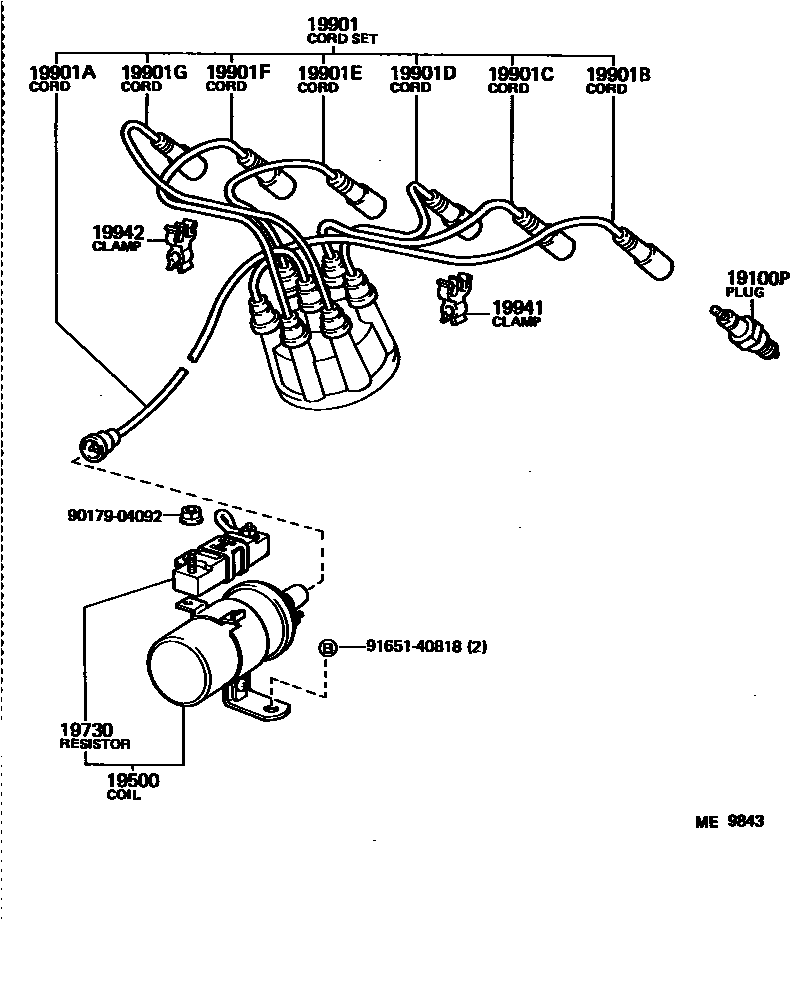

Parts diagram

19100PPLUG, SPARK

main90919-01056i198708-199001

main90919-01064i198808-199001

main90919-01102i198808-199001

19500COIL ASSY, IGNITION

main90919-02087i198708-199001

main90919-02113i198808-199001

19730RESISTOR, IGNITION COIL

main90919-04033i198708-199001

19901CORD SET, COIL & SPARK, W/RESISTIVE

main90919-21367i198708-199001

main90919-21410i198808-199001

19901ACORD, COIL RESISTIVE

main90919-13246i198708-199001

main90919-13271i198808-198809

main90919-13328i198809-199001

19901BCORD, SPARK PLUG RESISTIVE, NO.1

main90919-12169i198708-199001

main90919-12747i198808-198809

main90919-12951i198809-199001

19901CCORD, SPARK PLUG RESISTIVE, NO.2

main90919-12168i198708-199001

main90919-12748i198808-198809

main90919-12952i198809-199001

19901DCORD, SPARK PLUG RESISTIVE, NO.3

main90919-12167i198708-199001

main90919-12745i198808-198809

main90919-12949i198809-199001

19901ECORD, SPARK PLUG RESISTIVE, NO.4

main90919-12167i198708-199001

main90919-12746i198808-198809

main90919-12953i198809-199001

19901FCORD, SPARK PLUG RESISTIVE, NO.5

main90919-12168i198708-199001

main90919-12749i198808-198809

main90919-12954i198809-199001

19901GCORD, SPARK PLUG RESISTIVE, NO.6

main90919-12169i198708-199001

main90919-12750i198808-198809

main90919-12950i198809-199001

19941CLAMP, RESISTIVE CORD, NO.1

main90464-00093i198708-199001

main90464-00105i198808-199001

19942CLAMP, RESISTIVE CORD, NO.2

main90464-00105i198708-199001

main90464-00208i198808-199001

9017904092

main90179-04092

9165140818

main91651-40818

15 parts on this diagram · 4 diagrams in section
