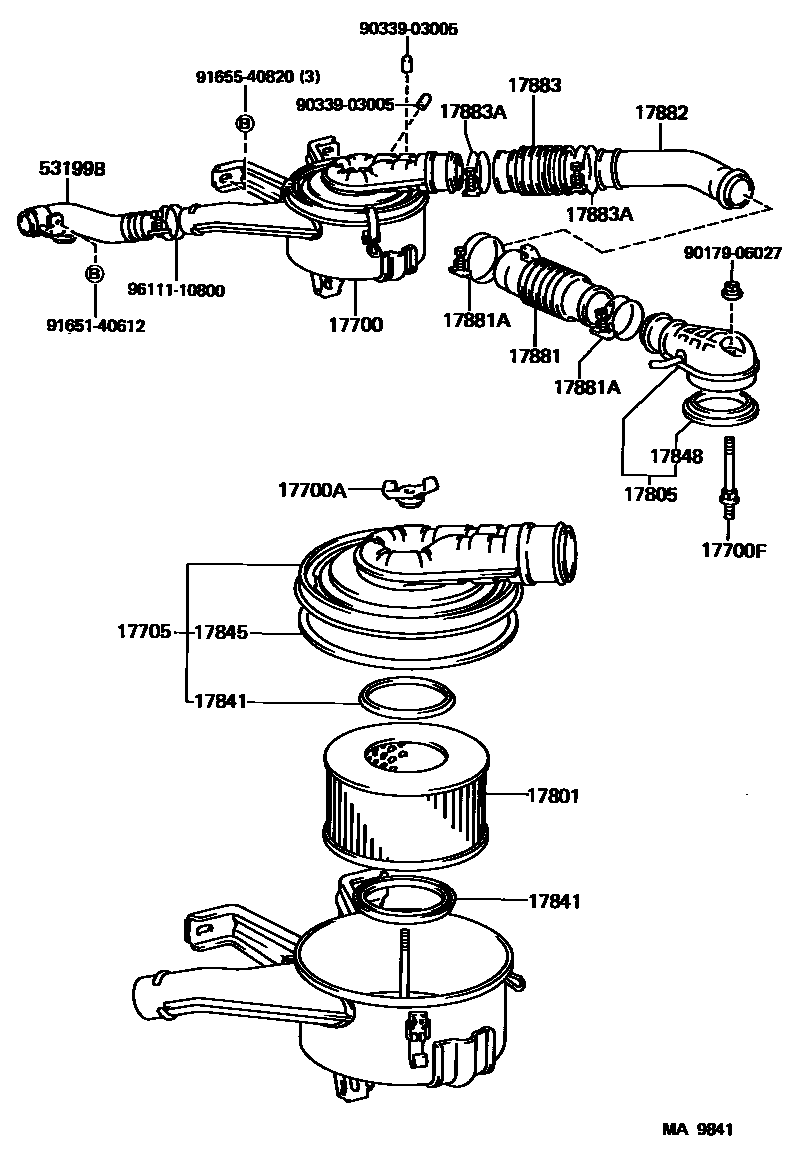

AIR CLEANER
17700CLEANER ASSY, AIR
17700ANUT, WING(FOR AIR CLEANER)
17700FBOLT, STUD(FOR AIR CLEANER SETTING)
17705CAP SUB-ASSY, AIR CLEANER
17801ELEMENT SUB-ASSY, AIR CLEANER FILTER
17805CONNECTOR SUB-ASSY, INTAKE AIR
17841GASKET, FILTER ELEMENT
17845GASKET, AIR CLEANER CAP
17848GASKET, AIR CLEANER TO CARBURETOR
17881HOSE, AIR CLEANER, NO.1
17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)
RESONATOR SIDE
VENTURI SIDE
AIR CLEANER SIDE
PIPE SIDE
17882HOSE, AIR CLEANER, NO.2
17883HOSE, AIR CLEANER, NO.3
17883ACLAMP(FOR AIR CLEANER HOSE, NO.3)
AIR CLEANER SIDE,AIR CLEANER SIDE
HOSE SIDE,HOSE SIDE
53199BDUCT SUB-ASSY, COOL AIR INTAKE
9017906027
main90179-06027
9033903005
main90339-03005
9165140612
main91651-40612
9165540820
main91655-40820
9611110800
main96111-10800
20 parts on this diagram · 5 diagrams in section
