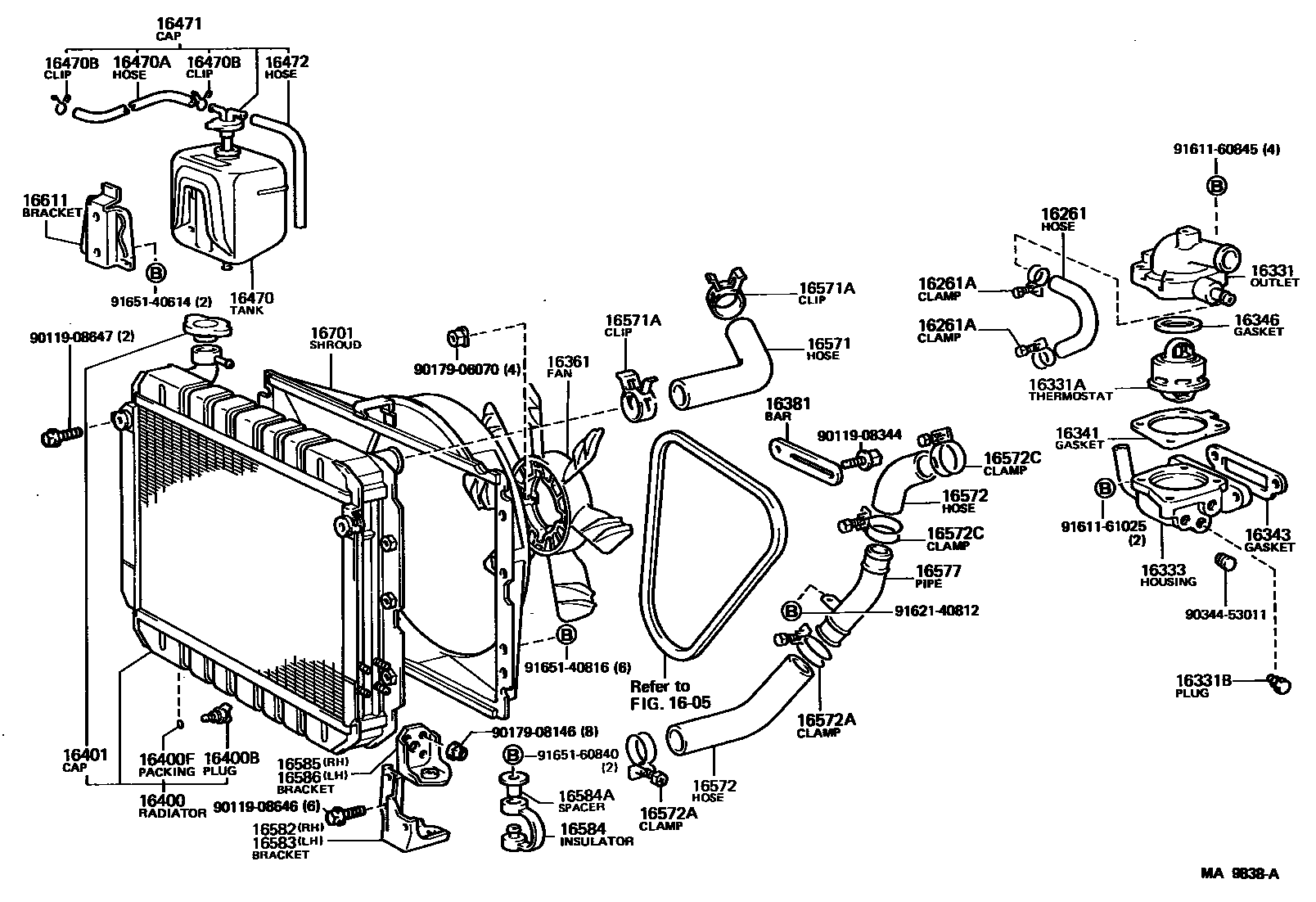

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1 0005 1

1605

16261HOSE, WATER BY-PASS

main16261-61020i3F#..FJ62198708-199001

main99555-40090i12HT,2H..HJ6#198708-199001

16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

main96111-10330i12HT,2H..HJ6#198708-199001

main96112-10250i3F#..FJ62198708-199001

16331OUTLET, WATER

main16303-61010i3F..FJ62198708-199001

main16303-61020i3FE..FJ62198808-199001

main16331-68011i12HT,2H..HJ6#198708-199001

16331ATHERMOSTAT

main90916-03052i3F#..FJ62198805-199001

main90916-03059i12HT,2H..HJ6#198708-199001

sub90916-03080

main90916-03071i3F..FJ62198708-198805

sub90916-03052

16331BPLUG(FOR WATER OUTLET)

main90341-16094i3F..FJ62198708-199001

16333HOUSING, WATER OUTLET

main16304-61020i3F..FJ62198708-199001

main16304-61030i3FE..FJ62198808-199001

main16333-68010i12HT,2H..HJ6#198708-199001

16341GASKET, WATER OUTLET

main16341-61020i3F#..FJ62198708-199001

sub16341-61030

main16341-68010i12HT,2H..HJ6#198708-199001

sub16341-68020

16343GASKET, WATER OUTLET HOUSING

main16343-61010i3F#..FJ62198708-199001

sub16343-61020

main16343-68010i12HT,2H..HJ6#198708-199001

sub16343-68020

16346GASKET, THERMOSTAT

main90430-43002i3F#..FJ62198708-199001

16361FAN

main16361-61020i3F#..FJ62198708-199001

main16361-68010i12HT,2H..HJ6#198708-199001

16381BAR, FAN BELT ADJUSTING

main16381-61020i3F..FJ62198708-199001

main16381-61050i3FE..FJ62198808-199001

main16381-68010i12HT,2H..HJ6#198708-199001

main16381-68030i12HT,2H..HJ6#198708-198808

main16381-68030i12HT,2H..HJ6#198808-199001

16400RADIATOR ASSY

main16400-61110i3F..FJ62198708-199001

main16400-61140i3FE..FJ62198808-199001

main16400-68090i12HT,2H..HJ6#..ATM198708-199001

main16400-68100i12HT..HJ61..MTM198708-199001

sub16400-68160

main16400-68160i2H..HJ60..MTM198708-199001

16400BPLUG, RADIATOR DRAIN COCK

main16417-24200i3F#..FJ62198708-199001

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16418-24200i3F#..FJ62198708-199001

16401CAP SUB-ASSY, RADIATOR

main16401-71010i3F#..FJ62198708-199001

sub16401-54750

16470TANK ASSY, RADIATOR RESERVE

main16480-90A00i3F#..FJ62198708-199001

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main90099-33534i3FE..FJ62198808-199001

main90445-12043i12HT,2H..HJ6#198708-199001

sub90445-12078

main90445-12065i3F..FJ62..CBU198708-199001

sub90445-12078

main90445-12078i3FE..FJ62198808-199001

main90445-12449i3F..FJ62..IV4198708-199001

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i12HT,2H..HJ6#198708-199001

16471CAP SUB-ASSY, RESERVE TANK

main16405-61030i3FE..FJ62198808-199001

main16405-90A00i3F..FJ62..CBU198708-199001

sub16405-90A03

main16405-90A02i12HT,2H..HJ6#198708-199001

sub16405-90A04

main16405-90A03i3F..FJ62..IV4198708-199001

16472HOSE, BREATHER

main85338-22020i12HT,2H..HJ6#198708-199001

16571HOSE, RADIATOR, INLET

main16571-61110i3F#..FJ62198708-199001

main16571-68010i12HT,2H..HJ6#198708-199001

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-42001i3F#..FJ62198708-199001

sub90467-41002

16572HOSE, RADIATOR, OUTLET

main16552-61010i3F..FJ62..IV4198708-199001

main16572-61020i3F#..FJ62..CBU198708-199001

WATER PUMP SIDE

main16572-68010i12HT,2H..HJ6#198708-199001

main16573-61040i3F#..FJ62..CBU198708-199001

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main96111-10500i3F#..FJ62..CBU198708-199001

main96111-10510i12HT,2H..HJ6#198708-199001

ID=51

main96111-10510i3F..FJ62..CBU198708-198803

main96111-10560i12HT,2H..HJ6#198708-199001

ID=56

16572CCLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.2)

main96111-10500i3F#..FJ62..CBU198803-199001

main96111-10510i3F..FJ62..CBU198708-198803

16577PIPE, RADIATOR, NO.7

main16577-61130i3F#..FJ62..CBU198708-199001

16582BRACKET, RADIATOR, NO.1

main16582-61010i12HT,2H..HJ6#198708-199001

16583BRACKET, RADIATOR, NO.2

main16583-61010i3F#..FJ62198708-199001

16584INSULATOR, RADIATOR MOUNTING

main16584-61010i3F#..FJ62198708-199001

16584ASPACER, RADIATOR MOUNTING INSULATOR

main90561-09005i3F#..FJ62198708-199001

16585BRACKET, RADIATOR, NO.3

main16585-61010i12HT,2H..HJ6#198708-199001

16586BRACKET, RADIATOR, NO.4

main16586-61010i3F#..FJ62198708-199001

16611BRACKET, RADIATOR RESERVE TANK

main16611-61020i3F#..FJ62..CBU198708-199001

16701SHROUD SUB-ASSY, FAN

main16711-61240i3F..FJ62198708-198808

sub16711-61241

main16711-61241i3F#..FJ62198808-199001

main16711-68010i12HT,2H..HJ6#198708-199001

9011908344

main90119-08344

9011908646

main90119-08646

9011908647

main90119-08647

9017906070

main90179-06070

9017908146

main90179-08146

9034453011

main90344-53011

9161160845

main91611-60845

9161161025

main91611-61025

9162140812

main91621-40812

9165140614

main91651-40614

9165140816

main91651-40816

9165160840

main91651-60840

47 parts on this diagram · 5 diagrams in section
