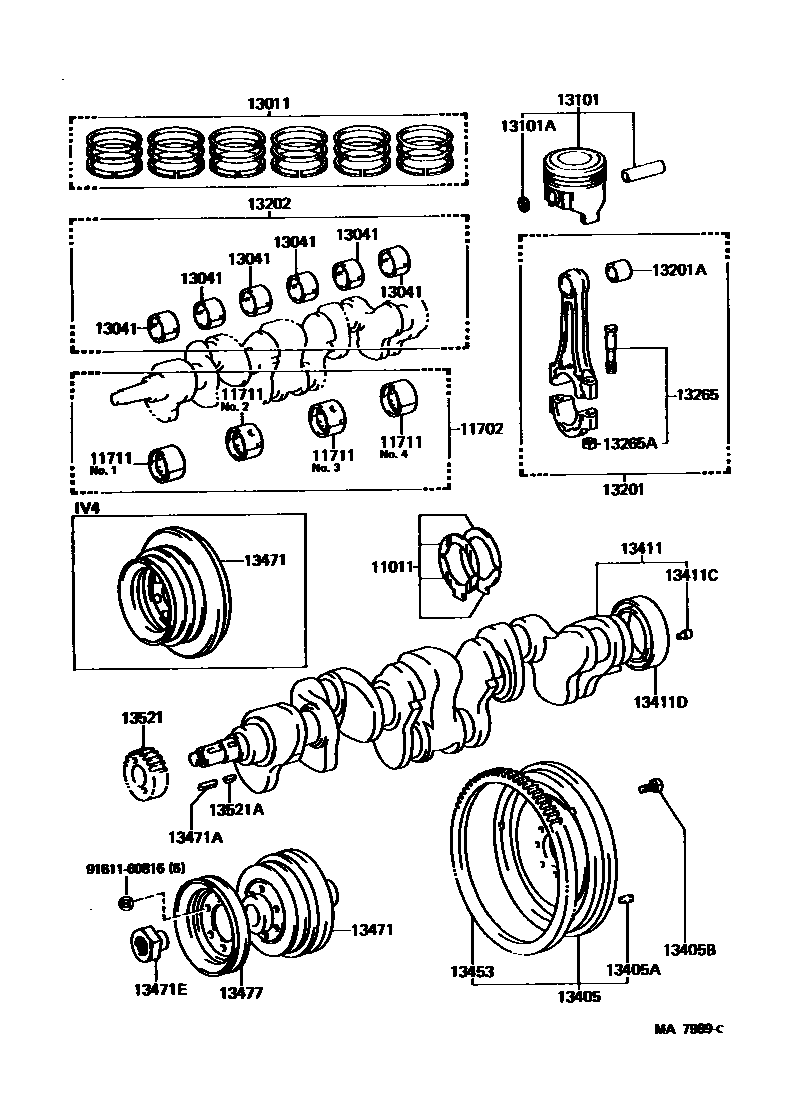

CRANKSHAFT & PISTON

0001 1 0002 1

11011WASHER SET, CRANKSHAFT THRUST

main11011-61010i3F#..FJ62198708-199001

main11011-68020i12HT,2H..HJ6#198708-199001

main11012-61010i3F#..FJ62198708-199001

main11012-68020i12HT,2H..HJ6#198708-199001

main11013-61010i3F#..FJ62198708-199001

main11013-68020i12HT,2H..HJ6#198708-199001

11702BEARING SET, CRANKSHAFT

main11704-61010i3F#..FJ62198708-199001

main11704-68021i12HT,2H..HJ6#198708-199001

main11705-61010i3F#..FJ62198708-199001

main11705-68021i12HT,2H..HJ6#198708-199001

main11706-68021i12HT,2H..HJ6#198708-199001

main11707-68021i12HT,2H..HJ6#198708-199001

11711BEARING, CRANKSHAFT

main11071-61010-01i3F#..FJ62198708-199001

main11071-61010-02i3F#..FJ62198708-199001

main11071-61010-03i3F#..FJ62198708-199001

main11071-61010-04i3F#..FJ62198708-199001

main11071-61010-05i3F#..FJ62198708-199001

main11071-68020-01i12HT,2H..HJ6#198708-199001

main11071-68020-02i12HT,2H..HJ6#198708-199001

main11071-68020-03i12HT,2H..HJ6#198708-199001

main11072-61010-01i3F#..FJ62198708-199001

main11072-61010-02i3F#..FJ62198708-199001

main11072-61010-03i3F#..FJ62198708-199001

main11072-61010-04i3F#..FJ62198708-199001

main11072-61010-05i3F#..FJ62198708-199001

main11073-61010-01i3F#..FJ62198708-199001

main11073-61010-02i3F#..FJ62198708-199001

main11073-61010-03i3F#..FJ62198708-199001

main11073-61010-04i3F#..FJ62198708-199001

main11073-61010-05i3F#..FJ62198708-199001

main11701-61010-01i3F#..FJ62198708-199001

main11701-61010-02i3F#..FJ62198708-199001

main11701-61010-03i3F#..FJ62198708-199001

main11701-61010-04i3F#..FJ62198708-199001

main11701-61010-05i3F#..FJ62198708-199001

main11701-68020-01×6i12HT,2H..HJ6#198708-199001

main11701-68020-02×6i12HT,2H..HJ6#198708-199001

main11701-68020-03×6i12HT,2H..HJ6#198708-199001

13011RING SET, PISTON

main13011-61062i3F#..FJ62198708-199001

main13011-68020i2H..HJ60198708-199001

main13011-68030i12HT..HJ61198708-199001

main13013-61062i3F#..FJ62198708-199001

main13013-68020i2H..HJ60198708-199001

main13013-68030i12HT..HJ61198708-199001

main13015-61062i3F#..FJ62198708-199001

main13017-61062i3F#..FJ62198708-199001

13041BEARING, CONNECTING ROD

main13041-35020-A0×6i3F#..FJ62198708-199001

MARK A

main13041-35020-B0×6i3F#..FJ62198708-199001

MARK B

main13041-35020-C0×6i3F#..FJ62198708-199001

MARK C

main13041-68040-01i2H..HJ60198901-199001

MARK1,MARK 1

main13041-68040-02×6i2H..HJ60198709-199001

MARK 2

main13041-68050-01×6i12HT..HJ61198709-199001

MARK 1

main13041-68050-02×6i12HT..HJ61198709-199001

MARK 2

13101PISTON SUB-ASSY, W/PIN

main13101-61031×6i3F..FJ62198708-198801

main13101-61031-01×6i3F..FJ62198801-198805

main13101-61031-02×6i3F..FJ62198801-198805

main13101-61031-03×6i3F..FJ62198801-198805

main13101-61032-01×6i3F#..FJ62198805-199001

main13101-61032-02×6i3F#..FJ62198805-199001

main13101-61032-03×6i3F#..FJ62198805-199001

main13101-68011-01×6i2H..HJ60198708-199001

main13101-68011-02×6i2H..HJ60198708-199001

main13101-68011-03×6i2H..HJ60198708-199001

main13101-68020×6i12HT..HJ61198708-198801

main13101-68020-01×6i12HT..HJ61198801-199001

main13101-68020-02×6i12HT..HJ61198801-199001

main13101-68020-03×6i12HT..HJ61198801-199001

main13103-61031×6i3F..FJ62198708-198805

main13103-61032×6i3F#..FJ62198805-199001

main13103-68011×6i2H..HJ60198708-199001

main13103-68020×6i12HT..HJ61198708-199001

main13105-61031×6i3F..FJ62198708-198805

main13105-61032×6i3F#..FJ62198805-199001

main13107-61031×6i3F..FJ62198708-198805

main13107-61032×6i3F#..FJ62198805-199001

13101ARING, HOLE SNAP(FOR PISTON PIN)

main90521-25002×12i3F#..FJ62198708-199001

main90521-31001×2i2H..HJ60198708-199001

main90521-34004×2i12HT..HJ61198708-199001

13201ROD SUB-ASSY, CONNECTING

main13201-38011×6i3F#..FJ62198708-199001

main13201-68010×6i2H..HJ60198708-199001

main13201-68020×6i12HT..HJ61198708-198709

main13201-69095×6i12HT..HJ61198709-199001

13201ABUSH(FOR CONNECTING ROD SMALL END)

main90999-73072×6i3F#..FJ62198708-199001

main90999-73087×6i2H..HJ60198708-199001

main90999-73108×6i12HT..HJ61198708-199001

13202BEARING SET, CONNECTING ROD

main13204-61020i3F#..FJ62198708-199001

main13204-68040i12HT,2H..HJ6#198708-198709

main13204-68050i12HT..HJ61198709-199001

main13205-68040i12HT,2H..HJ6#198708-198709

main13205-68050i12HT..HJ61198709-199001

main13206-68040i2H..HJ60198709-199001

main13206-68050i12HT..HJ61198709-199001

main13207-68040i2H..HJ60198709-199001

main13207-68050i12HT..HJ61198709-199001

13265BOLT, CONNECTING ROD

main13265-39025×12i3F#..FJ62198708-199001

main13265-68010i12HT..HJ61; 2H..HJ60198708-199001

13265ANUT, HEXAGON(FOR CONNECTING ROD BOLT)

main90170-10198×12i3F#..FJ62198708-199001

main90179-12015×2i12HT,2H..HJ6#198708-199001

13405FLYWHEEL SUB-ASSY

main13405-61010i3F..FJ62198708-198809

main13405-61011i3F..FJ62198809-198910

main13405-61012i3F..FJ62198910-199001

main13405-68011i12HT,2H..HJ6#..MTM198708-199001

13405APIN, STRAIGHT(FOR FLYWHEEL)

main90250-10192×3i12HT,2H..HJ6#..MTM; 3F..FJ62198708-199001

13405BBOLT, FLYWHEEL SETTING

main90105-12039×6i12HT,2H..HJ6#..MTM198708-199001

main90913-01014×6i3F..FJ62198708-198809

main90913-01016×6i3F..FJ62198809-198908

main90913-01019×6i3F..FJ62198908-199001

13411CRANKSHAFT

main13401-61021i3F#..FJ62198708-198910

main13401-61023i3F#..FJ62198910-199001

main13401-68011i2H..HJ60198708-199001

main13401-68020i12HT..HJ61198708-199001

13411CPIN, STRAIGHT(FOR CRANKSHAFT)

main90241-10017i3F#..FJ62198708-199001

13411DSEAL, OIL(FOR CRANKSHAFT)

main90311-99005i3F#..FJ62198708-199001

13453GEAR, FLYWHEEL RING

main13453-47010i12HT,2H..HJ6#..MTM198708-199001

main13453-60010i3F..FJ62198708-199001

13471PULLEY, CRANKSHAFT

main13407-68011i2H..HJ60198708-199001

main13470-61030i3F#..FJ62..CBU198708-199001

main13470-61060i3F..FJ62..IV4198708-199001

main13470-68020i2H..HJ60198708-198808

13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)

main90281-07004i3F#..FJ62198708-199001

main95161-10519i12HT,2H..HJ6#198708-199001

13471ENUT(FOR CRANKSHAFT PULLEY)

main90179-22009i3F..FJ62..IV4198708-199001

main90179-22010i3F#..FJ62..CBU198708-199001

main90179-22062i12HT,2H..HJ6#198708-199001

13477PULLEY, CRANKSHAFT, NO.2

main13471-61010i3F#..FJ62..CBU198708-199001

main13477-68010i2H..HJ60198708-199001

main88451-60011i2H..HJ60198708-199001

13521GEAR OR SPROCKET, CRANKSHAFT TIMING

main13521-61010i3F#..FJ62198708-199001

main13521-68010i12HT,2H..HJ6#198708-199001

13521AKEY(FOR CRANKSHAFT TIMING GEAR)

main90280-05010i3F#..FJ62198708-199001

main95161-10519i12HT,2H..HJ6#198708-199001

9161160816

main91611-60816

26 parts on this diagram · 2 diagrams in section
