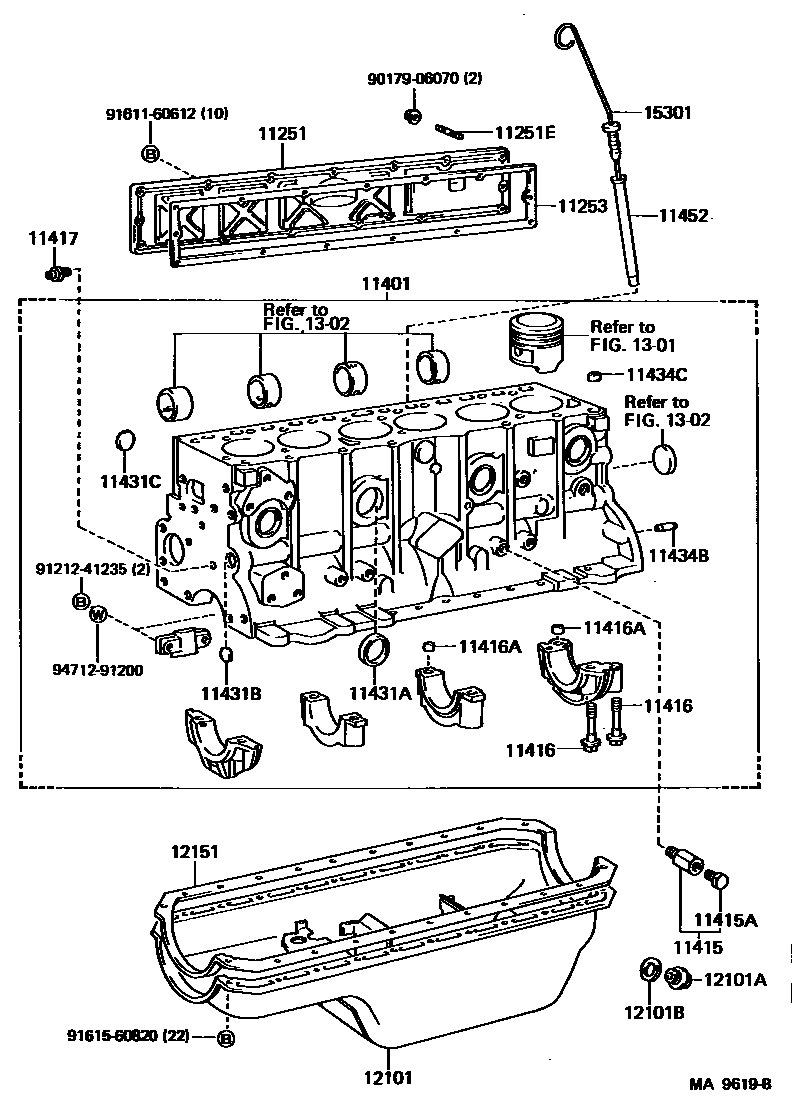

CYLINDER BLOCK

0001 1 0002 1 0003 1 0004 1 0005 1

11251COVER, VALVE PUSH ROD

main11251-61020i3F#..FJ62198708-199001

main11251-68010i12HT,2H..HJ6#198708-199001

11251EBOLT, STUD(FOR VALVE PUSH ROD COVER)

main90116-06022i3F#..FJ62198708-199001

11253GASKET, VALVE PUSH ROD COVER

main11253-61010i3F#..FJ62198708-199001

main11253-68010i12HT,2H..HJ6#198708-199001

sub11253-68020

11401BLOCK SUB-ASSY, CYLINDER

main11401-69196i2H..HJ60198708-199001

main11401-69255i12HT..HJ61198708-199001

main11401-69305i3F#..FJ62198708-198911

sub11401-69306

main11401-69306i3F#..FJ62198911-199001

sub11401-69307

11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)

main96431-53828i3F#..FJ62198708-199001

main96431-53850i12HT..HJ61198708-199001

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main96432-23814i3F#..FJ62198708-199001

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90105-14033i3F#..FJ62198708-199001

NO.1,2,3,*18-2PX65-2

main90105-14039i12HT,2H..HJ6#198708-199001

main90910-02057i3F#..FJ62198708-199001

NO.4,*12-1.75PX68-26

11416APIN, RING(FOR CRANKSHAFT BEARING CAP SET)

main90253-16014i3F#..FJ62198708-199001

main90253-18003i3F#..FJ62198708-199001

NO.1,2,3

11417NOZZLE, OIL

main90915-01014i3F#..FJ62198708-199001

11431APLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)

main96411-43500i12HT..HJ61198708-199001

main96411-45000i3F#..FJ62198708-199001

11431BPLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)

main90331-35002i12HT,2H..HJ6#198708-199001

OD=35,ID=12

main90331-35003i12HT,2H..HJ6#198708-199001

OD=35,ID=14

main90344-54003i3F#..FJ62198708-199001

main96411-42000i12HT,2H..HJ6#198708-199001

11431CPLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)

main96411-42500i3F#..FJ62198708-199001

main96411-45000i12HT,2H..HJ6#198708-199001

11434BPIN, STRAIGHT(FOR CLUTCH HOUSING SET)

main90250-08054i12HT,2H..HJ6#198708-199001

main90250-10192i3F#..FJ62198708-199001

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

main90250-06037i12HT,2H..HJ6#198708-199001

main90250-08074i12HT,2H..HJ6#198708-199001

main90253-17003i3F#..FJ62198708-199001

11452GUIDE, OIL LEVEL GAGE

main11409-68020i12HT,2H..HJ6#198708-199001

main11452-61010i3F#..FJ62198708-199001

12101PAN SUB-ASSY, OIL

main12101-61021i3F..FJ62..IV4198708-198710

sub12101-61040

main12101-61030i3F#..FJ62..CBU198708-199001

main12101-61040i3F..FJ62..IV4198710-199001

main12101-68030i2H..HJ60;12HT..HJ61..MTM198708-199001

sub12101-68040

main12101-68040i12HT..HJ61..ATM198708-199001

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i3F#..FJ62198708-199001

main90341-18089i12HT,2H..HJ6#198708-199001

sub90033-41020

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12011i3F..FJ62198708-198803

sub90430-12019

main90430-12019i3F#..FJ62198803-199001

sub90430-12028

main90430-18244i12HT,2H..HJ6#198708-199001

sub90430-18023

12151GASKET, OIL PAN

main12151-61011i3F#..FJ62198708-199001

1301

1302

15301GAGE SUB-ASSY, OIL LEVEL

main15301-60031i3F#..FJ62198708-199001

main15301-68020i12HT,2H..HJ6#198708-199001

9017906070

main90179-06070

9121241235

main91212-41235

9161160612

main91611-60612

9161560820

main91615-60820

9471291200

main94712-91200

27 parts on this diagram · 5 diagrams in section
