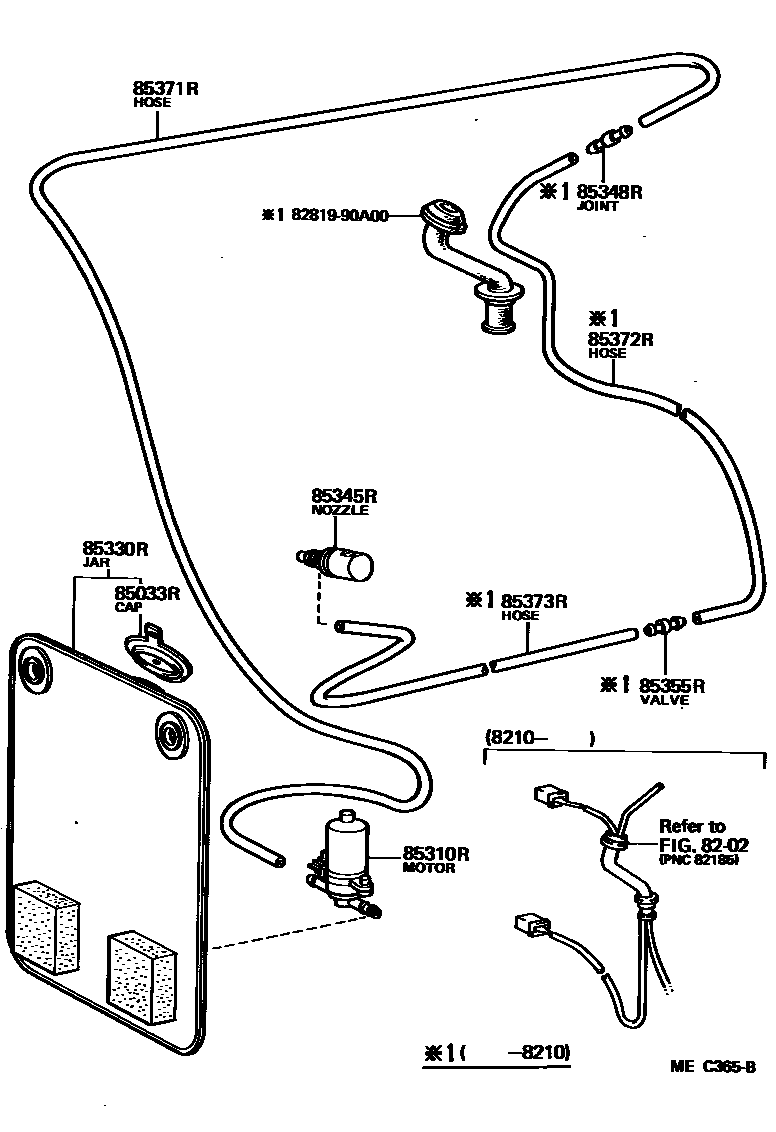

REAR WASHER

0001 1 0002 1

8202WIRING & CLAMP

→ Go to FIG 82-02

85033RCAP ASSY, REAR WASHER

main85332-20050iBJ6#,HJ6#..VLS198110-198708

85310RMOTOR ASSY, REAR WASHER

main85310-25010iBJ60..VLS198110-198210

main85310-90B00iBJ61,HJ6#..VLS198210-198708

85330RJAR ASSY, REAR WASHER

main85330-90A05iBJ6#,HJ60..VLS198110-198411

main85330-90A08iBJ61,HJ6#..VLS198411-198708

85345RNOZZLE, REAR WASHER

main85035-90A01iBJ6#,HJ60..VLS198110-198411

main85035-90A02iBJ61,HJ6#..VLS198411-198708

85348RJOINT, REAR WASHER HOSE, NO.1

main85355-10060iBJ60..VLS198110-198210

85355RVALVE, REAR WASHER HOSE

main85031-90A00iBJ60..VLS198110-198210

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90446-06292iBJ6#,HJ6#..VLS198110-198708

85372RHOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)

main90446-06013iBJ60..VLS198110-198210

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90446-06013iBJ60..VLS198110-198210

8281990A00GROMMET, WIRING HARNESS

main82819-90A00

11 parts on this diagram · 2 diagrams in section
