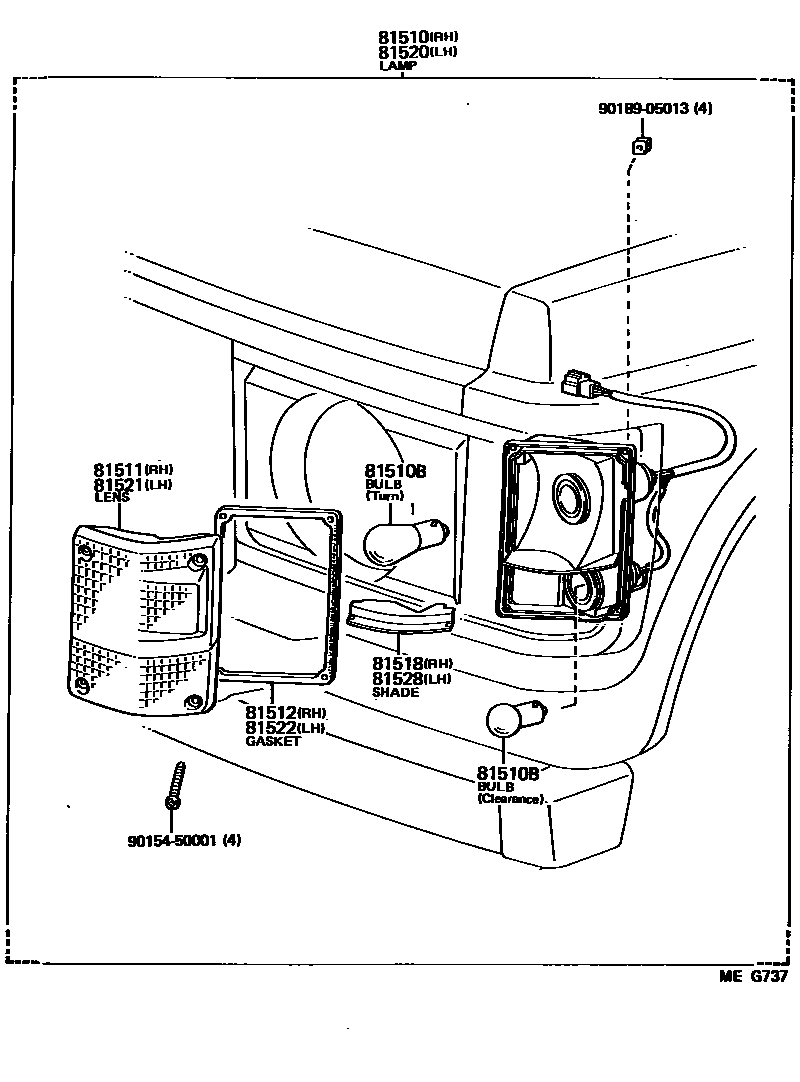

FRONT TURN SIGNAL LAMP

81510LAMP ASSY, FRONT TURN SIGNAL, RH

main81510-69165iFJ6#198008-198708

AMBER-CLEAR

main81510-69175iBJ6#,HJ6#198008-198708

AMBER-CLEAR

81510BBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-16016×2iBJ6#,HJ6#198008-198708

main99132-11050×2iFJ6#198008-198708

main99132-11230×2iFJ6#198008-198708

main99134-11250×2iBJ6#,HJ6#198008-198708

81511LENS, FRONT TURN SIGNAL LAMP, RH

main81511-90A00iBJ6#,FJ6#,HJ6#198008-198708

AMBER-CLEAR

81512GASKET, FRONT TURN SIGNAL LAMP LENS, RH

main81512-90A00iBJ6#,FJ6#,HJ6#198008-198708

81518SHADE, FRONT TURN SIGNAL LAMP, RH

main81517-90A00iBJ6#,FJ6#,HJ6#198008-198708

81520LAMP ASSY, FRONT TURN SIGNAL, LH

main81520-69165iFJ6#198008-198708

AMBER-CLEAR

main81520-69175iBJ6#,HJ6#198008-198708

AMBER-CLEAR

81521LENS, FRONT TURN SIGNAL LAMP, LH

main81521-90A00iBJ6#,FJ6#,HJ6#198008-198708

AMBER-CLEAR

81522GASKET, FRONT TURN SIGNAL LAMP LENS, LH

main81512-90A00iBJ6#,FJ6#,HJ6#198008-198708

81528SHADE, FRONT TURN SIGNAL LAMP, LH

main81527-90A00iBJ6#,FJ6#,HJ6#198008-198708

9015450001

main90154-50001

9018905013

main90189-05013

11 parts on this diagram · 1 diagram in section
