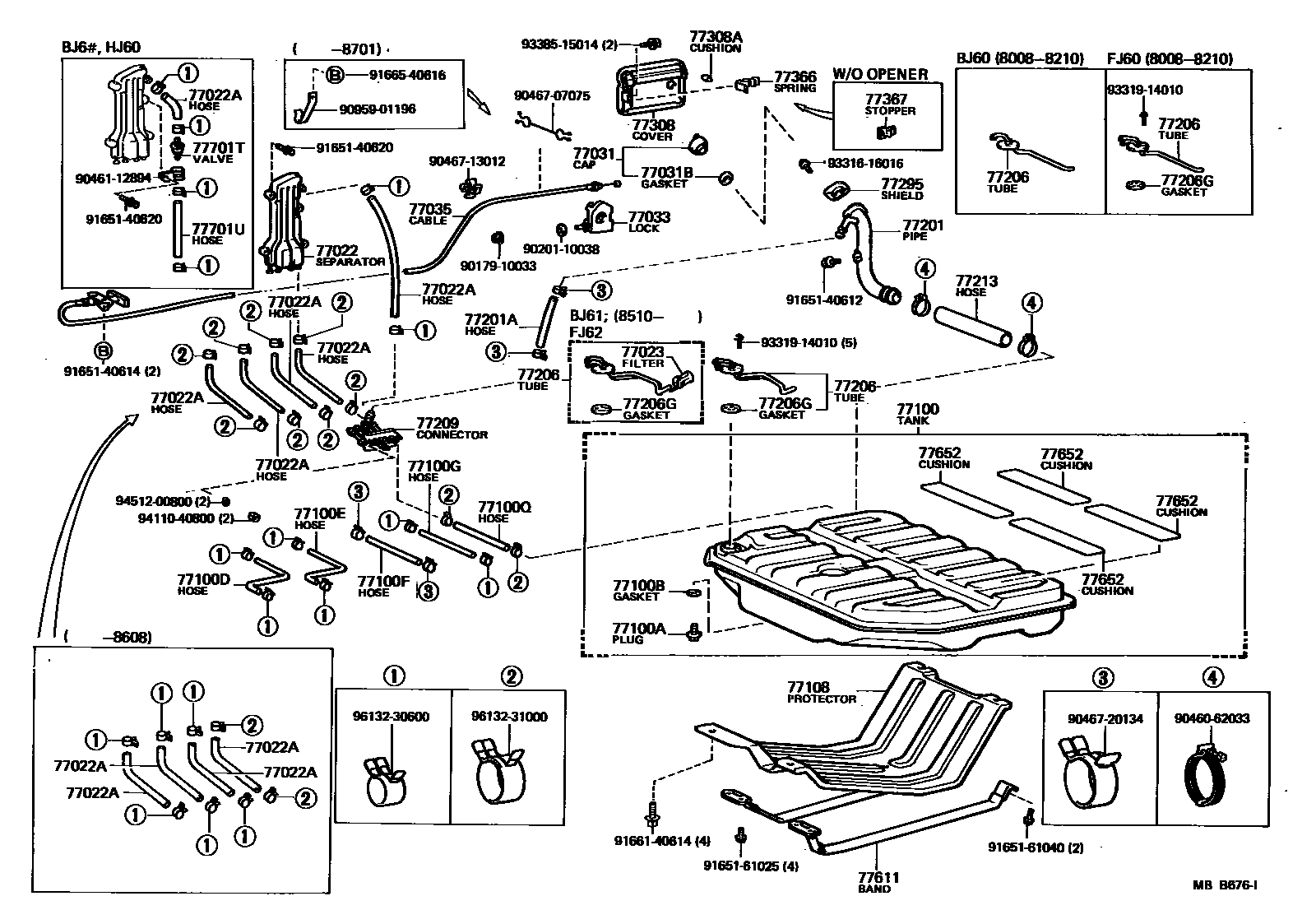

FUEL TANK & TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1

77022SEPARATOR SUB-ASSY, FUEL EVAPORATIVE

main77193-60030iBJ6#,FJ6#,HJ6#198008-198708

77022AHOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)

main90445-17064×4iFJ62,HJ6#..CBU198608-198708

L=215

main95332-06010iBJ6#,HJ6#198008-198702

main95332-06030×3iBJ6#,FJ6#,HJ6#..CBU198008-198608

main95332-06060iFJ6#..CBU198008-198702

main95332-06080iFJ6#..IV4198011-198411

main95332-06200iFJ62..IV4198411-198702

main95332-08020×2iFJ6#..IV4198011-198411

main95332-10022iBJ6#,FJ6#,HJ6#..CBU198008-198608

main95333-06010iHJ6#198702-198708

main95333-06030×3iFJ62,HJ6#..CBU198702-198708

main95333-06060iFJ62..CBU198702-198708

main95333-06200iFJ62..IV4198702-198708

77023FILTER SUB-ASSY, FUEL SUCTION TUBE

main77023-22040iBJ61198210-198608

77031CAP ASSY, FUEL TANK

main77310-12090iBJ60,FJ60198008-198110

main77310-12100iBJ60,FJ60198110-198210

main77310-35061iBJ61,HJ6#198210-198708

77031BGASKET (FOR FUEL TANK CAP)

main77316-12050iBJ60,FJ60198008-198210

77033LOCK SUB-ASSY, FUEL TANK CAP

main77037-90K00iBJ61,HJ6#..VLS198411-198708

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77030-90A00iBJ61,HJ6#..VLS198411-198708

77100TANK ASSY, FUEL

main77001-37030iFJ6#..IV4198011-198411

main77001-37031iFJ62..IV4198411-198708

main77001-60110iBJ6#,FJ6#,HJ6#..CBU198008-198708

77100APLUG(FOR FUEL TANK)

main90105-12018iBJ6#,FJ6#,HJ6#198008-198708

77100BGASKET(FOR FUEL TANK)

main90430-12245iBJ6#,FJ6#,HJ6#198008-198708

77100DHOSE, FUEL, NO.1(FOR FUEL TANK)

main77249-60040iBJ6#,FJ6#,HJ6#..CBU198008-198708

main95332-08020iFJ6#..IV4198011-198702

main95333-08020iFJ62..IV4198702-198708

77100EHOSE, FUEL, NO.2(FOR FUEL TANK)

main77249-60050iBJ6#,FJ6#,HJ6#198008-198708

77100FHOSE, FUEL, NO.3(FOR FUEL TANK)

main90445-22904iBJ6#,FJ6#,HJ6#198008-198708

77100GHOSE, FUEL, NO.4(FOR FUEL TANK)

main95332-06040iBJ6#,FJ6#,HJ6#198008-198702

main95333-06040iFJ62,HJ6#198702-198708

77100QHOSE, FUEL, NO.5(FOR FUEL TANK)

main95331-10036iBJ60,FJ60198008-198105

main95332-10036iBJ6#,FJ6#,HJ6#198105-198708

77108PROTECTOR SUB-ASSY, FUEL TANK

main58279-90A00iBJ6#,FJ6#,HJ6#198008-198708

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-60130iBJ6#,FJ6#,HJ6#198008-198708

77201AHOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)

main90445-22015iBJ6#,FJ6#,HJ6#198008-198708

77206TUBE SUB-ASSY, FUEL TANK SUCTION

main77203-60040iBJ60198008-198210

main77203-60050iFJ60198008-198210

main77240-60010iHJ60198210-198510

main77240-60011iHJ60198510-198708

main77240-60020iFJ61198210-198411

main77240-60030iBJ61198210-198411

main77240-60180iFJ62..CBU198411-198708

77206GGASKET (FOR FUEL TANK SUCTION TUBE)

main77169-14020iBJ61,FJ6#,HJ6#198210-198708

main83361-20030iBJ60,FJ60198008-198210

77209CONNECTOR SUB-ASSY, FUEL TUBE

main77209-60041iBJ6#,FJ6#,HJ6#198008-198708

77213HOSE, FUEL TANK SUB INLET

main77213-60030iBJ6#,FJ6#,HJ6#198008-198708

77295SHIELD, FUEL FILLER PIPE

main77293-60030iBJ6#,FJ6#,HJ6#198008-198708

77308COVER SUB-ASSY, FUEL INLET BOX

main77305-90A00iBJ6#,FJ6#,HJ60198008-198411

main77305-90A01iBJ61,FJ62,HJ6#198411-198708

77308ACUSHION(FOR FUEL INLET BOX COVER)

main90541-08003×2iBJ6#,FJ6#,HJ6#198008-198708

77366SPRING, FUEL FILLER OPENING LID HINGE

main77366-12010iBJ61,HJ6#..VLS198411-198708

77367STOPPER, FUEL FILLER OPENING LID

main77358-12020iBJ61,FJ62,HJ6#198411-198708

77611BAND, FUEL TANK

main77601-60030×2iFJ6#..IV4198011-198708

main77601-60060iBJ6#,FJ6#,HJ6#..CBU198008-198708

RH

main77602-60040iBJ6#,FJ6#,HJ6#..CBU198008-198708

LH

77652CUSHION, FUEL TANK, NO.1

main77653-60010×4iBJ6#,FJ6#,HJ6#198008-198708

77701TVALVE, CHECK (FOR MAIN FUEL TANK)

main90917-10020iBJ6#,HJ6#198008-198708

77701UHOSE, FUEL (FOR CHECK VALVE)

main95332-06040iBJ6#,HJ6#198008-198708

9017910033

main90179-10033

9020110038

main90201-10038

9046062033

main90460-62033

9046112894

main90461-12894

9046707075

main90467-07075

9046713012

main90467-13012

9046720134

main90467-20134

9095901196

main90959-01196

9165140612

main91651-40612

9165140614

main91651-40614

9165140620

main91651-40620

9165161025

main91651-61025

9165161040

main91651-61040

9166140614

main91661-40614

9166540616

main91665-40616

9331616016

main93316-16016

9331914010

main93319-14010

9338515014

main93385-15014

9411040800

main94110-40800

9451200800

main94512-00800

9613230600

main96132-30600

9613231000

main96132-31000

53 parts on this diagram · 12 diagrams in section
