BACK DOOR PANEL & GLASS

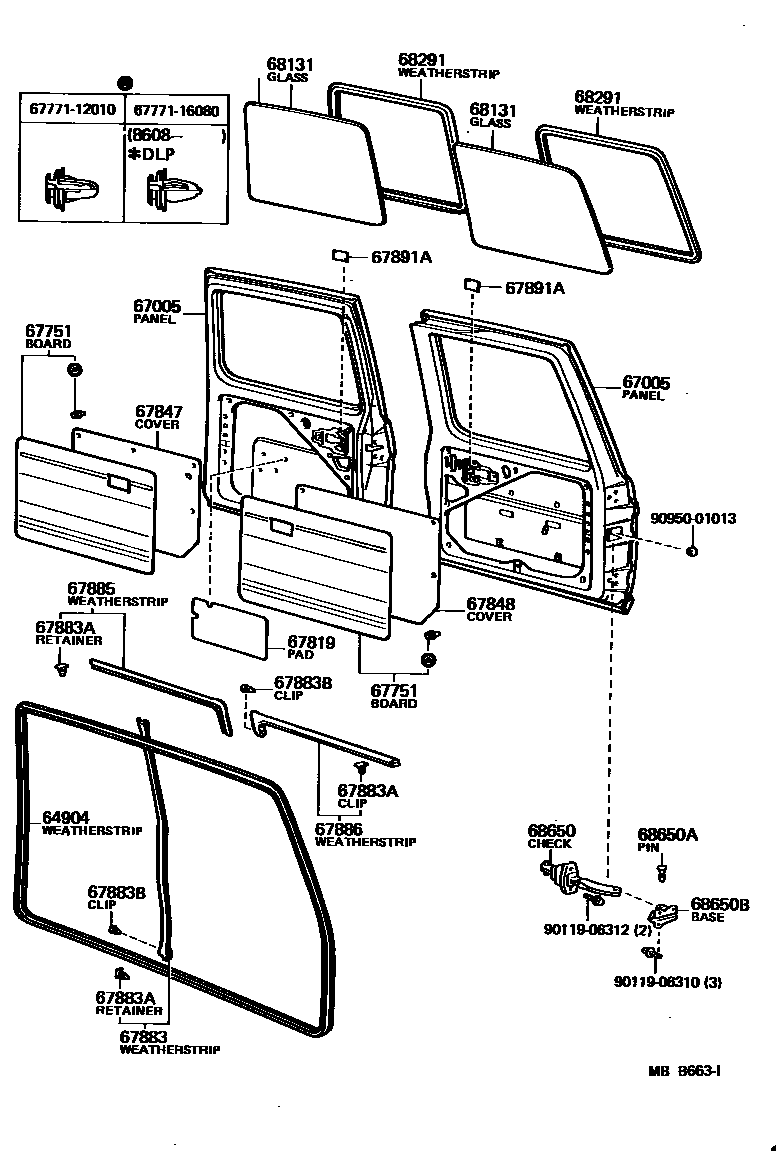

Parts diagram

64904WEATHERSTRIP SUB-ASSY, BACK DOOR

main67881-90A00i198110-198401

main67881-90A02i198008-198401

main67881-90A06i198401-198708

main67881-90A08i198401-198708

67005PANEL SUB-ASSY, BACK DOOR

main67005-90A00i198008-198510

RH

main67005-90A03i198110-198210

W/RR WIPER

main67005-90A09i198210-198503

main67005-90A10i198411-198510

RH,W/RR DEFOGGER

main67005-90A16i198503-198511

main67005-90A23i198511-198708

main67005-90A26i198510-198708

RH

main67006-90A01i198008-198111

LH

main67006-90A03i198111-198411

LH

main67006-90A07i198411-198608

LH

main67006-90A10i198411-198608

LH,W/RR DEFOGGER

main67006-90A16i198608-198708

LH

main67006-90A18i198608-198708

LH,W/RR DEFOGGER

67751BOARD, BACK DOOR TRIM

main64780-90A00-03i198411-198708

RH,SHADOW GRAY,SHADOW GRAY,TRIM1#

main64780-90A00-06i198008-198411

RH,DARK BROWN,DARK BROWN,TRIM4#

main64780-90A00-16i198411-198708

RH,SEPIA BROWN,SEPIA BROWN,TRIM4#

main64790-90A00-03i198411-198708

LH,SHADOW GRAY,SHADOW GRAY,TRIM1#

main64790-90A00-06i198008-198411

LH,DARK BROWN,DARK BROWN,TRIM4#

main64790-90A00-16i198411-198708

LH,SEPIA BROWN,SEPIA BROWN,TRIM4#

67819PAD, BACK DOOR OUTSIDE PANEL

main67819-90A00i198008-198708

67847COVER, BACK DOOR SERVICE HOLE, RH

main67847-90A00i198008-198708

67848COVER, BACK DOOR SERVICE HOLE, LH

main67848-90A00i198008-198708

67883WEATHERSTRIP, BACK DOOR, CENTER

main67884-90A00i198008-198708

67883ARETAINER, BACK DOOR WEATHERSTRIP

main67868-30040i198008-198708

67883BCLIP, BACK DOOR WEATHERSTRIP

main67868-30030×6i198008-198708

67885WEATHERSTRIP, BACK DOOR, RH

main67881-90A04i198008-198708

67886WEATHERSTRIP, BACK DOOR, LH

main67882-90A00i198008-198708

67891ASEAL, BACK DOOR

main67891-90A01×2i198608-198708

68131GLASS, BACK DOOR

main68131-90A07i198008-198608

RH,*TEM,T=4.0

main68131-90A08i198008-198510

RH,*TT,T=4.0

main68131-90A09i198110-198608

main68131-90A10i198210-198608

*EHT,T

main68131-90A12i198411-198608

RH,*EHT,T=4.0

main68131-90A13i198411-198608

main68131-90A23i198608-198708

main68131-90A25i198608-198708

main68131-90A26i198608-198708

main68131-90A27i198608-198708

main68131-90A28i198608-198708

main68132-90A00i198008-198608

LH,*TEM,T=4.0

main68132-90A01i198008-198510

LH,*TT,T=4.0

main68132-90A04i198411-198608

LH,*EHTT,T=4.0

main68132-90A05i198411-198608

LH,*EHT,T=4.0

main68132-90A09i198608-198708

main68132-90A11i198608-198708

main68132-90A12i198608-198708

68291WEATHERSTRIP, BACK DOOR GLASS

main68291-90A01i198110-198708

main68291-90A02i198008-198708

RH

main68292-90A00i198008-198708

LH

68650CHECK ASSY, BACK DOOR

main68650-90A01i198008-198708

RH

main68650-90A02i198411-198708

RH,W/RR DEFOGGER

main68660-90A01i198008-198708

LH

68650APIN(FOR BACK DOOR CHECK)

main68617-12010×2i198410-198507

main68617-22010×2i198008-198410

main68617-90A00×2i198507-198708

68650BBASE, BASE DOOR CHECK

main68611-90A00i198008-198708

RH

main68612-90A00i198008-198708

LH

6777112010WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-12010

6777116080WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-16080

9011906310

main90119-06310

9011906312

main90119-06312

9095001013

main90950-01013

22 parts on this diagram · 2 diagrams in section
