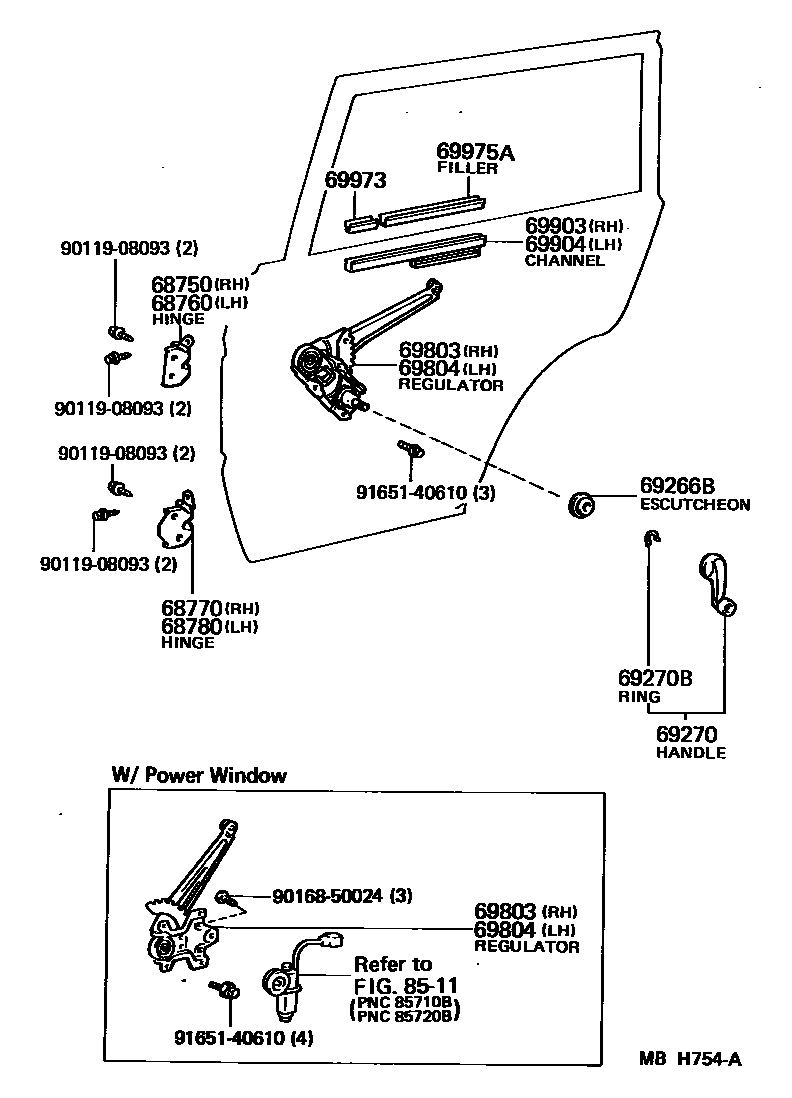

REAR DOOR WINDOW REGULATOR & HINGE

68750HINGE ASSY, REAR DOOR, UPPER RH

main68710-30080iBJ6#,FJ6#,HJ6#198008-198708

68760HINGE ASSY, REAR DOOR, UPPER LH

main68720-30020iBJ6#,FJ6#,HJ6#198008-198708

68770HINGE ASSY, REAR DOOR, LOWER RH

main68730-14020iBJ6#,FJ6#,HJ6#198008-198708

68780HINGE ASSY, REAR DOOR, LOWER LH

main68740-14020iBJ6#,FJ6#,HJ6#198008-198708

69266BESCUTCHEON, DOOR REGULATOR HANDLE(FOR REAR DOOR)

main69266-22010×2iBJ6#,FJ6#,HJ60198008-198708

NATURAL

69270HANDLE ASSY, REAR DOOR WINDOW REGULATOR

main69260-12010-03×2iBJ61,FJ62,HJ60198411-198708

SHADOW GRAY,GRAY,TRIM1#

main69260-12010-26×2iBJ6#,FJ6#,HJ60198008-198411

DARK BROWN,BROWN,TRIM4#

main69260-12010-46×2iBJ61,FJ62,HJ60198411-198708

BROWN,BROWN,TRIM4#

69270BRING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)

main90520-01002×2iBJ6#,FJ6#,HJ60198008-198708

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-90A00iBJ61,HJ6#..VLS198411-198708

W/*PW

main69830-90A00iBJ6#,FJ6#,HJ60198008-198409

main69830-90A01iBJ61,FJ6#,HJ60198409-198708

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-90A00iBJ61,HJ6#..VLS198411-198708

W/*PW

main69840-90A00iBJ6#,FJ6#,HJ60198008-198409

main69840-90A01iBJ61,FJ6#,HJ60198409-198708

69903CHANNEL SUB-ASSY, REAR DOOR GLASS, RH

main69905-90A00iBJ6#,FJ6#,HJ60198008-198410

main69905-90A02iBJ61,FJ61,HJ60198410-198411

main69905-90A03iBJ61,FJ62,HJ6#198411-198708

69904CHANNEL SUB-ASSY, REAR DOOR GLASS, LH

main69906-90A00iBJ6#,FJ6#,HJ60198008-198410

main69906-90A02iBJ61,FJ61,HJ60198410-198411

main69906-90A03iBJ61,FJ62,HJ6#198411-198708

69973FILLER, REAR DOOR GLASS CHANNEL, NO.2

main69973-90A00×2iFJ62,HJ6#198610

69975AFILLER, REAR DOOR GLASS CHANNEL

main69975-90A00×2iBJ6#,FJ6#,HJ60198008-198410

main69975-90A01×2iBJ61,FJ62,HJ6#198410-198708

8511DOOR MOTOR & DOOR SOLENOID

→ Go to FIG 85-11

9011908093

main90119-08093

9016850024

main90168-50024

9165140610

main91651-40610

17 parts on this diagram · 1 diagram in section
