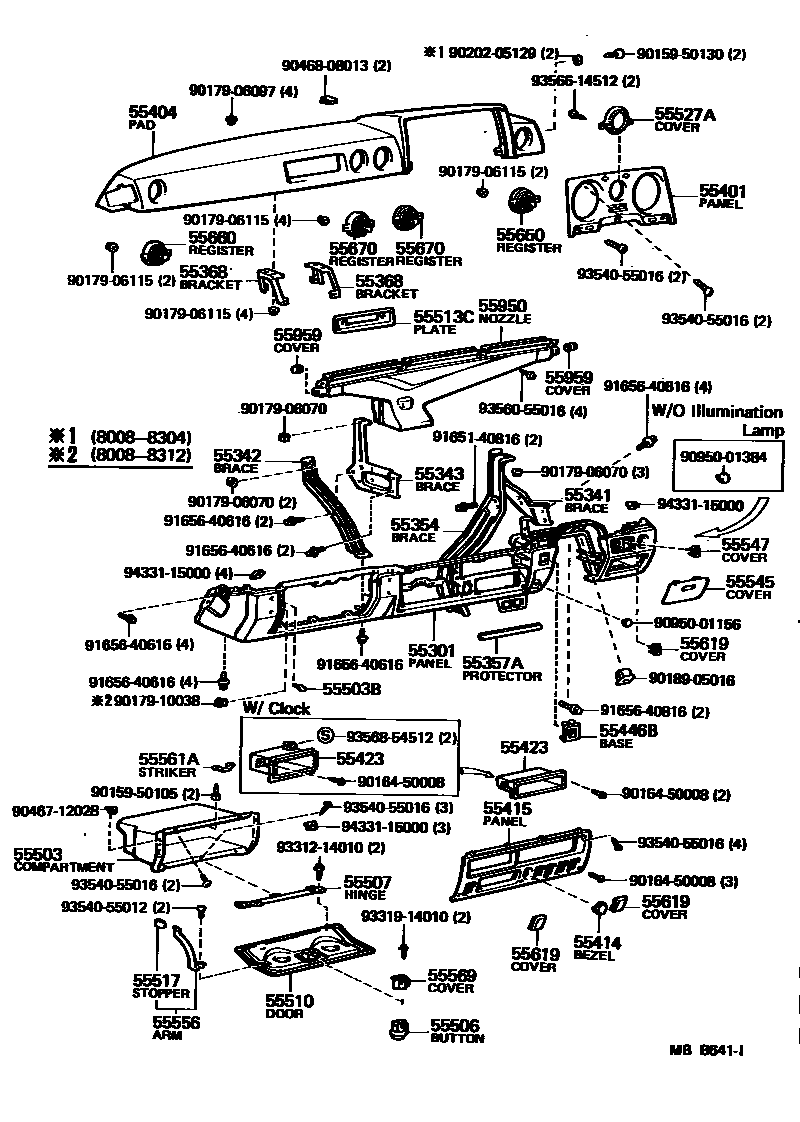

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1

55301PANEL SUB-ASSY, INSTRUMENT

main55301-90A10iFJ60..CBU198008-198210

main55301-90A14iBJ60198008-198210

main55301-90A27iFJ60..IV4198011-198210

main55301-90A31iFJ61..IV4198210-198411

main55301-90A32-05iFJ61..CBU198210-198411

BEIGE,BEIGE,TRIM4#

main55301-90A33-03iHJ60198210-198411

GRAY,GRAY,TRIM1#

main55301-90A33-05iBJ61,HJ60198210-198411

BEIGE,BEIGE,TRIM4#

main55301-90A41-03iHJ60198210-198411

W/*RCM & *SH,GRAY,GRAY,TRIM1#

main55301-90A41-05iBJ61,HJ60198210-198411

W/*RCM & *SH,BEIGE,BEIGE,TRIM4#

main55301-90A42-03iFJ62..CBU198411-198510

GRAY,GRAY,TRIM1#

main55301-90A42-05iFJ62..CBU198411-198510

BEIGE,BEIGE,TRIM4#

main55301-90A47-03iBJ61,HJ60198411-198510

GRAY,GRAY,TRIM1#

main55301-90A47-05iBJ61,HJ60198411-198510

BEIGE,BEIGE,TRIM4#

main55301-90A48-05iFJ62..IV4198411-198510

BEIGE,BEIGE

main55301-90A58-03iBJ61,FJ62,HJ6#..CBU198510-198708

GRAY,GRAY,TRIM1#

main55301-90A58-05iBJ61,FJ62,HJ6#..CBU198510-198708

BEIGE,BEIGE,TRIM4#

main55301-90A62-05iFJ62..IV4198510-198708

BEIGE,BEIGE

55341BRACE, INSTRUMENT PANEL, NO.1

main55341-90A00iFJ6#198008-198708

main55341-90A01iBJ6#,HJ6#198008-198708

55342BRACE, INSTRUMENT PANEL, NO.2

main55342-90A00iBJ6#,FJ6#,HJ6#198008-198708

55343BRACE, INSTRUMENT PANEL, NO.3

main55344-90A00iBJ6#,FJ6#,HJ6#198008-198708

55354BRACE, INSTRUMENT PANEL TO FLOOR

main55351-90A00iFJ6#198008-198708

main55351-90A02iBJ6#,HJ6#198008-198708

55357APROTECTOR, EDGE, NO.1

main55357-90A00iBJ6#,FJ6#,HJ6#198008-198708

55368BRACKET, RADIO TUNER MOUNTING

main55366-90A00iBJ6#,FJ6#,HJ6#198008-198708

RH

main55368-90A00iBJ6#,FJ6#,HJ60198008-198708

LH

main55368-90A01iBJ61,FJ6#,HJ60198210-198510

LH,W/CASSET

main55368-90A02iBJ61,FJ62,HJ6#..CBU198510-198708

LH,W/CASSET

55401PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH

main55410-90A00iBJ60198008-198210

W/TILT STEERING

main55410-90A02iFJ60..IV4198011-198210

main55410-90A05iFJ60..CBU198008-198210

main55410-90A06iBJ60..VKC198008-198210

main55410-90A07iBJ60198110-198210

W/TILT STEERING & SEDIMENTER

main55410-90A10iBJ60..VKC198110-198210

W/SEDIMENTER

main55410-90A11iBJ61198210-198411

W/TILT STEERING

main55410-90A28iHJ60198210-198411

main55410-90A30iFJ61..CBU; FJ61..IV4198210-198411

W/*TIS

main55410-90A40iFJ61..CBU198210-198411

main55410-90A41iBJ61..VKC198210-198411

main55410-90A59-03iHJ60198411-198510

GRAY-M,DARK GRAY METALLIC

main55410-90A62-03iBJ61..VKC198411-198510

GRAY-M,DARK GRAY METALLIC

main55410-90A63-03iBJ61; HJ60198411-198510

W/SEDIMENTER,GRAY-M,DARK GRAY METALLIC; W/TILT STEERING,GRAY-M,DARK GRAY METALLIC

main55410-90A64-03iFJ62198411-198510

W/*TIS,GRAY-M,DARK GRAY METALLIC

main55410-90A65-03iFJ62..CBU198411-198510

GRAY-M,DARK GRAY METALLIC

main55410-90A78-03iHJ60..VKC198608-198708

GRAY-M,DARK GRAY METALLIC

main55410-90A79-03iHJ6#198510-198708

W/*TIS,GRAY-M,DARK GRAY METALLIC

main55410-90A80-03iHJ60..VKC198608-198708

W/*DL,GRAY-M,DARK GRAY METALLIC

main55410-90A81-03iHJ6#198608-198708

W/*TIS,*DL,GRAY-M,DARK GRAY METALLIC

main55410-90A82-03iBJ61..VKC198510-198608

GRAY-M,DARK GRAY METALLIC

main55410-90A83-03iBJ61198510-198608

W/TILT STEERING,GRAY-M,DARK GRAY METALLIC

main55410-90A84-03iHJ6#198608-198708

W/SEDIMENTER,*TIS,*DL,GRAY-M,DARK GRAY METALLIC

main55410-90A89-03iFJ62..CBU198510-198708

GRAY-M,DARK GRAY METALLIC

main55410-90A90-03iFJ62198510-198708

W/*TIS,GRAY-M,DARK GRAY METALLIC

main55410-90A91-03iFJ62..CBU198608-198708

W/*DL,GRAY-M,DARK GRAY METALLIC

main55410-90A92-03iFJ62..CBU198608-198708

W/*TIS,*DL,GRAY-M,DARK GRAY METALLIC

main55410-90G24-03iHJ60..VKC198608-198708

W/SEDIMENTER,*DL,GRAY-M,DARK GRAY METALLIC

55404SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER

main55401-90A00-03iHJ60198210-198411

SHADOW GRAY,GRAY,TRIM1#

main55401-90A00-06iBJ6#,FJ6#,HJ60..CBU198008-198411

DARK BROWN,BROWN,TRIM4#

main55401-90A01-03iHJ60198210-198411

W/SIDE DEFROSTER,SHADOW GRAY,GRAY,TRIM1#

main55401-90A01-06iBJ61,FJ61,HJ60..CBU198210-198411

W/SIDE DEFROSTER,DARK BROWN,BROWN,TRIM4#

main55401-90A01-16iBJ61,FJ62,HJ6#198411-198708

SEPIA BROWN,SEPIA BROWN,TRIM4#

55414BEZEL, CIGAR LIGHTER HOLE

main55477-90A00iBJ6#,FJ6#,HJ60198008-198411

main55477-90A01iBJ61,HJ6#198411-198708

55415PANEL, INSTRUMENT CLUSTER FINISH, CENTER

main55412-90A00iBJ60,FJ60..CBU198008-198110

main55420-90A00-05iFJ6#..IV4198011-198708

BEIGE,BEIGE

main55420-90A02-03iHJ60198210-198411

GRAY,GRAY,TRIM1#

main55420-90A02-05iBJ6#,FJ6#,HJ6#..CBU198110-198708

BEIGE,BEIGE,TRIM4#

main55420-90A02-13iBJ61,FJ62,HJ6#..CBU198411-198708

GRAY,GRAY,TRIM1#

55423PANEL, STEREO PLAYER FINISH

main55521-90A00iBJ60,FJ60198008-198210

main55521-90A01iBJ61,HJ6#..VLS198510-198708

55446BSPACER, INSTRUMENT PANEL SAFETY PAD, SET

main55446-90A01-05iFJ62..IV4198411-198708

BEIGE,BEIGE

main55446-90A02-03iBJ61,FJ62,HJ6#..CBU198411-198708

GRAY,GRAY,TRIM1#

main55446-90A02-05iBJ61,FJ62,HJ6#..CBU198411-198708

BEIGE,BEIGE,TRIM4#

55503COMPARTMENT SUB-ASSY, GLOVE

main55581-90A00iBJ6#,FJ6#,HJ6#198008-198708

55503BCUSHION(FOR GLOVE COMPARTMENT)

main90541-03015×2iBJ6#,FJ6#,HJ6#198008-198708

55506BUTTON SUB-ASSY, GLOVE COMPARTMENT DOOR LOCK

main55560-12020iBJ6#,FJ6#,HJ6#198008-198708

55507HINGE SUB-ASSY, GLOVE COMPARTMENT DOOR

main55505-90A00iBJ6#,FJ6#,HJ6#198008-198708

55510DOOR ASSY, GLOVE COMPARTMENT

main55501-90A00-03iHJ60198210-198411

GRAY,GRAY,TRIM1#

main55501-90A00-05iBJ6#,FJ6#,HJ6#198008-198708

BEIGE,BEIGE,TRIM4#

main55501-90A00-13iBJ61,FJ62,HJ6#..CBU198411-198708

GRAY,GRAY,TRIM1#

55513CPLATE, RADIO TUNER FINISH

main55513-90A00iBJ6#,FJ6#,HJ60198008-198708

main55513-90A01iBJ61,FJ6#,HJ60198210-198510

W/STEREO

main55513-90A02iBJ61,FJ62,HJ6#..CBU198510-198708

W/STEREO

55517STOPPER, GLOVE COMPARTMENT DOOR ARM

main55517-14010iBJ6#,FJ6#,HJ6#198008-198708

55527ACOVER, METER OPENING

main55527-90A00iFJ61..IV4198210-198411

55545COVER, FUSE BOX OPENING

main55545-90A00-03iFJ6#..IV4198011-198411

SHADOW GRAY,GRAY

main55545-90A00-05iBJ6#,FJ6#,HJ6#198008-198708

BEIGE,BEIGE,TRIM4#

main55545-90A00-13iBJ61,FJ62,HJ6#..CBU198411-198708

GRAY,GRAY,TRIM1#

55547COVER, REMOTE CONTROL MIRROR HOLE

main55547-90A00iBJ61,FJ62,HJ60..VKC..CBU198510-198708

55556ARM, GLOVE COMPARTMENT DOOR CHECK

main55556-90A00iBJ6#,FJ6#,HJ6#198008-198708

55561ASTRIKER, GLOVE COMPARTMENT DOOR LOCK

main55561-90A00iBJ6#,FJ6#,HJ6#198008-198708

55569COVER, GLOVE COMPARTMENT DOOR LOCK

main55569-90A00-03iFJ6#..IV4198011-198411

SHADOW GRAY,GRAY

main55569-90A00-05iBJ6#,FJ6#,HJ6#198008-198708

BEIGE,BEIGE,TRIM4#

main55569-90A00-13iBJ61,FJ62,HJ6#..CBU198411-198708

GRAY,GRAY,TRIM1#

55619COVER, SWITCH HOLE

main55524-90A00iBJ6#,FJ6#,HJ60..VKC..CBU; BJ6#,HJ6#..VLS198008-198708

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-90A00iBJ6#,FJ6#,HJ6#198008-198708

55660REGISTER ASSY, INSTRUMENT PANEL, NO.2

main55650-90A00iBJ6#,FJ6#,HJ6#198008-198708

55670REGISTER ASSY, INSTRUMENT PANEL, NO.3

main55670-90A00×2iBJ6#,FJ6#,HJ6#198008-198708

55950NOZZLE ASSY, DEFROSTER

main55950-90A00iBJ6#,FJ6#,HJ6#198008-198708

55959COVER, DEFROSTER NOZZLE OPENING, NO.1

main55959-14010×2iBJ6#,FJ6#,HJ60198008-198411

9015950105

main90159-50105

9015950130

main90159-50130

9016450008

main90164-50008

9017906070

main90179-06070

9017906097

main90179-06097

9017906115

main90179-06115

9017910038

main90179-10038

9018905016

main90189-05016

9020205129

main90202-05129

9046712028

main90467-12028

9046808013

main90468-08013

9095001156

main90950-01156

9095001384

main90950-01384

9165140816

main91651-40816

9165640616

main91656-40616

9165640816

main91656-40816

9331214010

main93312-14010

9331914010

main93319-14010

9354055012

main93540-55012

9354055016

main93540-55016

9356055016

main93560-55016

9356614512

main93566-14512

9356854512

main93568-54512

9433115000

main94331-15000

56 parts on this diagram · 2 diagrams in section
