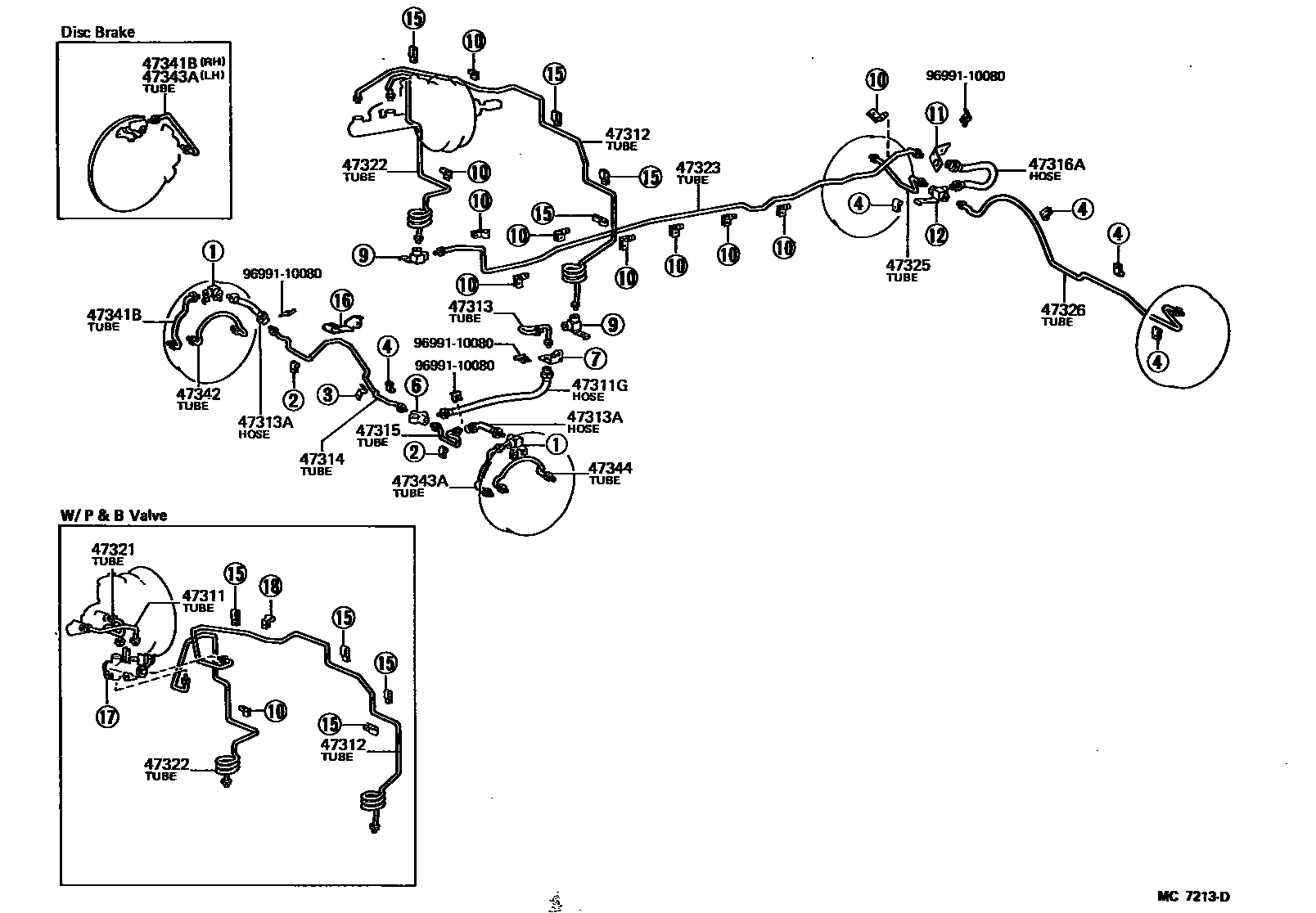

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1 0004 1 0005 1

47311TUBE, FRONT BRAKE, NO.1

main47311-30320iBJ60,FJ60198008-198210

main47311-30330iBJ61,FJ61,HJ60198210-198411

main47311-30400iBJ61,FJ62,HJ6#198411-198708

47311GHOSE, FLEXIBLE(FOR BRAKE TUBE)

main96940-33005iFJ6#,HJ6#198008-198708

main96940-34305iBJ6#198008-198608

47312TUBE, FRONT BRAKE, NO.2

main47312-60180iFJ60..CBU198008-198110

main47312-60181iFJ62..IV4198411-198708

main47312-60190iFJ60..CBU198008-198210

FR DISC BRAKE

main47312-60191iFJ61,HJ60..CBU198210-198411

FR DISC BRAKE

main47312-60192iFJ62,HJ6#..CBU198411-198708

FR DISC BRAKE

main47312-60250iBJ60198008-198110

main47312-60260iBJ60198008-198210

FR DISC BRAKE

main47312-60261iBJ61198210-198411

FR DISC BRAKE

main47312-60262iBJ61198411-198608

FR DISC BRAKE

main47312-60300iFJ6#..IV4198011-198411

47313TUBE, FRONT BRAKE, NO.3

main47313-60090iFJ6#,HJ60198008-198411

main47313-60091iFJ62,HJ6#..CBU198411-198708

main47313-60110iBJ6#198008-198411

main47313-60111iBJ61198411-198608

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main96940-39855×2iBJ6#,FJ6#,HJ6#198008-198708

47314TUBE, FRONT BRAKE, NO.4

main47315-60260iFJ6#,HJ60198008-198411

main47315-60261iFJ62,HJ6#198411-198601

main47315-60262iFJ62,HJ6#198601-198608

main47315-60270iBJ6#198008-198411

main47315-60271iBJ61198411-198510

main47315-60272iBJ61198510-198601

main47315-60273iBJ61198601-198608

main47315-60340iFJ62,HJ6#198608-198708

47315TUBE, FRONT BRAKE, NO.5

main47316-60140iFJ6#,HJ60198008-198411

main47316-60141iFJ62,HJ60198411-198510

main47316-60150iBJ6#198008-198411

main47316-60151iBJ61198411-198601

main47316-60152iBJ61198601-198608

main47316-60210iFJ62,HJ6#198510-198601

main47316-60211iFJ62,HJ6#198601-198608

main47316-60310iFJ62,HJ6#198608-198708

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main96940-33605iBJ6#,FJ6#,HJ60198008-198411

main96940-33805iBJ61,FJ62,HJ6#198411-198708

47321TUBE, REAR BRAKE, NO.1

main47321-30050iBJ61,FJ61,HJ60198210-198411

main47321-30120iBJ61,FJ62,HJ6#198411-198708

main47321-60100iBJ60,FJ60198008-198210

47322TUBE, REAR BRAKE, NO.2

main47322-60080iFJ60..CBU198008-198110

main47322-60081iFJ62..IV4198411-198708

main47322-60090iFJ60..CBU198008-198210

FR DISC BRAKE

main47322-60091iFJ61,HJ60..CBU198210-198411

main47322-60092iFJ62,HJ6#..CBU198411-198708

main47322-60150iBJ60198008-198110

main47322-60160iBJ60198008-198210

FR DISC BRAKE

main47322-60161iBJ61198210-198411

main47322-60162iBJ61198411-198608

main47322-60200iFJ6#..IV4198011-198411

47323TUBE, REAR BRAKE, NO.3

main47323-60030iBJ6#,FJ6#,HJ60198008-198411

main47323-60031iBJ61,FJ62,HJ6#..CBU198411-198708

47325TUBE, REAR BRAKE, NO.5

main47325-60010iBJ6#,FJ6#,HJ60198008-198411

main47325-60011iBJ61,FJ62,HJ6#198411-198608

main47325-60100iFJ62,HJ6#198608-198708

47326TUBE, REAR BRAKE, NO.6

main47326-60010iBJ6#,FJ6#,HJ60198008-198411

main47326-60011iBJ61,FJ62,HJ6#198411-198608

main47326-60110iFJ62,HJ6#198608-198708

47341BTUBE, WHEEL CYLINDER, FRONT RH NO.1

main47341-60020iBJ60,FJ60198008-198011

FR DRUM BRAKE

main47341-60021iBJ60,FJ60..CBU198011-198110

FR DRUM BRAKE

main47341-60030iBJ6#,FJ6#,HJ60..CBU198008-198408

FR DISC BRAKE

main47341-60031iBJ61,FJ6#,HJ6#..CBU198408-198708

FR DISC BRAKE

47342TUBE, WHEEL CYLINDER, FRONT RH NO.2

main47342-60010iBJ60,FJ60198008-198011

main47342-60011iBJ60,FJ60..CBU198011-198110

47343ATUBE, WHEEL CYLINDER, FRONT LH NO.1

main47343-60010iBJ60,FJ60198008-198011

FR DRUM BRAKE

main47343-60011iBJ60,FJ60..CBU198011-198110

FR DRUM BRAKE

main47343-60020iBJ6#,FJ6#,HJ60..CBU198008-198408

FR DISC BRAKE

main47343-60021iBJ61,FJ6#,HJ6#..CBU198408-198708

FR DISC BRAKE

47344TUBE, WHEEL CYLINDER, FRONT LH NO.2

main47342-60010iBJ60,FJ60198008-198011

main47342-60011iBJ60,FJ60..CBU198011-198110

9699110080

main96991-10080

18 parts on this diagram · 5 diagrams in section
