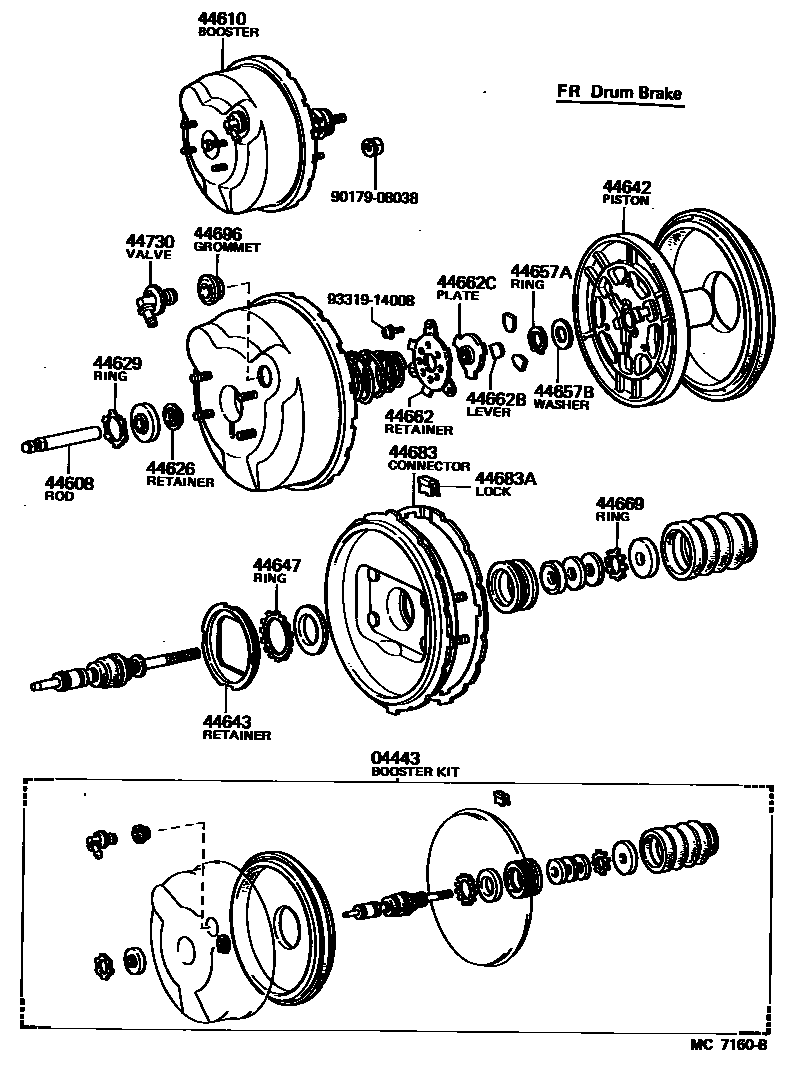

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1

04443BOOSTER KIT, BRAKE

main04443-60050iFJ60..CBU198008-198110

FR DRUM BRAKE

main04443-60060iFJ6#198008-198411

FR DISC BRAKE

main04443-60090iBJ60198008-198110

FR DRUM BRAKE

main04443-60100iBJ6#,HJ60198008-198411

FR DISC BRAKE

main04443-60230iFJ62198411-198510

FR DISC BRAKE

main04443-60240iBJ61,HJ60198411-198510

FR DISC BRAKE

main04443-60241iBJ61,HJ6#198510-198708

FR DISC BRAKE

main04443-60280iFJ62..CBU198510-198708

FR DISC BRAKE

44608PUSH ROD SUB-ASSY, BOOSTER

main44606-12520iBJ61,FJ62,HJ6#198411-198708

main44606-35100iBJ6#,FJ6#,HJ60198008-198411

44610BOOSTER ASSY, BRAKE

main44610-60060iFJ60..CBU198008-198110

FR DRUM BRAKE

main44610-60070iFJ60..IV4198011-198210

main44610-60071iFJ61..IV4198210-198411

main44610-60080iFJ60..CBU198008-198210

FR DISC BRAKE

main44610-60110iBJ60198008-198110

FR DRUM BRAKE

main44610-60120iBJ6#,HJ60198008-198411

FR DISC BRAKE

main44610-60240iFJ61..CBU198210-198411

FR DISC BRAKE

main44610-60350iFJ62198411-198510

FR DISC BRAKE

main44610-60400iBJ61,HJ60198411-198510

FR DISC BRAKE

main44610-60401iBJ61,HJ6#198510-198708

FR DISC BRAKE

main44610-60480iFJ62..CBU198510-198708

FR DISC BRAKE

44626RETAINER, BOOSTER ROD CUP

main44626-60010iBJ6#,FJ6#,HJ60198008-198411

44629RING, CIRCULAR INTERNAL

main44628-28120iBJ61,FJ62,HJ6#198411-198708

main44628-60010iBJ6#,FJ6#,HJ60198008-198411

44642PISTON, BRAKE BOOSTER

main44642-14170iBJ60,FJ60..CBU198008-198110

FR DRUM BRAKE

main44642-30030iBJ6#,FJ6#,HJ60198008-198411

FR DISC BRAKE

main44642-60280iBJ61,FJ62,HJ60..CBU198411-198510

FR DISC BRAKE

main44642-60450iFJ62..IV4198608-198708

FR DISC BRAKE

44643RETAINER, DIAPHRAGM

main44643-60010iBJ6#,FJ6#,HJ60198008-198411

44647RING, CIRCULAR INTERNAL(FOR BOOSTER BODY SEAL STOPPER)

main44629-30090iBJ6#,FJ6#,HJ60198008-198411

44657ARING, SNAP(FOR BOOSTER AIR VALVE STOPPER)

main96150-01600iBJ6#,FJ6#,HJ60198008-198411

44657BWASHER, PLATE(FOR BOOSTER AIR VALVE STOPPER)

main44645-20100iBJ60,FJ60198008-198110

FR DRUM BRAKE

44662RETAINER, REACTION, NO.1

main44662-20460iBJ6#,FJ6#,HJ60198008-198411

FR DISC BRAKE

main44662-35100iBJ60,FJ60..CBU198008-198110

FR DRUM BRAKE

44662BLEVER, REACTION

main44661-35100×3iBJ6#,FJ6#,HJ60198008-198411

44662CPLATE, REACTION, NO.1

main44607-25100iBJ6#,FJ6#,HJ60198008-198411

FR DISC BRAKE

main44607-27050iBJ60,FJ60..CBU198008-198110

FR DRUM BRAKE

44669RING, CIRCULAR INTERNAL(FOR AIR CLEANER ELEMENT STOPPER)

main44669-60010iBJ6#,FJ6#,HJ60198008-198411

44683CONNECTOR, BOOSTER BODY

main44682-20150iBJ60,FJ60198008-198110

FR DRUM BRAKE

44683ALOCK, CONNECTOR

main44683-20100iBJ60,FJ60198008-198110

FR DRUM BRAKE

44696GROMMET, CHECK VALVE

main90480-24439iFJ6#198008-198708

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-20060iFJ62198411-198708

main44730-22070iFJ6#198008-198411

main44730-60040iBJ6#,HJ6#198008-198708

9017908038

main90179-08038

9331914008

main93319-14008

20 parts on this diagram · 9 diagrams in section
