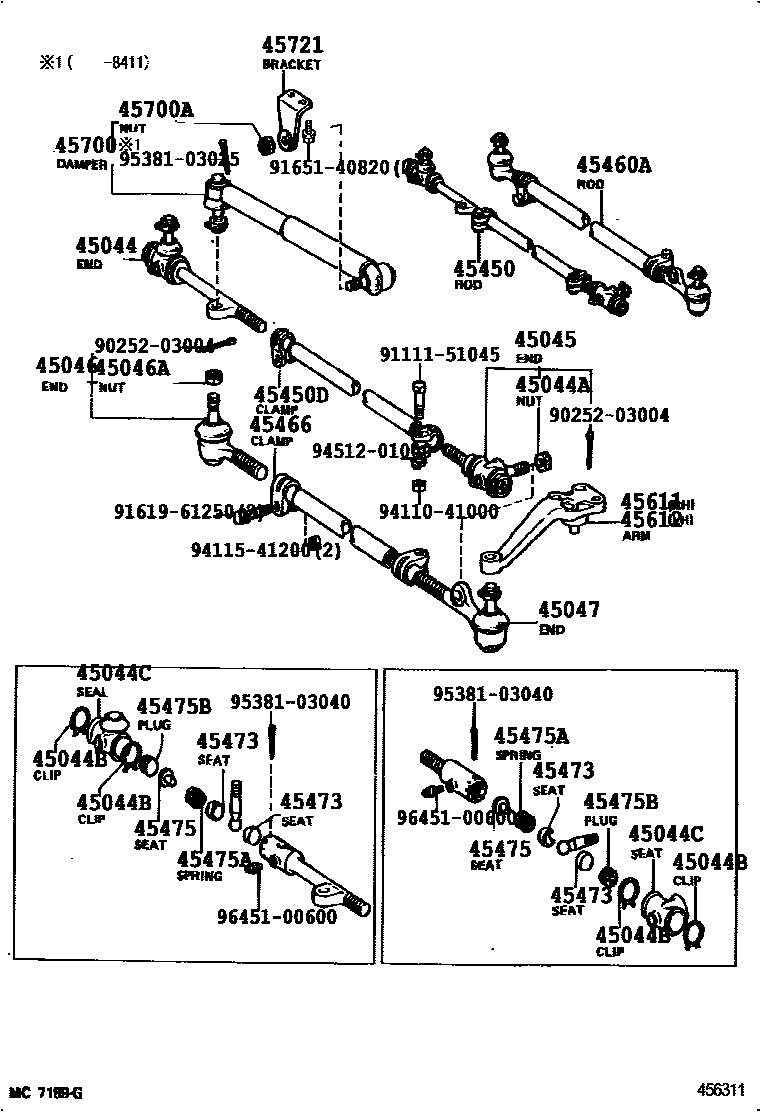

FRONT STEERING GEAR & LINK
45044END SUB-ASSY, STEERING RELAY ROD, RH
45044ANUT, CASTLE(FOR RELAY ROD)
45044BRING, SET(FOR RELAY ROD)
45044CSEAL, DUST(FOR RELAY ROD)
RH
LH
45045END SUB-ASSY, STEERING RELAY ROD, LH
45046END SUB-ASSY, TIE ROD, RH
45046ANUT, CASTLE(FOR TIE ROD END)
45047END SUB-ASSY, TIE ROD, LH
45450ROD ASSY, STEERING RELAY
45450DCLAMP, STEERING RELAY ROD END
45460AROD ASSY, TIE
45466CLAMP, TIE ROD END
45473SEAT, BALL STUD
45475SEAT, STEERING LINK JOINT SPRING
45475ASPRING, COMPRESSION(FOR STEERING LINK JOINT)
45475BPLUG, STRAIGHT SCREW(FOR STEERING LINK JOINT)
45611ARM, STEERING KNUCKLE, RH
45612ARM, STEERING KNUCKLE, LH
45700DAMPER ASSY, STEERING
45700ANUT(FOR STEERING DAMPER)
45721BRACKET, STEERING DAMPER
9025203004
main90252-03004
9111151045
main91111-51045
9161961250
main91619-61250
9165140820
main91651-40820
9411041000
main94110-41000
9411541200
main94115-41200
9451201000
main94512-01000
9538103025
main95381-03025
9538103040
main95381-03040
9645100600
main96451-00600
31 parts on this diagram · 7 diagrams in section
