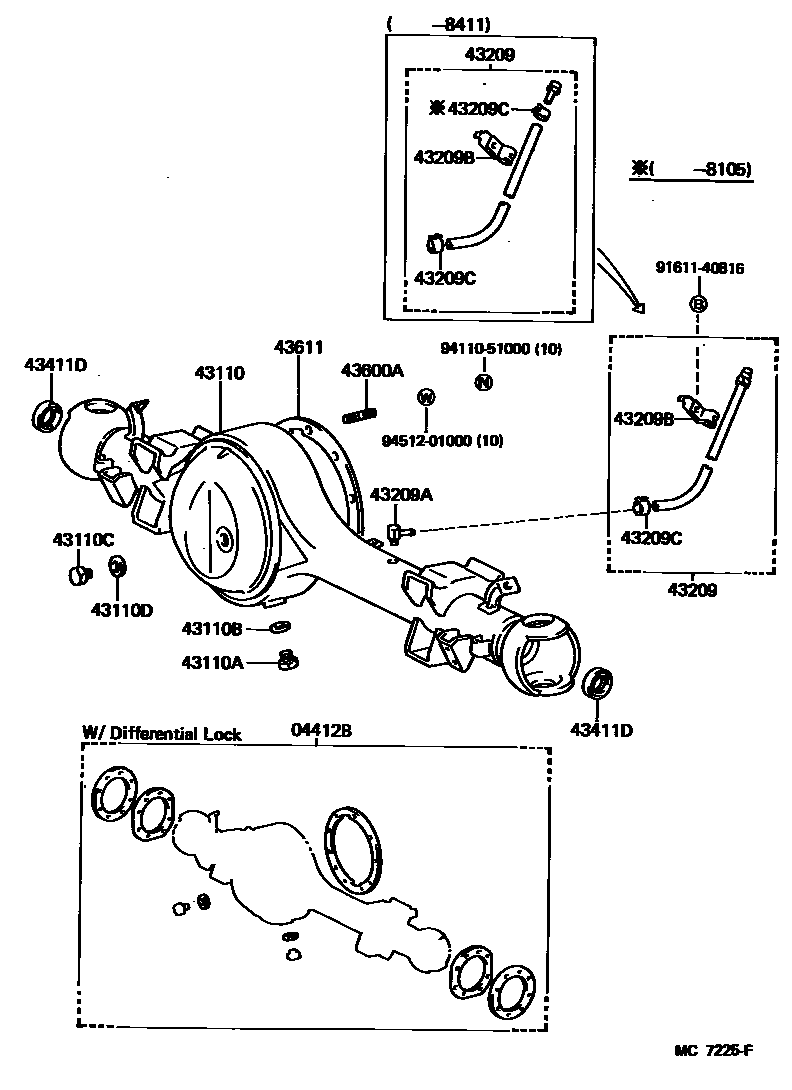

FRONT AXLE HOUSING & DIFFERENTIAL

0001 1 0002 1 0003 1 0004 1 0005 1

04412BGASKET KIT, FRONT DIFFERENTIAL CARRIER

main04412-60020iFJ62,HJ60..CBU198510-198708

W/DIFFERENTIAL LOCK

sub04412-60021

43110HOUSING ASSY, FRONT AXLE

main43110-60140iFJ6#,HJ60198008-198411

main43110-60142iFJ62,HJ60198411-198510

main43110-60143iFJ62,HJ6#198510-198608

main43110-60144iFJ62,HJ6#198608-198708

main43110-60150iBJ6#198008-198411

main43110-60152iBJ61198411-198510

main43110-60153iBJ61198510-198608

main43110-60210iHJ61198510-198608

W/DIFFERENTIAL LOCK

main43110-60211iFJ62,HJ6#..CBU198608-198708

W/DIFFERENTIAL LOCK

43110APLUG SUB-ASSY, DRAIN

main90341-18057iBJ6#,FJ6#,HJ6#198008-198708

43110BGASKET, DRAIN

main12157-10010iBJ6#,FJ6#,HJ6#198008-198708

43110CPLUG (FOR FRONT AXLE HOUSING)

main90341-18006iBJ61,FJ62,HJ6#198411-198708

main90341-18049iBJ6#,FJ6#,HJ60198008-198411

43110DGASKET (FOR FRONT AXLE HOUSING PLUG)

main12157-10010iBJ6#,FJ6#,HJ6#198008-198708

43209HOSE SUB-ASSY, FRONT AXLE BREATHER

main43209-60010iFJ6#198008-198411

sub43209-60011

main43209-60011iFJ62198411-198708

main43209-60020iHJ60198210-198411

sub43209-60021

main43209-60030iBJ6#198008-198411

main43209-60031iBJ61198411-198608

main43209-60060iHJ6#198411-198708

43209AUNION (FOR FRONT AXLE BREATHER HOSE)

main90404-10019iBJ6#,FJ6#,HJ6#198008-198708

43209BCLAMP (FOR FRONT AXLE BREATHER HOSE)

main90461-10387iBJ6#,FJ6#,HJ60198008-198708

main90949-01213iBJ61198411-198608

43209CCLIP, HOSE (FOR FRONT AXLE BREATHER HOSE)

main96132-30600iBJ6#,FJ6#,HJ6#198008-198708

sub96132-51100

43411DSEAL, TYPE T OIL (FOR FRONT DRIVE SHAFT)

main90311-33085iBJ6#,FJ6#,HJ6#198008-198708

43600CARRIER ASSY, FRONT AXLE

main41110-60016iBJ6#198008-198408

*FGR=37:9=4.111

main41110-60016iFJ6#..IV4198011-198411

R=37:9=4.111

main41110-60017iBJ61198408-198411

*FGR=37:9=4.111

sub41110-60018

main41110-60026iFJ6#,HJ60..CBU198008-198408

*FGR=37:10=3.700

main41110-60027iFJ61,HJ60..CBU198408-198411

*FGR=37:10=3.700

sub41110-60028

main41110-60100iHJ61..4FC198608-198708

*FGR=37:10,*AXC=K052

sub41110-60450

main41110-60100iFJ62,HJ6#..5F..CBU198411-198708

*FGR=37:10=3.700

sub41110-60450

main41110-60110iFJ62..IV4198411-198708

*FGR=37:9=4.111

sub41110-60111

sub90949-01692

main41110-60220iHJ61198510-198708

*FGR=37:10,*AXC=K054,W/*DL

sub41110-60221

sub90116-10075

main41110-60230iHJ60..4FC198608-198708

*FGR=37:9,*AXC=K084,W/*DL

sub41110-60231

sub90116-10075

43600ABOLT, STUD (FOR FRONT AXLE DIFFERENTIAL CARRIER SETTING)

main90116-10074iBJ61,FJ6#,HJ6#198212-198708

main90116-10075iBJ61,FJ6#,HJ6#198212-198708

main90116-10103iBJ6#,FJ6#,HJ60198008-198212

main90116-10104iBJ6#,FJ6#,HJ60198008-198212

sub90116-10075

main90116-10122iFJ62,HJ60..CBU198510-198708

43611GASKET, FRONT AXLE DIFFERENTIAL CARRIER

main42181-36010iBJ6#,FJ6#,HJ6#198008-198708

sub42181-60060

main42181-60030iHJ61198510-198708

W/DIFFERENTIAL LOCK

sub42181-60060

9161140816

main91611-40816

9411051000

main94110-51000

9451201000

main94512-01000

17 parts on this diagram · 5 diagrams in section
