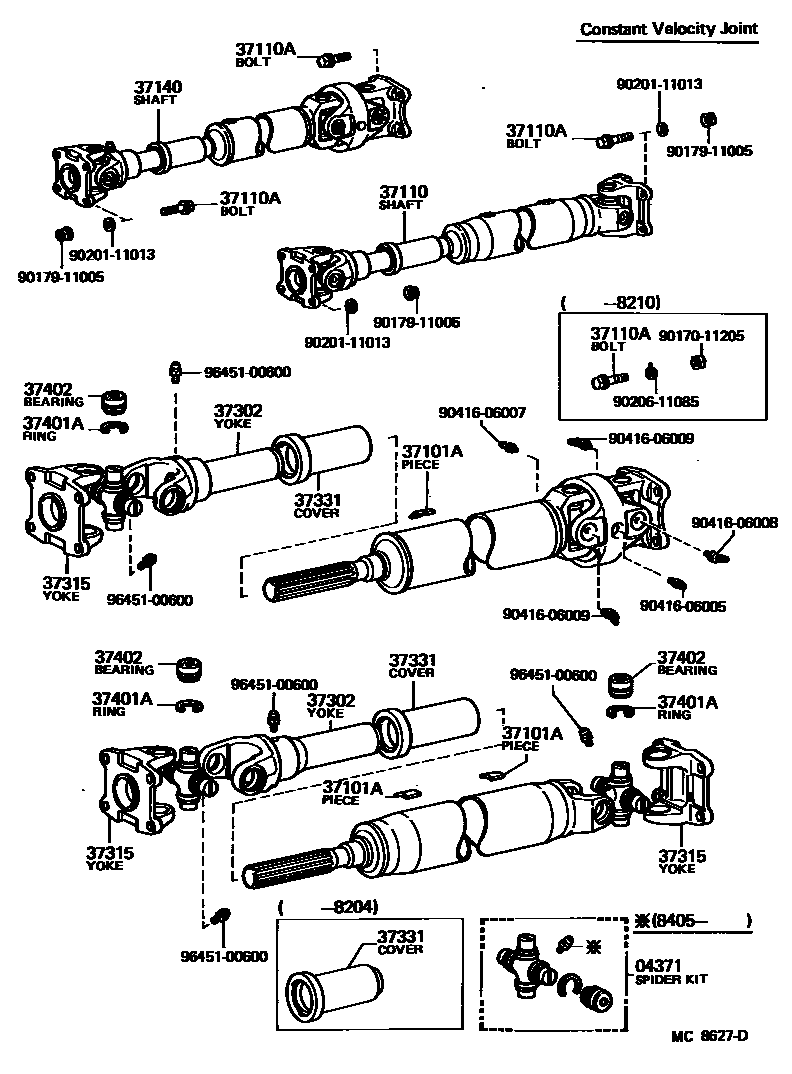

PROPELLER SHAFT & UNIVERSAL JOINT

0001 1 0002 1 0003 1

04371SPIDER KIT, UNIVERSAL JOINT(FOR PROPELLER SHAFT)

main04371-36021×3iBJ6#,FJ6#,HJ60198008-198405

main04371-36030×3iBJ61,FJ61,HJ60198405-198411

sub04371-60210

37101APIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)

main90937-01132iBJ6#,FJ6#,HJ6#198008-198708

main90937-01136iBJ6#,FJ6#,HJ6#198008-198608

main90937-01140iBJ6#,FJ6#,HJ6#198008-198608

main90937-01147iBJ6#,FJ6#,HJ6#198008-198708

main90937-01148iBJ6#,FJ6#,HJ6#198008-198708

main90937-01149iBJ6#,FJ6#,HJ6#198008-198708

main90937-01150iBJ6#,FJ6#,HJ6#198008-198708

main90937-01151iBJ6#,FJ6#,HJ6#198008-198708

main90937-01152iBJ6#,FJ6#,HJ6#198008-198708

main90937-01153iBJ6#,FJ6#,HJ6#198008-198608

main90937-01154iBJ6#,FJ6#,HJ6#198008-198608

main90937-01155iBJ6#,FJ6#,HJ6#198008-198608

main90937-01156iBJ6#,FJ6#,HJ6#198008-198608

main90937-01157iBJ6#,FJ6#,HJ6#198008-198608

main90937-01158iBJ6#,FJ6#,HJ6#198008-198608

main90937-01184iBJ6#,FJ6#,HJ6#198008-198608

main90937-01191iBJ6#,FJ6#,HJ6#198008-198708

main90937-01192iBJ6#,FJ6#,HJ6#198008-198708

main90937-01193iBJ6#,FJ6#,HJ6#198008-198708

main90937-01194iBJ6#,FJ6#,HJ6#198008-198708

main90937-01198iBJ6#,FJ6#,HJ6#198008-198608

main90937-01199iBJ6#,FJ6#,HJ6#198008-198608

main90937-01200iBJ6#,FJ6#,HJ6#198008-198608

37110SHAFT ASSY, PROPELLER

main37110-36520iBJ61,HJ60..VLS198408-198411

main37110-60240iBJ61,FJ61..VKC..CBU198210-198408

main37110-60241iBJ61,FJ61..VKC..CBU198408-198411

main37110-60250iFJ6#..IV4198011-198408

main37110-60251iFJ61..IV4198408-198411

main37110-60330iBJ61,HJ60..VLS198210-198408

main37110-60410iHJ6#..4FC198411-198708

37110ABOLT (FOR PROPELLER SHAFT)

main90105-11010×12iBJ60,FJ60198008-198210

sub90105-11H01

main90105-11013×12iBJ61,FJ6#,HJ6#198408-198708

main90105-11014×12iBJ61,FJ61,HJ60198210-198408

37140SHAFT ASSY, PROPELLER, FRONT

main37140-60120iBJ60,FJ60198008-198207

main37140-60121iBJ60,FJ60..CBU198207-198210

main37140-60122iFJ61..IV4198408-198411

main37140-60161iBJ61,HJ60..VLS198210-198408

main37140-60162iBJ61,HJ60..VLS198408-198411

main37140-60200iHJ6#..4FC198411-198708

main37140-60220iFJ62..IV4198411-198708

37302YOKE SUB-ASSY, UNIVERSAL JOINT SLEEVE

main37302-36010iBJ6#,FJ6#,HJ60198008-198509

RR SHAFT

main37302-36020iBJ61,FJ62,HJ6#198509-198708

RR SHAFT

main37302-60040iBJ6#,FJ6#,HJ60198008-198411

FR SHAFT

main37302-60050iBJ61,FJ62,HJ6#198411-198708

FR SHAFT

37315YOKE, UNIVERSAL JOINT FLANGE

main37315-36010×3iBJ6#,FJ6#,HJ60198008-198408

main37315-36020×3iBJ61,FJ61,HJ60198408-198411

sub37315-60090

37331COVER, SLIDING SHAFT DUST

main37305-36010×2iBJ6#,FJ6#,HJ60198008-198411

37401ARING, HOLE SNAP (FOR SPIDER BEARING)

main90520-29002×12iBJ6#,FJ6#,HJ60198008-198405

main90520-29024×12iBJ61,FJ6#,HJ6#198405-198708

main90520-29025×12iBJ61,FJ6#,HJ6#198405-198708

main90520-29026×12iBJ61,FJ6#,HJ6#198405-198708

main90520-29027×12iBJ61,FJ6#,HJ6#198405-198708

main90520-29286×12iBJ6#,FJ6#,HJ60198008-198405

main90520-29287×12iBJ6#,FJ6#,HJ60198008-198405

main90520-29288×12iBJ6#,FJ6#,HJ60198008-198405

37402BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER

main37402-36060×12iBJ6#,FJ6#,HJ60198008-198405

main37402-36080×12iBJ61,FJ6#,HJ6#198405-198708

9017011205

main90170-11205

9017911005

main90179-11005

9020111013

main90201-11013

9020611085

main90206-11085

9041606005

main90416-06005

9041606007

main90416-06007

9041606008

main90416-06008

9041606009

main90416-06009

9645100600

main96451-00600

19 parts on this diagram · 3 diagrams in section
