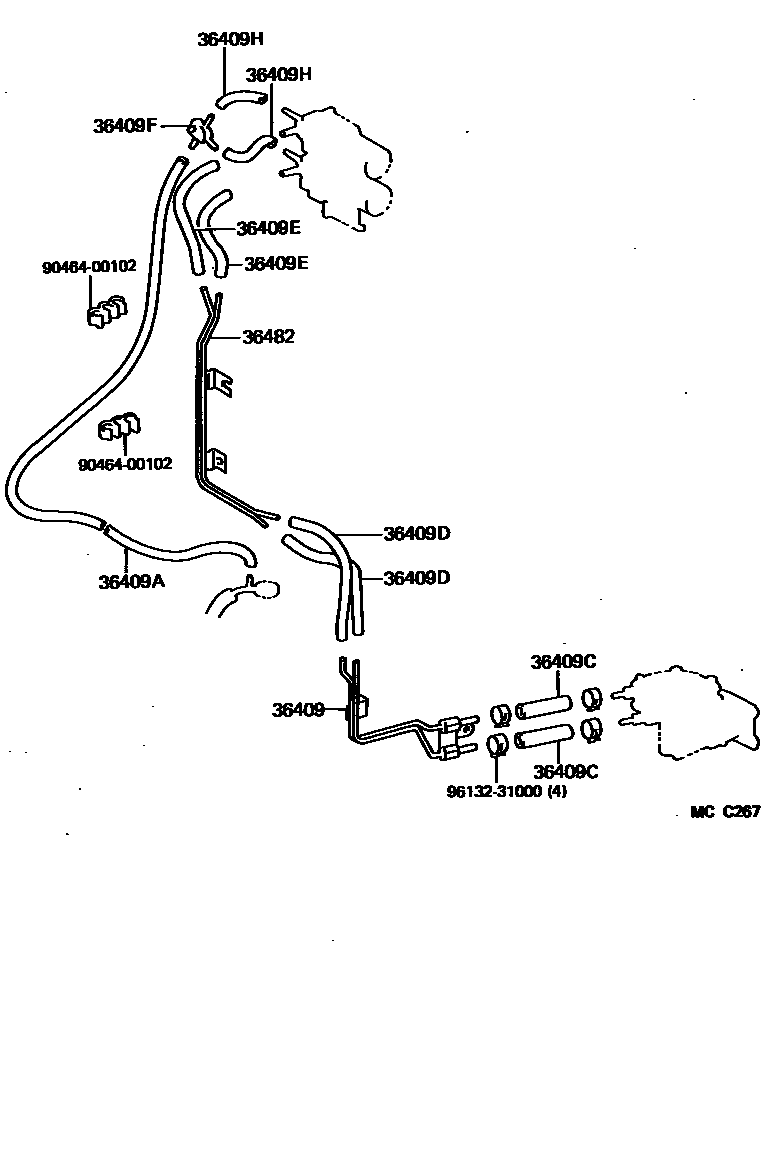

TRANSFER VACUUM PIPING

0001 1 0002 1 0003 1

36409SUPPORT SUB-ASSY, VACUUM TUBE UNION

main36409-60040iFJ62,HJ6#..CBU198411-198708

main36409-60050iBJ61198411-198608

36409AHOSE (FOR VACUUM TUBE)

main90445-08207iHJ60198411-198708

L=1070

main95411-19995iHJ61198510-198708

*H,L=850

36409CHOSE, VACUUM, NO.1 (FOR FRONT DRIVE SHIFT)

main95441-09200×2iBJ61,FJ62,HJ6#..MTM..CBU198411-198708

main95441-09340×2iHJ6#..4FC198411-198708

36409DHOSE, VACUUM, NO.2 (FOR FRONT DRIVE SHIFT)

main95411-19930×2iBJ61198411-198608

36409EHOSE, VACUUM, NO.3 (FOR FRONT DRIVE SHIFT)

main95411-19930×2iFJ62,HJ6#..CBU198411-198708

main95411-19960×2iBJ61198411-198608

36409FWAY, 3, NO.1 (FOR FRONT DRIVE SHIFT)

main90413-04005iBJ61,FJ62,HJ6#..CBU198411-198708

36409HHOSE, VACUUM, NO.5 (FOR FRONT DRIVE SHIFT)

main95411-19930×2iBJ61,FJ62,HJ6#..CBU198411-198708

36482TUBE, FRONT DRIVE VACUUM, NO.2

main36482-60100iFJ62,HJ6#..CBU198411-198708

main36482-60110iBJ61198411-198608

9046400102

main90464-00102

9613231000

main96132-31000

10 parts on this diagram · 3 diagrams in section
