TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

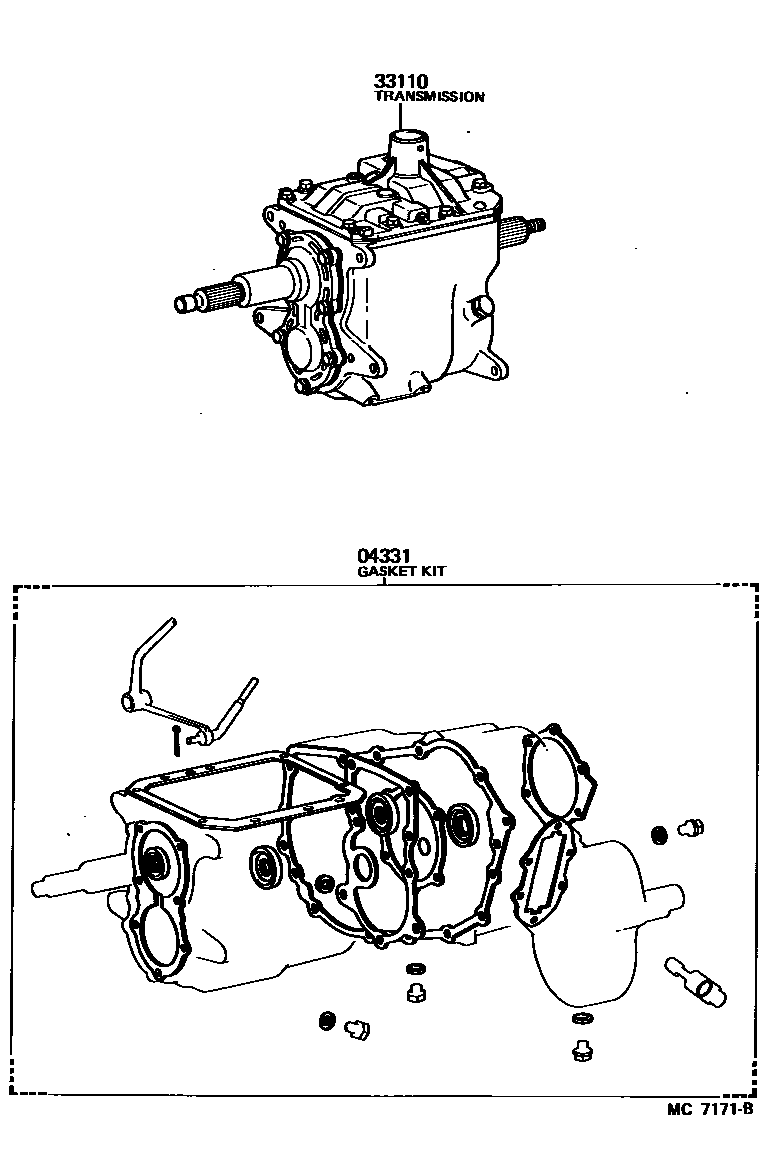

Parts diagram

04331GASKET KIT, MANUAL TRANSMISSION OVERHAUL

main04331-60040i198008-198210

main04331-60041i198210-198411

main04331-60050i198011-198210

main04331-60060i198210-198411

main04331-60070i198411-198510

main04331-60071i198510-198608

main04331-60080i198411-198510

main04331-60081i198510-198608

main04331-60160i198608-198708

33110TRANSMISSION ASSY, MANUAL

main33020-60900i198008-198201

main33030-60110i198008-198208

main33030-60111i198208-198411

main33030-60161i198011-198210

main33030-60162i198210-198411

main33030-60290i198201-198208

main33030-60291i198208-198411

main33030-60350i198510-198708

main33030-60410i198210-198411

main33030-60450i198510-198708

main33030-60480i198210-198411

main33030-60490i198510-198608

main33030-60500i198510-198608

main33030-60510i198510-198708

main33030-60580i198411-198510

main33030-60610i198411-198510

main33030-60620i198411-198510

main33030-60630i198411-198510

main33030-60640i198411-198510

main33030-60660i198510-198708

2 parts on this diagram · 2 diagrams in section
