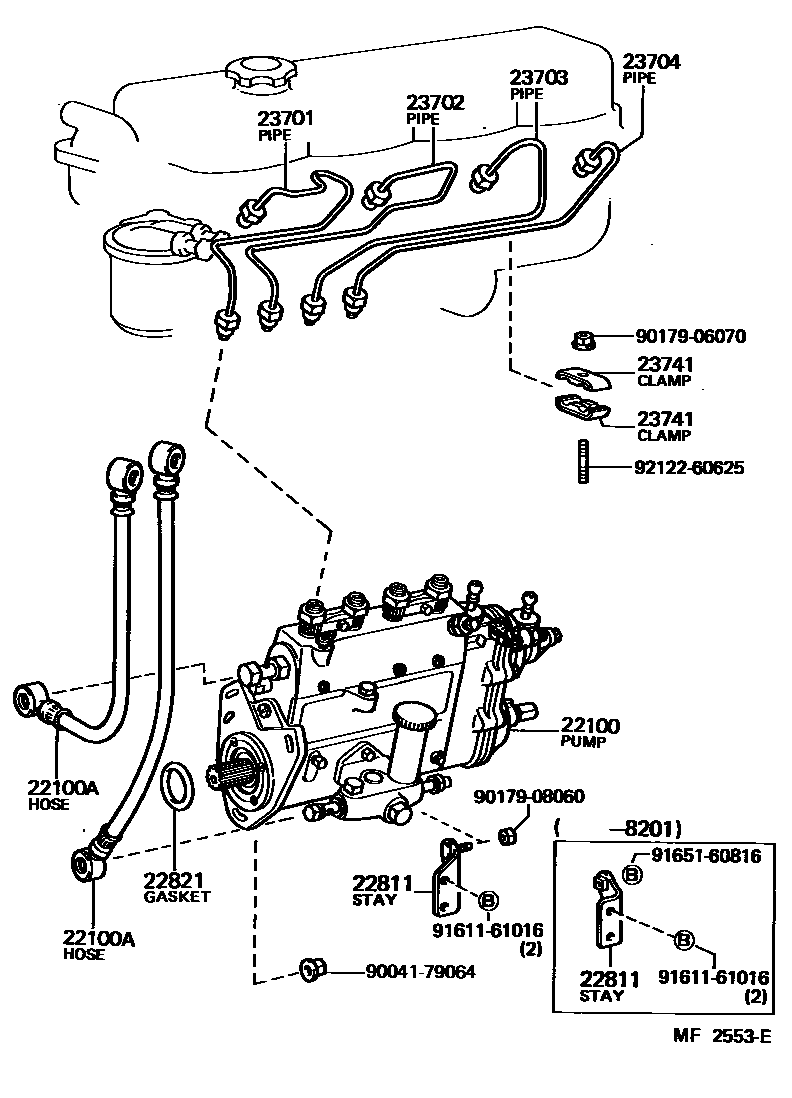

INJECTION PUMP ASSEMBLY

0001 1 0002 1 0003 1 0004 1 0005 1

22100PUMP ASSY, INJECTION OR SUPPLY

main22100-58010i3B..BJ60198008-198201

main22100-58011i3B..BJ60198201-198210

main22100-58200i3B..BJ61198210-198608

main22100-68070i2H..HJ60198210-198411

main22100-68071i2H..HJ60..5F198411-198708

main22100-68080i2H..HJ60198210-198411

COLD SPEC

main22100-68081i2H..HJ60..5F198411-198708

COLD SPEC

main22100-68120i2H..HJ60..4FC198411-198708

main22100-68140i2H..HJ60..4FC198411-198708

COLD SPEC

main22100-68150i12HT..HJ61..5F198510-198708

main22100-68160i12HT..HJ61..5F198510-198708

COLD SPEC

main22100-68170i12HT..HJ61..4FC198608-198708

main22100-68180i12HT..HJ61..4FC198608-198708

COLD SPEC

22100AHOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)

main23801-56040i3B..BJ60198008-198210

FEED PUMP TO FILTER

main23801-68030i12HT..HJ61198510-198708

main23802-56040i3B..BJ60198008-198210

main23802-68020i2H..HJ60198210-198708

main23906-68010i12HT..HJ61198510-198708

main95332-08030i3B..BJ61198408-198411

22811STAY, INJECTION PUMP, NO.1

main22811-56010i3B..BJ60198008-198201

main22811-56011i3B..BJ60198201-198210

main22811-56020i3B..BJ61198210-198411

main22811-58010i3B..BJ61198411-198608

main22811-68010i2H..HJ60198210-198708

main22811-68020i12HT..HJ61198510-198708

22821GASKET, INJECTION PUMP

main90301-49003i3B..BJ61198210-198608

main90301-77001i3B..BJ60198008-198210

23701PIPE SUB-ASSY, INJECTION, NO.1

main23701-56030i3B..BJ60198008-198210

main23701-56040i3B..BJ61198210-198608

main23701-68010i2H..HJ60198210-198708

main23701-68020i12HT..HJ61198510-198708

23702PIPE SUB-ASSY, INJECTION, NO.2

main23702-56030i3B..BJ60198008-198210

main23702-56040i3B..BJ61198210-198608

main23702-68010i2H..HJ60198210-198708

main23702-68020i12HT..HJ61198510-198708

23703PIPE SUB-ASSY, INJECTION, NO.3

main23703-56020i3B..BJ60198008-198210

main23703-56040i3B..BJ61198210-198608

main23703-68010i2H..HJ60198210-198708

main23703-68020i12HT..HJ61198510-198708

23704PIPE SUB-ASSY, INJECTION, NO.4

main23704-56020i3B..BJ60198008-198210

main23704-56040i3B..BJ61198210-198608

main23704-68010i2H..HJ60198210-198708

main23704-68020i12HT..HJ61198510-198708

23741CLAMP, INJECTION PIPE, NO.1

main23741-48010×10i12HT,2H..HJ6#198210-198708

main23741-56010×6i3B..BJ6#198008-198708

9004179064

main90041-79064

9017906070

main90179-06070

9017908060

main90179-08060

9161161016

main91611-61016

9165160816

main91651-60816

9212260625

main92122-60625

15 parts on this diagram · 5 diagrams in section
