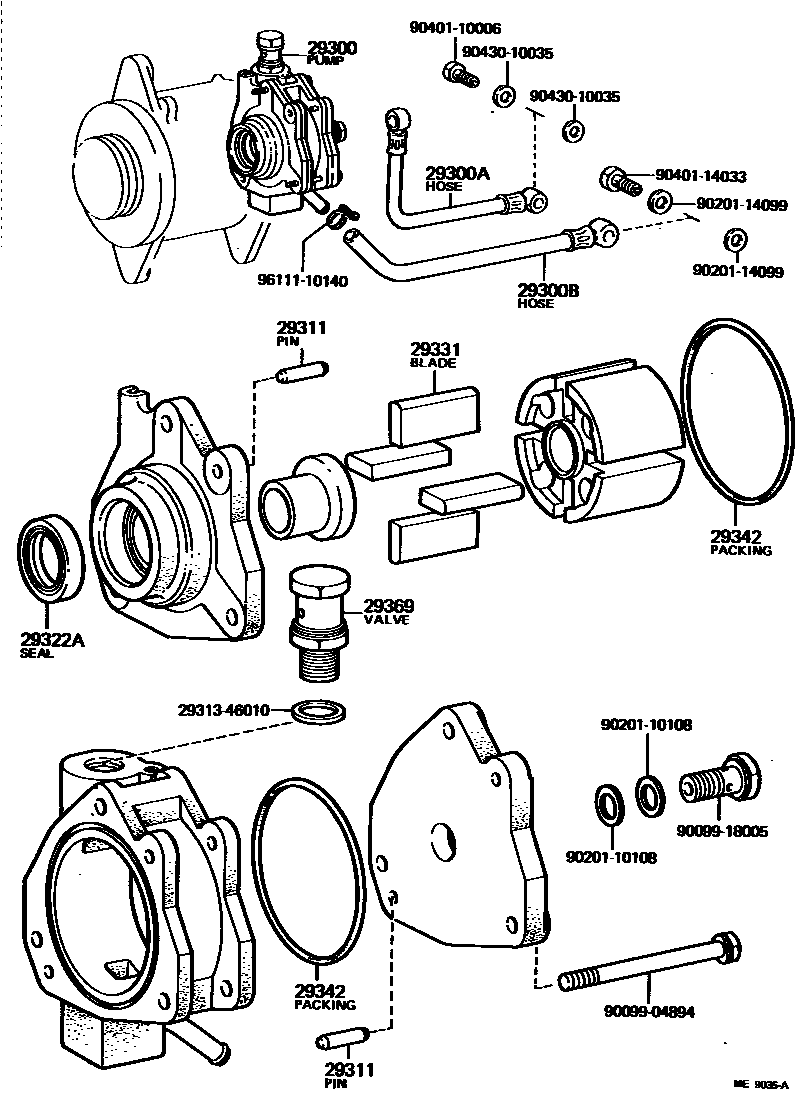

VACUUM PUMP

0001 1 0002 1

29300PUMP ASSY, VACUUM

main29300-56070i3B..BJ60198110-198204

W/PS

main29300-57011i3B..BJ60..VKC198008-198204

main29300-68010i12HT,2H..HJ6#198210-198708

29300AHOSE, VACUUM PUMP OIL INLET

main90923-02062i3B..BJ60..VKC198008-198204

main90923-02070i12HT..HJ61198510-198708

main90923-02072i3B..BJ6#198204-198608

main90923-02100i2H..HJ60198411-198708

29300BHOSE, VACUUM PUMP OIL OUTLET

main90923-02065i3B..BJ60..VKC198008-198204

main90923-02073i3B..BJ60198110-198204

W/PS

main90923-02079i12HT,2H..HJ6#198210-198708

29311PIN, VACUUM PUMP DOWEL, NO.1

main29311-76010i3B..BJ60198110-198204

W/PS

main90099-08082×4i3B..BJ60..VKC198008-198204

29322ASEAL, VACUUM PUMP OIL

main90099-15017i3B..BJ60..VKC198008-198204

29331BLADE, VACUUM PUMP, A

main29331-56010×4i3B..BJ60..VKC198008-198204

main29331-56070×4i3B..BJ60198110-198204

W/PS

29342PACKING, VACUUM PUMP

main90099-14055i3B..BJ6#198204-198608

FRONT

main96740-02063i3B..BJ60198110-198204

W/PS

29369VALVE SUB-ASSY, CHECK

main29369-54010i3B..BJ60..VKC198008-198204

main29369-56070i3B..BJ60198110-198204

W/PS

2931346010

main29313-46010

9009904894

main90099-04894

9009918005

main90099-18005

9020110108

main90201-10108

9020114099

main90201-14099

9040110006

main90401-10006

9040114033

main90401-14033

9043010035

main90430-10035

9611110140

main96111-10140

17 parts on this diagram · 2 diagrams in section
