ALTERNATOR

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

27020ALTERNATOR ASSY

main27020-56110i3B..BJ6#..VKC198204-198608

main27020-56180i3B..BJ6#198110-198411

main27020-56310i3B..BJ61..VKC198411-198608

main27020-56320i3B..BJ61198411-198608

main27020-57081i3B..BJ60..VKC198008-198204

24V 25A

main27020-61033i2F,3F..FJ6#198008-198708

main27020-61150i2F..FJ6#198008-198411

main27020-61180i3F..FJ62198411-198708

main27020-68040i2H..HJ60198210-198411

main27020-68130i12HT,2H..HJ6#198411-198708

main27020-68150i12HT,2H..HJ6#198510-198708

27039COVER, ALTERNATOR REAR END

main27039-15010i2F,3F..FJ6#198008-198708

12V 50A,55A

main27039-18011i2F..FJ6#198008-198411

12V 40A

27212RING, SPACE(FOR ALTERNATOR ROTOR)

main27212-39050i2F..FJ6#198008-198411

12V 40A

main27333-57060i3B..BJ60198110-198204

24V 25A,W/PS

main27412-45070i2F,3F..FJ6#198008-198708

12V 50A,55A

main27412-54040i12HT,2H..HJ6#198510-198708

24V 40A

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-18010i2F..FJ6#198008-198411

12V 40A

main27310-26101i2F,3F..FJ6#198008-198708

12V 50A,55A

main27310-56110i3B..BJ6#..VKC198204-198608

24V 25A,30A

main27310-56180i3B..BJ6#198110-198608

24V 25A,30A,W/PS

main27310-57061i3B..BJ60..VKC198008-198204

24V 25A

main27310-68140i12HT,2H..HJ6#198510-198708

24V 40A

27310ACOLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)

main27412-31040i2F,3F..FJ6#198008-198708

12V 40A,50A,55A

main27412-57060i12HT,3B,2H..BJ6#,HJ6#198204-198708

24V 25A,30A

main90099-19251i3B..BJ60..VKC198008-198204

24V 25A

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10120i3B..BJ60..VKC198008-198204

24V 25A

main90099-10126i2F,3F..FJ6#198008-198708

12V 40A,50A,55A

main90099-10137i3B..BJ60198110-198204

24V 25A,W/PS

27330ROTOR ASSY, ALTERNATOR

main27330-26050i2F..FJ6#198008-198411

12V 40A

main27330-45070i2F,3F..FJ6#198008-198708

12V 50A

main27330-54050i3B..BJ60..VKC198008-198204

24V 25A

main27330-56110i3B..BJ60198110-198204

24V 25A,W/PS

main27330-63010i3F..FJ62198411-198708

12V 55A

main27330-68150i12HT,2H..HJ6#198510-198708

24V 40A

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10111i2F,3F..FJ6#198008-198708

12V 40A,50A,55A

27330BRING, SNAP(FOR ALTERNATOR ROTOR)

main90099-07048i2F..FJ6#198008-198411

12V 40A

main90099-07103i12HT,3B,2H..BJ6#,HJ6#198204-198708

24V 25A,30A

main90099-07108i3B..BJ60..VKC198008-198204

24V 25A

27351BUSH(FOR ALTERNATOR RECTIFIER END FRAME)

main27351-38051i2F,3F..FJ6#198008-198708

12V 40A,50A,55A

main27351-56013i12HT,3B,2H..BJ6#,HJ6#198008-198708

24V 25A,30A,40A

27359FRAME, ALTERNATOR RECTIFIER END

main27359-13050i2F..FJ6#198008-198411

12V 40A

main27359-24100i2F,3F..FJ6#198008-198708

12V 50A,55A

27362RECTIFIER ASSY, W/BRUSH

main27362-15021i2F,3F..FJ6#198008-198708

12V 50A

main27362-15030i2F..FJ6#198008-198411

12V 40A

main27362-63011i3F..FJ62198411-198708

12V 55A

27371BRUSH, ALTERNATOR

main27371-31011×2i2F,3F..FJ6#198008-198708

12V 40A,50A,55A

main27371-56070×2i12HT,3B,2H..BJ6#,HJ6#198008-198708

24V 25A,30A,40A

27372SPRING, ALTERNATOR BRUSH

main27372-31011×2i2F,3F..FJ6#198008-198708

12V 40A,50A,55A

main27372-56070×2i12HT,3B,2H..BJ6#,HJ6#198008-198708

24V 25A,30A,40A

27410STATOR ASSY, ALTERNATOR

main27410-15030i2F..FJ6#198008-198411

12V 40A

main27410-41080i2F,3F..FJ6#198008-198708

12V 50A

main27410-43040i3F..FJ62198411-198708

12V 55A

main27410-56110i3B..BJ61..VKC198411-198608

24V 25A

main27410-56310i12HT,3B,2H..BJ61,HJ6#198411-198708

24V 30A

main27410-57020i3B,2H..BJ6#,HJ60198008-198411

24V 25A

main27410-68150i12HT,2H..HJ6#198510-198708

24V 40A

27411PULLEY, ALTERNATOR

main27411-57060i3B..BJ60198110-198204

24V 25A,W/PS

main27411-57061i3B..BJ60..VKC198008-198204

24V 25A

main27411-60032i2F,3F..FJ6#198008-198708

12V 40A,50A,55A

main27411-68041i12HT,2H..HJ6#198210-198708

24V 25A,30A

main27411-68140i12HT,2H..HJ6#198510-198708

24V 40A

27441FAN, ALTERNATOR

main27441-34030i2F,3F..FJ6#198008-198708

12V 40A,50A,55A

main27441-54040i3B..BJ60..VKC198008-198204

24V 25A

main27441-54070i12HT,2H..HJ6#198510-198708

24V 40A

main27441-56090i3B..BJ60198110-198204

24V 25A,W/PS

27700AREGULATOR ASSY, GENERATOR

main27700-15011i2F..FJ6#198008-198411

main27700-15020i3F..FJ62198510-198708

main27700-15030i3F..FJ62198411-198510

main27700-57010i3B,2H..BJ6#,HJ60198008-198411

main27700-57050i12HT,2H..HJ6#198510-198708

24V 40A

main27700-57080i3B,2H..BJ61,HJ60198411-198510

main27700-57090i12HT,3B,2H..BJ61,HJ6#198510-198708

2737815030INSULATOR, ALTERNATOR, NO.1

main27378-15030

2737838040INSULATOR, ALTERNATOR, NO.1

main27378-38040

2738745022INSULATOR, TERMINAL

main27387-45022

9009900912

main90099-00912

9009904300

main90099-04300

9009905060

main90099-05060

9009905118

main90099-05118

9009905119

main90099-05119

9010110131

main90101-10131

9011906005

main90119-06005

9017906158

main90179-06158

9161161030

main91611-61030

9411041000

main94110-41000

9451101400

main94511-01400

9451201000

main94512-01000

9461111001

main94611-11001

9461211001

main94612-11001

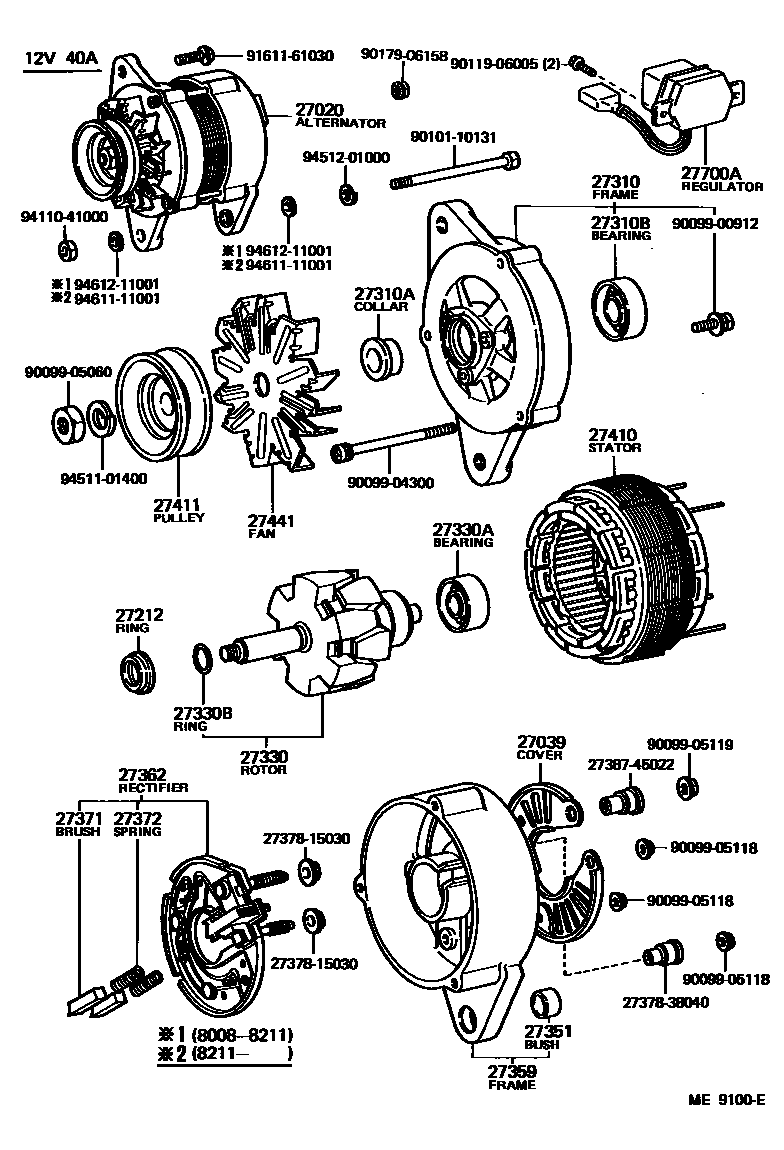

35 parts on this diagram · 6 diagrams in section
