DISTRIBUTOR

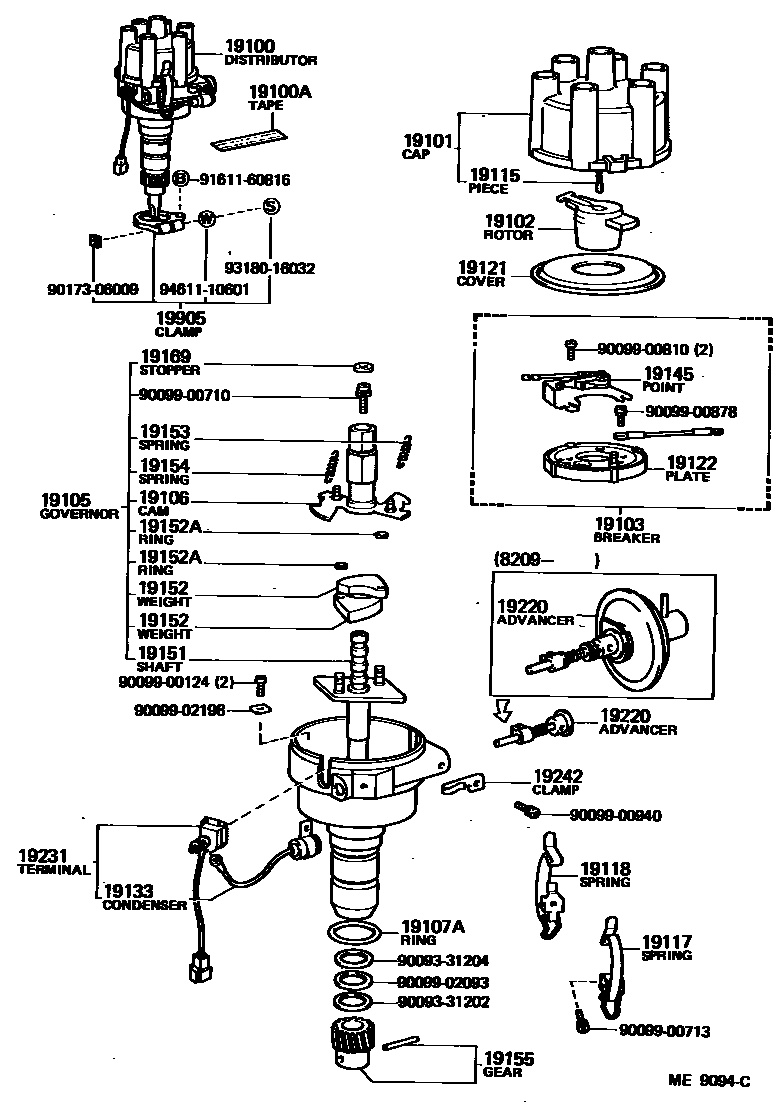

Parts diagram

19100DISTRIBUTOR ASSY

main19100-61120i198008-198209

main19100-61121i198209-198411

main19100-61160i198411-198704

main19100-61180i198704-198708

19100ATAPE, SEALING

main90919-24004i198008-198708

19101CAP SUB-ASSY, DISTRIBUTOR

main19101-45060i198008-198708

19102ROTOR SUB-ASSY, DISTRIBUTOR

main19102-45060i198008-198704

19103BREAKER SUB-ASSY, DISTRIBUTOR

main19103-61023i198008-198708

19105GOVERNOR SUB-ASSY

main19105-61120i198008-198411

main19105-61160i198411-198708

19106CAM SUB-ASSY, DISTRIBUTOR

main19106-41110i198411-198708

main19106-45060i198008-198411

19107ARING, O, DISTRIBUTOR HOUSING

main90099-14020i198008-198708

19115PIECE, DISTRIBUTOR CAP, CENTER

main19115-50010i198008-198708

19117SPRING, DISTRIBUTOR CAP, A

main19117-60080i198008-198708

19118SPRING, DISTRIBUTOR CAP, B

main19118-60070i198008-198708

19121COVER, DUST PROOF

main19121-45060i198008-198704

19122PLATE, STATIONARY, DISTRIBUTOR

main19122-61023i198008-198708

19133CONDENSER, DISTRIBUTOR

main90099-52050i198008-198708

19145POINT, DISTRIBUTOR

main19145-26060i198008-198708

19151SHAFT, GOVERNOR

main19151-61100i198008-198411

main19151-61160i198411-198708

19152WEIGHT, GOVERNOR

main19152-45060×2i198008-198411

main19152-63010×2i198411-198708

19152ARING, SNAP(FOR GOVERNOR WEIGHT)

main90099-07109×2i198008-198411

main90099-07122×2i198411-198708

19153SPRING, GOVERNOR, A

main19153-61130i198008-198411

main19153-61160i198411-198708

19154SPRING, GOVERNOR, B

main19154-61120i198008-198411

main19154-61160i198411-198708

19155GEAR, SPIRAL, DISTRIBUTOR

main19195-60040i198008-198708

19169STOPPER, CAM GREASE

main19169-32010i198008-198705

main19169-63011i198705-198708

19220ADVANCER ASSY, VACUUM, DISTRIBUTOR

main19220-61130i198209-198411

main19220-61160i198411-198708

main19226-61120i198008-198209

19231TERMINAL, DISTRIBUTOR

main19132-61023i198008-198708

19242CLAMP, CORD

main19242-26250i198008-198708

19905CLAMP SUB-ASSY, DISTRIBUTOR

main19905-40010i198008-198708

9009331202

main90093-31202

9009331204

main90093-31204

9009900124

main90099-00124

9009900710

main90099-00710

9009900713

main90099-00713

9009900810

main90099-00810

9009900878

main90099-00878

9009900940

main90099-00940

9009902093

main90099-02093

9009902198

main90099-02198

9017306009

main90173-06009

9161160816

main91611-60816

9318016032

main93180-16032

9461110601

main94611-10601

40 parts on this diagram · 2 diagrams in section
