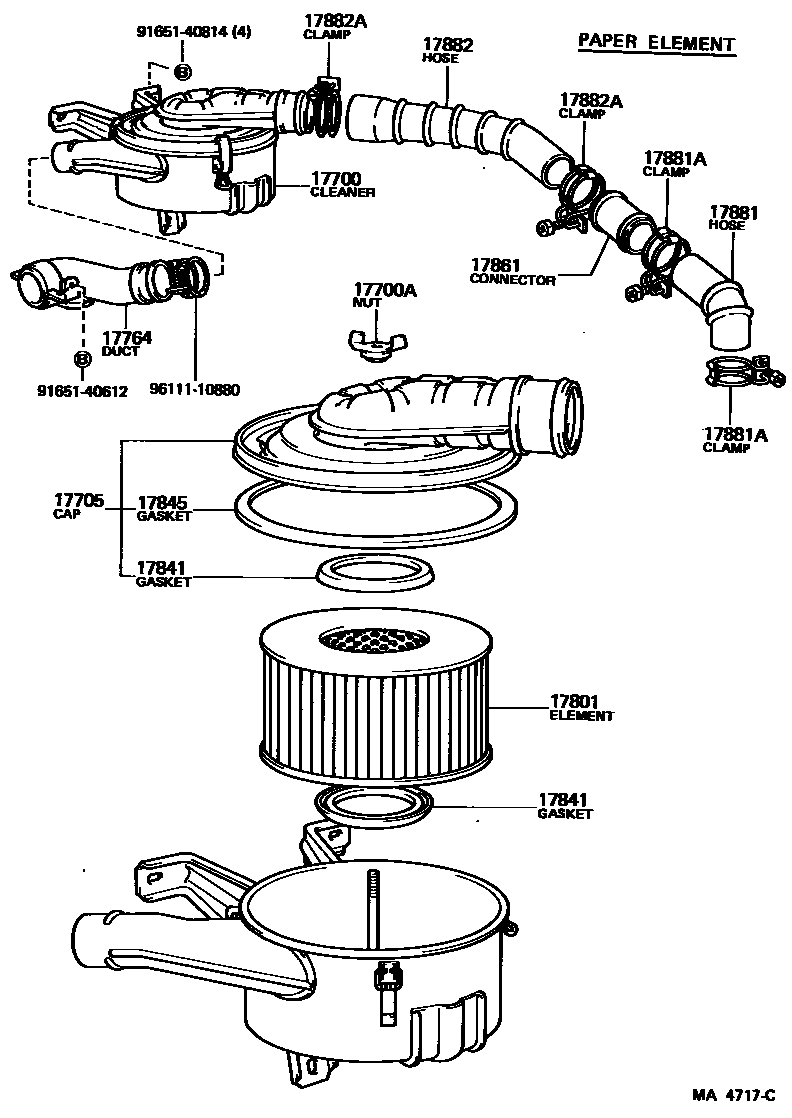

AIR CLEANER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

17700CLEANER ASSY, AIR

main17700-68010i3B..BJ60198008-198210

sub17700-68011

main17700-68011i2H..HJ60198210-198411

sub17700-68140

sub90339-03005

main17700-68140i2H..HJ60198411-198708

main17700-68180i12HT..HJ61198510-198708

main17700-68210i2H..HJ60..4FC198510-198608

COLD SPEC

main17700-68220i2H..HJ60198608-198708

17700ANUT, WING(FOR AIR CLEANER)

main90175-08008i3B..BJ6#198008-198708

17705CAP SUB-ASSY, AIR CLEANER

main17705-68010i3B..BJ6#198008-198411

sub17705-68100

sub90339-03005

main17705-68100i3B..BJ61198411-198708

main17705-68120i12HT..HJ61198510-198708

17764DUCT, AIR CLEANER

main53207-90A00i3B..BJ6#198008-198708

main53207-90A01i12HT,2H..HJ6#198210-198708

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-66020i3B..BJ60198008-198210

sub17801-68020

main17801-68020i3B..BJ61198210-198708

main17801-68030i12HT..HJ61198510-198708

17841GASKET, FILTER ELEMENT

main17841-68010i3B..BJ6#198008-198708

17845GASKET, AIR CLEANER CAP

main17845-61011i12HT,2H..HJ6#198210-198708

*G,L=933

main17845-68010i3B..BJ60198008-198210

sub17845-61011

17861CONNECTOR, INTAKE AIR

main17885-56010i3B..BJ6#198008-198411

main17885-58070i3B..BJ61198411-198608

17881HOSE, AIR CLEANER, NO.1

main17881-58010i3B..BJ6#198008-198411

main17881-58090i3B..BJ61198411-198608

main17881-61050i2F..FJ6#198008-198411

main17881-68010i2H..HJ60198210-198708

main17881-68060i12HT..HJ61198510-198708

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10690i3B..BJ6#198008-198411

main96111-10710i3B..BJ61198411-198608

main96111-10780i2H..HJ60198210-198708

VENTURI SIDE

main96111-10800i2F..FJ6#198008-198411

main96111-10830i12HT,2H..HJ6#198210-198708

AIR CLEANER SIDE

main96111-10900i12HT..HJ61198510-198708

PIPE SIDE

17882HOSE, AIR CLEANER, NO.2

main17342-68010i12HT..HJ61198510-198708

main17881-61060i3F..FJ62198411-198510

sub17881-61061

main17881-61061i3F..FJ62198510-198708

main17882-58010i3B..BJ6#198008-198411

main17882-58070i3B..BJ61198411-198608

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main96111-10690i3B..BJ6#198008-198411

CONNECTOR SIDE,ID=69

main96111-10710i3B..BJ61198411-198608

CONNECTOR SIDE,ID=71

main96111-10800i3F..FJ62198411-198708

main96111-10800i12HT..HJ61198510-198708

TURBO SIDE

main96111-10830i3B..BJ6#198008-198608

AIR CLEANER SIDE, ID=83

main96111-10900i12HT..HJ61198510-198708

PIPE SIDE

9165140612

main91651-40612

9165140814

main91651-40814

9611110880

main96111-10880

15 parts on this diagram · 7 diagrams in section
