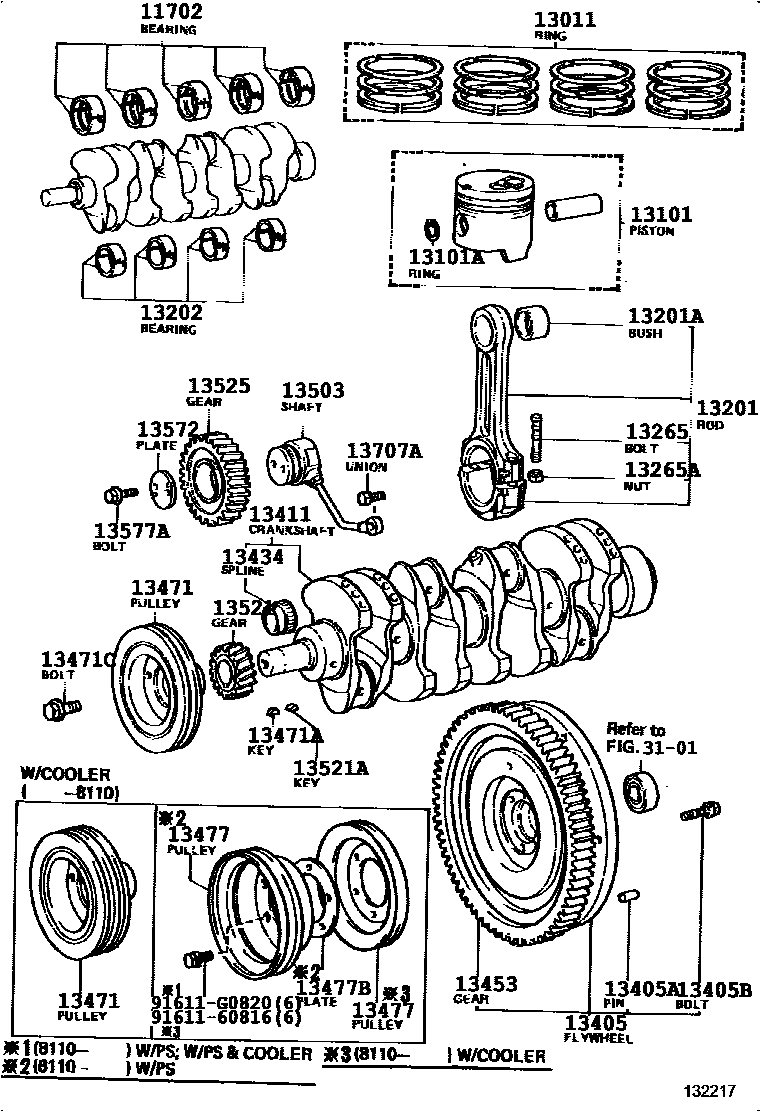

CRANKSHAFT & PISTON
11702BEARING SET, CRANKSHAFT
STD
REP STD #1
U/S 0.05
REP STD #2
U/S 0.25
U/S 0.25
U/S 0.50
U/S 0.50
U/S 0.75
U/S 1.00
13011RING SET, PISTON
STD
O/S 0.50
O/S 1.00
O/S 1.50
13101PISTON SUB-ASSY, W/PIN
STD
O/S 0.50
13101ARING, HOLE SNAP(FOR PISTON PIN)
13201ROD SUB-ASSY, CONNECTING
13201ABUSH(FOR CONNECTING ROD SMALL END)
13202BEARING SET, CONNECTING ROD
REP STD #1
REP STD #2
U/S 0.25
U/S 0.25
U/S 0.50
U/S 0.50
U/S 0.75
U/S 0.75
U/S 1.00
U/S 1.00
13265BOLT, CONNECTING ROD
13265ANUT, HEXAGON(FOR CONNECTING ROD BOLT)
13405FLYWHEEL SUB-ASSY
13405APIN, STRAIGHT(FOR FLYWHEEL)
13405BBOLT, FLYWHEEL SETTING
*13-1.5PX30-20
13411CRANKSHAFT
13434SPLINE, OIL PUMP DRIVE
13453GEAR, FLYWHEEL RING
N=108
N=110
13471PULLEY, CRANKSHAFT
W/COOLER
OD=155
W/PS,OD=155
W/COOLER & PS,OD=155 & 227
W/COOLER, OD=155 & 227
24A-40A OR COLD SPEC
13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
13477PULLEY, CRANKSHAFT, NO.2
W/PS
NO.2,W/PS
NO.2,W/PS
NO.1,W/COOLER
NO.1,W/COOLER
NO.1,W/COOLER
13477BPLATE, CRANKSHAFT PULLEY, NO.2
W/PS
W/PS
13503SHAFT SUB-ASSY, IDLE GEAR
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
N=22
13521AKEY(FOR CRANKSHAFT TIMING GEAR)
13525GEAR, IDLE, NO.1
N=51
13572PLATE, IDLE GEAR THRUST
13577ABOLT, HEXAGON(FOR IDLE GEAR BOLT LOCK)
13707AUNION(FOR OIL PIPE, NO.1)
3101CLUTCH & RELEASE FORK
9161160816
main91611-60816
91611G0820
main91611-G0820
30 parts on this diagram · 5 diagrams in section
