Toyota LAND CRUISER VAN — TIMING GEAR COVER & REAR END PLATE

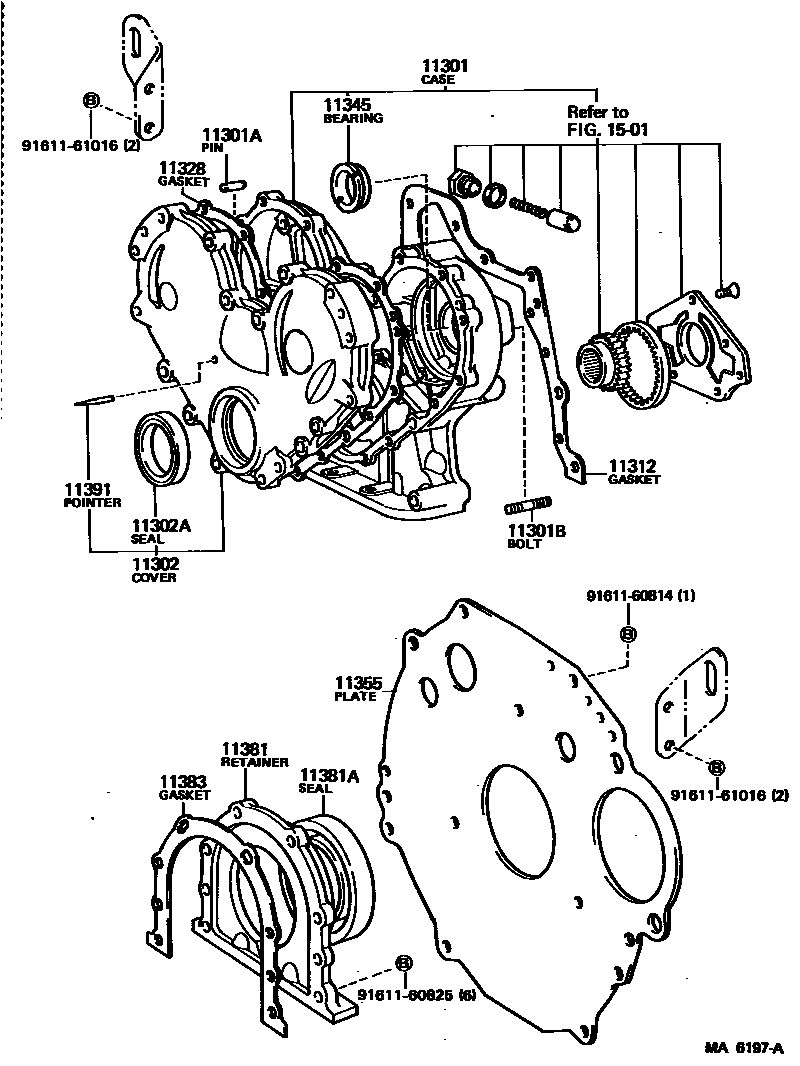

Parts diagram

11301CASE SUB-ASSY, TIMING GEAR

11301APIN, STRAIGHT(FOR TIMING GEAR CASE)

11301BBOLT,STUD(FOR TIMING GEAR CASE)

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

11302ASEAL, OIL(FOR TIMING CHAIN OR BELT COVER)

11312GASKET, FRONT END PLATE

11328GASKET, TIMING GEAR OR CHAIN COVER

11345BEARING, INJECTION PUMP GEAR THRUST

11355PLATE, REAR END

11381RETAINER, ENGINE REAR OIL SEAL

11381ASEAL, ENGINE REAR OIL

11383GASKET, ENGINE REAR OIL SEAL RETAINER

11391POINTER, TIMING

1501ENGINE OIL PUMP

→ Go to FIG 15-01

9161160814

9161160825

9161161016

17 parts on this diagram · 5 diagrams in section

TIMING GEAR COVER & REAR END PLATE for Toyota LAND CRUISER VAN

This section contains 58 genuine Toyota parts for the TIMING GEAR COVER & REAR END PLATE system of the Toyota LAND CRUISER VAN. Key components include: GASKET KIT, CLUTCH UNDER COVER, CYLINDER BLOCK, CASE SUB-ASSY, TIMING GEAR, PIN, STRAIGHT(FOR TIMING GEAR CASE), BOLT,STUD(FOR TIMING GEAR CASE).
