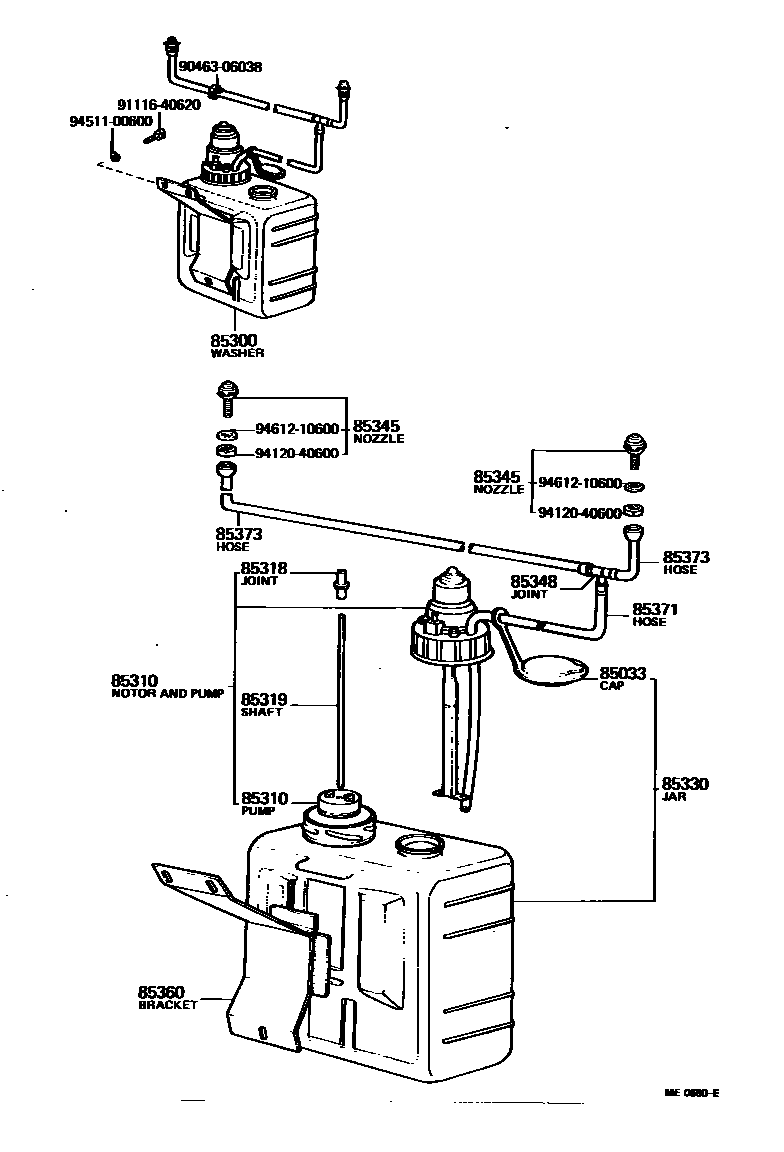

WINDSHIELD WASHER

0001 1 0002 1 0003 1 0005 1 0006 1 0007 1

85033CAP ASSY, WINDSHIELD WASHER

main85332-10060iFJ55197309-197401

main85332-10061iFJ4#197309-197401

main85332-60010iBJ4#,FJ56197902-198007

main85333-10031iFJ4#,55196903-197109

85300WASHER ASSY, WINDSHIELD

main85300-60022iFJ4#196903-197109

main85300-60030iFJ55196903-197109

main85300-60040iBJ4#197402-197709

main85300-69015iFJ4#197109-197209

main85300-69016iFJ4#197209-197309

main85300-69017iFJ4#197309-197509

main85300-69025iFJ55197109-197209

main85300-69026iFJ5#197209-197709

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85039-10031iFJ4#,55196903-197109

PUMP ONLY

main85310-10032iFJ4#,55196903-197109

W/MOTOR

main85310-10060iFJ4#,5#197109-197709

main85310-55060iBJ4#197402-197902

main85310-60010iFJ56197709-198007

main85310-60020iBJ4#197902-198007

85318JOINT, WINDSHIELD WASHER MOTOR

main85318-10031iFJ4#,55196903-197109

85319SHAFT, WINDSHIELD WASHER PUMP

main85319-10031iFJ4#,55196903-197109

85330JAR ASSY, WINDSHIELD WASHER

main85330-10010iFJ4#196903-197109

main85330-10060iFJ4#,55197109-197309

main85330-10070iBJ4#,FJ4#,5#197401-197709

main85330-60011iFJ56197902-198007

main85330-60030iFJ56197709-197902

main85330-60051iBJ4#197902-198007

main85331-10031iFJ55196903-197109

85345NOZZLE, WINDSHIELD WASHER

main85035-10061iFJ56197602-197902

main85035-60010×2iFJ4#196903-197109

main85035-60030iFJ55196903-197109

main85035-60050iBJ4#197602-197902

main85035-60061iBJ41..V197902-198007

main85341-60030iFJ4#,55197109-197209

main85341-60040×2iFJ56197902-198007

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85355-10060iFJ55197309-197401

main85355-60010iFJ56197902-198007

3WAY

85360BRACKET ASSY, WINDSHIELD WASHER

main85361-10031iFJ5#196903-197709

main85361-60022iFJ4#196903-197309

main85361-60023iBJ4#,FJ4#197309-197902

main85361-60060iBJ4#197902-198007

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85343-60030iFJ4#,55196903-197109

main90446-06055iBJ4#,FJ4#197309-197902

main90446-06265iFJ4#,55197109-197309

main90446-06302iFJ5#197401-197709

main90446-06319iFJ56197709-198007

main90446-06341iBJ4#197902-198007

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main85344-60010iFJ4#196903-197109

L=640

main85353-60010iFJ4#196903-197109

L=40

main85370-60020iBJ41..V197902-198007

L=400

main90446-06006iFJ56197709-197902

main90446-06183iFJ55197109-197401

main90446-06205iBJ4#..TPC197902-198007

L=1200

main90446-06230iFJ56197902-198007

main90446-06300iFJ56197902-198007

main90446-06302iFJ4#197109-197309

9046306038

main90463-06038

9111640620

main91116-40620

9412040600

main94120-40600

9451100600

main94511-00600

9461210600

main94612-10600

16 parts on this diagram · 6 diagrams in section
