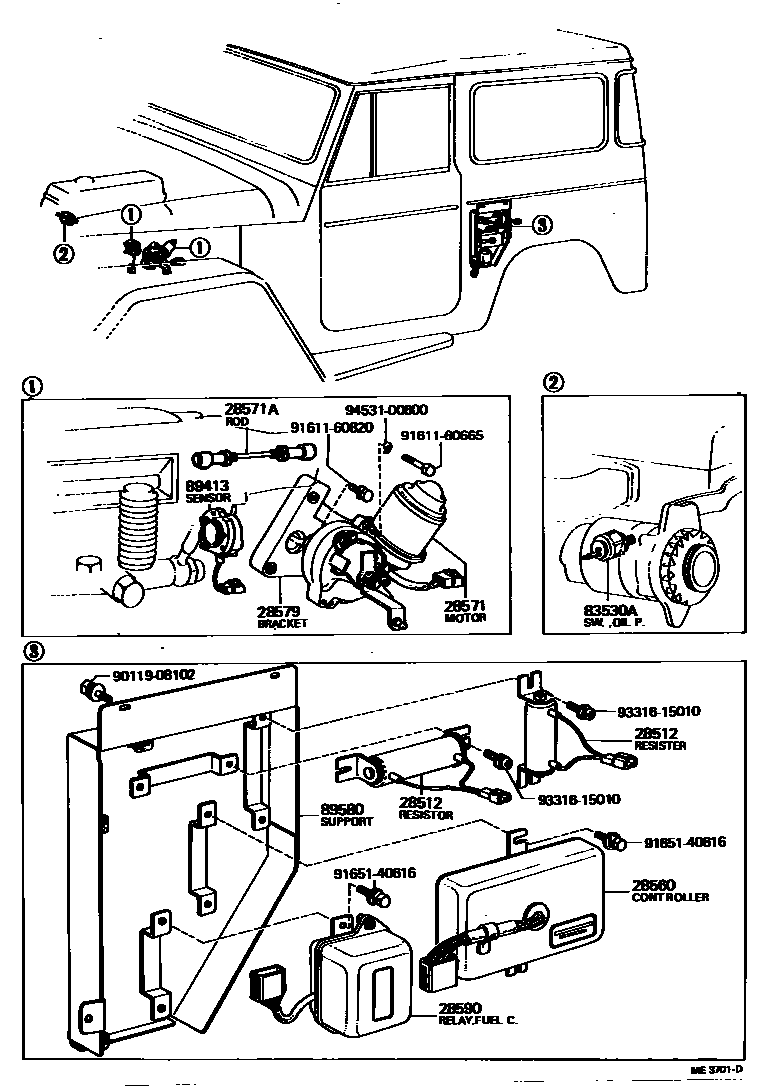

ELECTRONIC DIESEL INJECTION CONTROL SYSTEM

0001 1 0002 1

28512RESISTOR, MOTOR CONTROL

main28512-56011iB..BJ4#197402-197709

6 OHM

main28512-56021iB..BJ4#197402-197709

3 OHM

28560CONTROLLER ASSY, FUEL

main28560-56011iB..BJ4#197402-197709

28571MOTOR, FUEL CONTROL

main28571-56010iB..BJ4#197402-197407

main28571-56011iB..BJ4#197407-197612

main28571-56012iB..BJ4#197612-197709

main28571-56050iB,2B..BJ4#197709-198007

28571AROD, FUEL CONTROL MOTOR

main26380-56010iB..BJ4#197402-197709

main84580-36021iB,2B..BJ4#197709-198007

28579BRACKET, FUEL CONTROL MOTOR

main28579-56010iB..BJ4#197402-197709

main28579-56030iB,2B..BJ4#197709-198007

28590RELAY ASSY, FUEL CONTROL

main28590-56011iB..BJ4#197402-197709

main28590-56070iB,2B..BJ4#197709-198007

83530ASWITCH ASSY, OIL PRESSURE

main83530-14010iBJ4#197709-198007

main83530-36011iBJ4#197402-197709

89413SENSOR, ENGINE SPEED

main89413-60011iBJ4#197402-197709

89580SUPPORT ASSY, FUEL CONTROL

main89580-90300iBJ4#197402-197709

9011908102

main90119-08102

9161160665

main91611-60665

9161160820

main91611-60820

9165140616

main91651-40616

9331615010

main93316-15010

9453100600

main94531-00600

15 parts on this diagram · 2 diagrams in section
