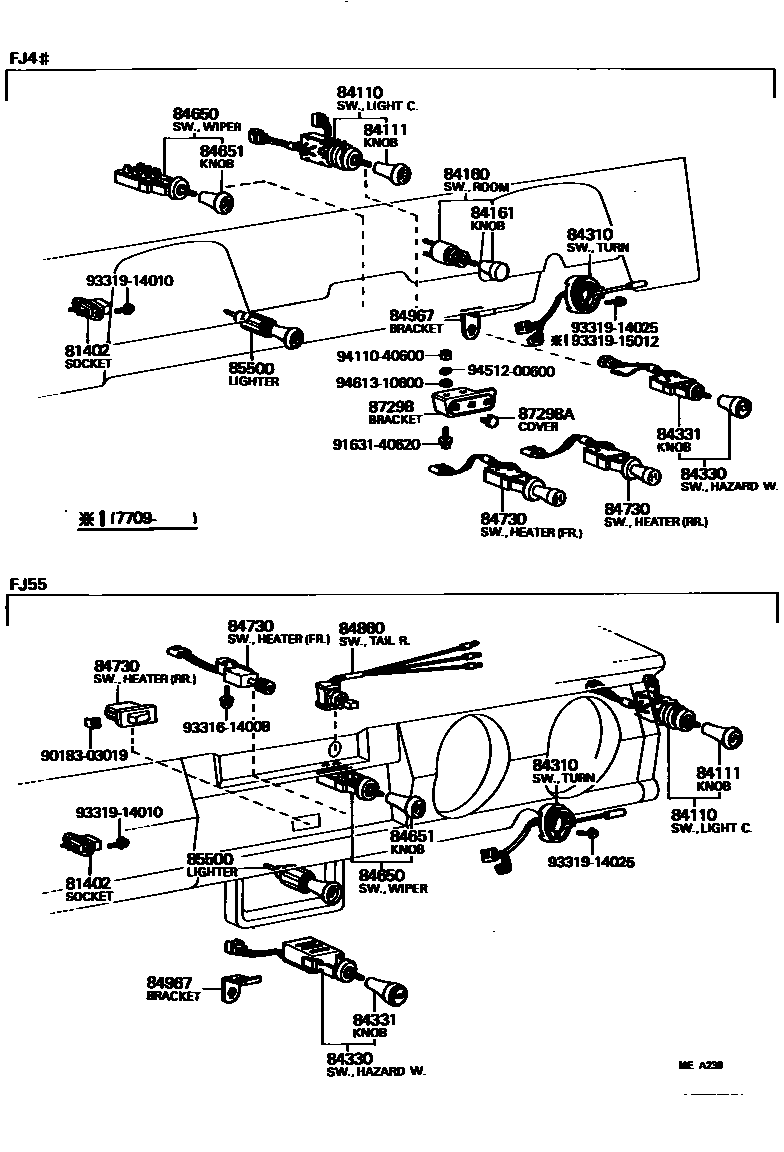

SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1

81402SOCKET SUB-ASSY, INSPECTION LAMP, NO.1

main81402-20020iBJ4#,FJ56197709-197712

main81402-29015iBJ4#,FJ4#197109-197709

main81402-29016iBJ4#,FJ56197712-198007

main81420-35010iFJ5#196903-197709

84110SWITCH ASSY, LIGHT CONTROL, NO.1

main84110-60030iFJ4#,55196903-196910

main84110-60050iFJ4#,55196910-197109

main84110-60051iFJ4#,55197109-197209

main84112-14040iBJ4#,FJ4#,5#197209-197709

main84112-60020iBJ4#,FJ56197709-198007

84111KNOB, LIGHT CONTROL SWITCH

main84111-20031iBJ4#,FJ4#,5#197209-198007

main84111-60021iFJ4#,55196903-197209

84160SWITCH ASSY, ROOM LAMP

main84270-60010iFJ4#..TPC196903-197109

main84270-60020iFJ4#..TPC197109-197309

84161KNOB, ROOM LAMP SWITCH

main84271-60011iFJ4#..TPC196903-197309

84310SWITCH ASSY, TURN SIGNAL

main84310-60011iFJ4#196903-197006

main84310-60012iFJ4#197006-197109

main84310-60014iFJ4#,5#197209-197709

main84310-60033iFJ4#197109-197209

main84310-60041iFJ55196903-197209

main84310-60060iBJ4#197402-198007

84330SWITCH ASSY, HAZARD WARNING SIGNAL

main84330-35010iFJ55196903-197109

main84330-60010iFJ4#196903-197109

main84330-60020iFJ4#,55197109-197209

main84330-60021iFJ4#,55197209-197309

main84332-60010iBJ4#,FJ4#,5#197309-197709

main84332-60011iBJ4#,FJ56197709-198007

84331KNOB, HAZARD WARNING SIGNAL SWITCH

main84331-20012iBJ4#,FJ4#,5#197209-198007

main84331-60010iFJ4#,55197109-197209

84650SWITCH ASSY, WINDSHIELD WIPER

main84650-60040iFJ55196903-197109

main84650-60050iFJ4#,55196903-197209

main84650-60051iFJ4#,55197209-197309

main84652-27010iBJ4#,FJ56197709-198007

main84652-60010iBJ4#,FJ4#,5#197309-197709

84651KNOB, WINDSHIELD WIPER SWITCH

main84651-20031iBJ4#,FJ4#,5#197209-198007

main84651-60021iFJ4#,55196903-197209

84730SWITCH ASSY, HEATER BLOWER

main84730-12010iFJ55196903-197309

FRONT

main84730-60020iFJ5#196903-198007

REAR

main84732-60010iFJ5#197309-198007

FRONT

main87290-60030iFJ4#196903-197209

FRONT & REAR

main87290-60031iFJ4#197209-197309

FRONT

main87290-60040iFJ4#197209-197309

REAR

main87290-60041iBJ4#,FJ4#197309-198007

FRONT & REAR

84860SWITCH ASSY, TAIL GATE REMOTE CONTROL

main84860-60010iFJ5#..VTG196903-197709

main84860-60011iFJ56..VTG197709-198007

84967BRACKET, HAZARD WARNING SIGNAL SWITCH

main84967-60020iFJ4#,55197109-197209

85500LIGHTER ASSY, CIGARETTE

main85500-20042iBJ4#,FJ4#,5#197209-198007

main85500-60010iFJ4#,55196903-197103

main85500-60011iFJ4#,55197103-197209

87298BRACKET OR PANEL, HEATER SWITCH

main55352-90351iFJ5#197309-198007

main87295-60060iFJ4#196903-197209

87298ACOVER, HOLE (FOR HEATER SWITCH PANEL)

main55405-20020iFJ4#196903-197209

9018303019

main90183-03019

9163140620

main91631-40620

9331614008

main93316-14008

9331914010

main93319-14010

9331914025

main93319-14025

9331915012

main93319-15012

9411040600

main94110-40600

9451200600

main94512-00600

9461310600

main94613-10600

25 parts on this diagram · 10 diagrams in section
