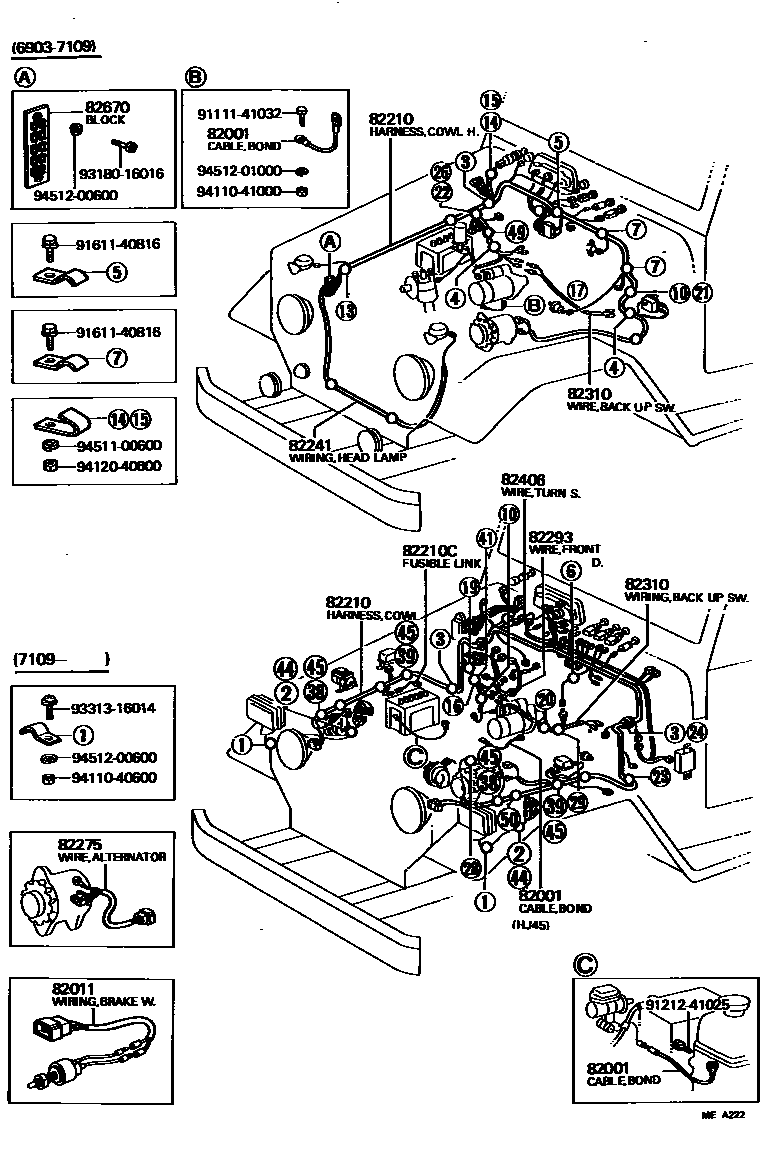

WIRING & CLAMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1 0014 1 0015 1 0016 1 0017 1

82001CABLE, BOND, NO.1

main82044-60020iFJ5#..VKC196903-197709

L=350

main82044-90301iFJ40..VKC197204-197509

L=300

main82046-14070iFJ4#197501-197509

L=330

main82381-60010iBJ4#,FJ4#,5#196903-197709

L=150

main82461-60010iFJ5#..VTG196903-198007

L=350

main90980-07003iFJ4#196903-197509

L=350

main90980-07056iBJ4#197402-198007

L=300

82011WIRING ASSY, BRAKE WARNING SYSTEM

main82011-90300iFJ4#197209-197309

82210HARNESS ASSY, WIRING COWL TO HEADLAMP, NO.1

main82210-60010iFJ55..VTG196903-196910

main82210-60050iFJ55..VKC196903-196910

main82210-60051iFJ55..VKC196910-197109

main82210-60070iFJ55..VTG196910-197003

main82210-60071iFJ55..VTG197003-197109

main82210-90300iFJ4#197109-197209

main82210-90301iFJ4#197109-197209

FOR TANDEM MASTER CYLINDER

main82210-90322iFJ4#197209-197309

main82210-90327iFJ4#197309-197501

main82210-90334iBJ4#197402-197501

main82210-90337iFJ4#197501-197509

main82210-90342iBJ4#197501-197709

main82210-90364iFJ55..VTG197109-197209

main82210-90366iFJ55197109-197209

W/M.R.T.B.W.

main82210-90368iFJ55..VTG197109-197209

FOR TANDEM MASTER CYLINDER

main82210-90369iFJ55197109-197209

W/M.R.T.B.W. & T.M.C.

main82210-90373iFJ55..VTG197209-197309

main82210-90374iFJ55197209-197309

W/M.R.T.B.W.

main82210-90378iFJ55..VTG197209-197309

FOR TANDEM MASTER CYLINDER

main82210-90379iFJ55197209-197309

W/M.R.T.B.W. & T.M.C.

main82210-90385iFJ55197309-197501

main82210-90395iFJ56197501-197608

main82210-90611iBJ4#197709-197902

main82210-90631iBJ4#197902-198007

main82210-90654iFJ56197608-197709

main82210-90660iFJ56197709-197902

main82210-90668iFJ56197902-198007

main82220-60172iFJ4#196903-196910

main82220-60240iFJ4#196910-197109

82210CFUSIBLE LINK

main90982-08019iFJ4#,5#197109-197709

main90982-08023iBJ4#197402-197709

main90982-08025iBJ4#197709-197902

main90982-08071iFJ56197709-198007

main90982-08101iBJ4#197902-198007

82241WIRING ASSY, HEADLAMP JUNCTION

main82240-60040iFJ4#196903-196910

main82240-60080iFJ4#196910-197109

82275WIRE, ALTERNATOR

main82422-90300iFJ4#197309-197501

82293WIRE ASSY, FRONT DRIVE SOLENOID

main82290-90300iFJ4#197501-197509

main82290-90350iFJ56197501-197902

82310WIRING ASSY, TO BACK UP LAMP SWITCH

main82310-20020iFJ4#197007-197209

main82310-60010iFJ55196903-197007

main82310-60020iFJ4#196903-197007

main82310-90350iFJ55197209-197501

FOR MAGNET FRONT DRIVE

main82310-90351iFJ55197209-197501

main82310-90352iFJ56197501-197902

main82310-90353iFJ56197501-197902

FOR MAGNET FRONT DRIVE

main82310-90356iFJ56197902-198007

main82310-90357iFJ56197902-198007

FOR MAGNET FRONT DRIVE

82406WIRE SUB-ASSY, TURN SIGNAL

82670BLOCK ASSY, JUNCTION, NO.1

main82670-30020×2iFJ4#,55..TPC,VLS,VTG196903-197107

9111141032

main91111-41032

9121241025

main91212-41025

9161140816

main91611-40816

9318016016

main93180-16016

9331316014

main93313-16014

9411040600

main94110-40600

9411041000

main94110-41000

9412040600

main94120-40600

9451100600

main94511-00600

9451200600

main94512-00600

9451201000

main94512-01000

21 parts on this diagram · 17 diagrams in section
