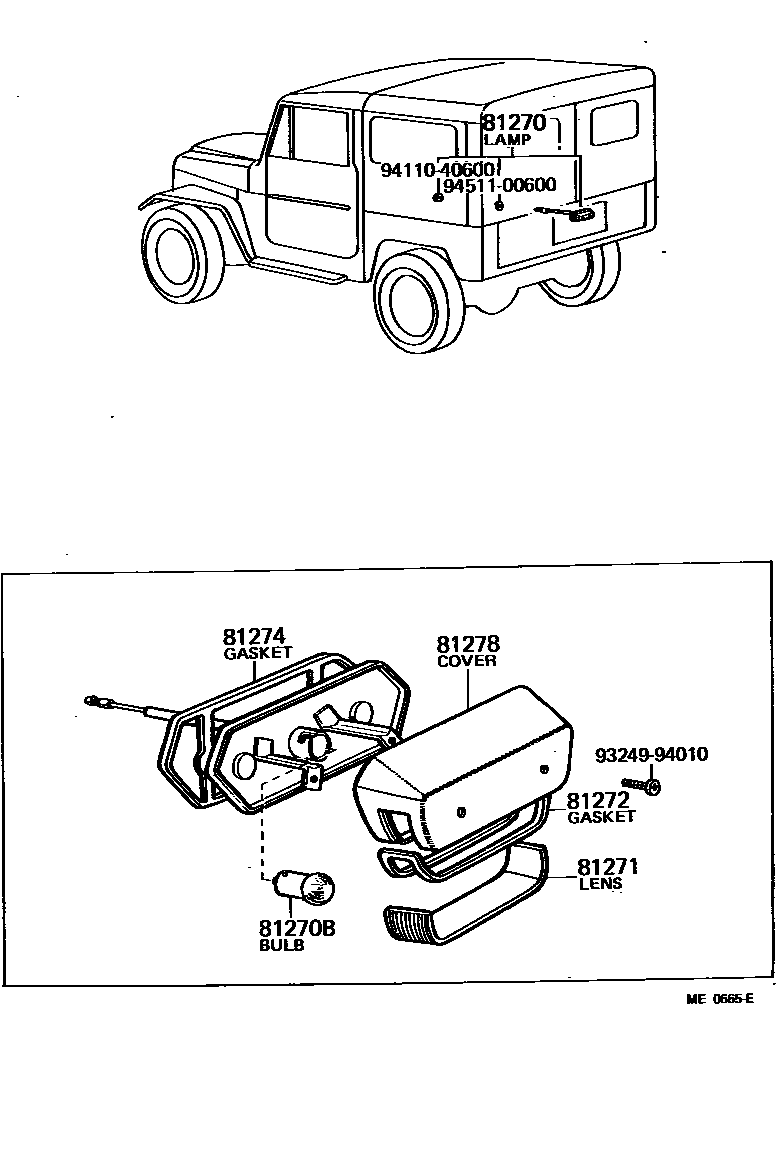

REAR LICENSE PLATE LAMP

0001 1 0002 1 0003 1 0005 1

81270LAMP ASSY, LICENSE PLATE

main81270-20030iFJ56..VKC197709-198007

main81270-29035iFJ5#..VKC197209-197709

main81270-39035×2iBJ4#197402-197405

main81270-60010iFJ4#196903-197402

main81270-60060iFJ5#..VTG197209-198007

FOR RH.

main81270-60070×2iBJ4#197405-197902

main81270-60071×2iBJ4#197902-198007

main81270-60090×2iFJ4#197402-197509

main81690-60010iFJ5#..VTG197209-198007

FOR LH.

81270BBULB (FOR LICENSE PLATE LAMP)

main90981-16017×2iBJ4#197405-198007

main99132-11075×2iFJ55196903-198007

main99132-11100iFJ4#196903-197509

main99134-11120×2iBJ4#197402-197405

81271LENS, LICENSE PLATE LAMP

main81271-10010×2iBJ4#197402-197405

main81271-14010×2iBJ4#,FJ4#197405-198007

main81271-20030iFJ55196903-197209

FOR RH.

main81271-20050×2iFJ5#..VTG197209-198007

main81271-60010iFJ4#196903-197402

main81279-20030iFJ5#..VKC197209-198007

FOR LH.

81272GASKET, LICENSE PLATE LAMP LENS

main81272-10010×2iBJ4#,FJ4#197402-198007

main81272-20031iFJ55196903-197209

FOR RH.

main81272-60010iFJ4#196903-197402

main81278-20031iFJ5#..VKC197209-198007

FOR LH.

81274GASKET, LICENSE PLATE LAMP BODY

main81274-20030iFJ55196903-197209

main81274-60010iFJ4#196903-197402

main81274-60060iFJ5#..VTG197209-198007

FOR RH.

main81694-60010iFJ5#..VTG197209-198007

FOR LH.

81278COVER, LICENSE PLATE LAMP

main81278-10011×2iBJ4#197402-197405

main81278-60010iFJ4#196903-197402

main81278-60090×2iFJ4#197402-197405

9324994010

main93249-94010

9411040600

main94110-40600

9451100600

main94511-00600

9 parts on this diagram · 4 diagrams in section
