REAR COMBINATION LAMP

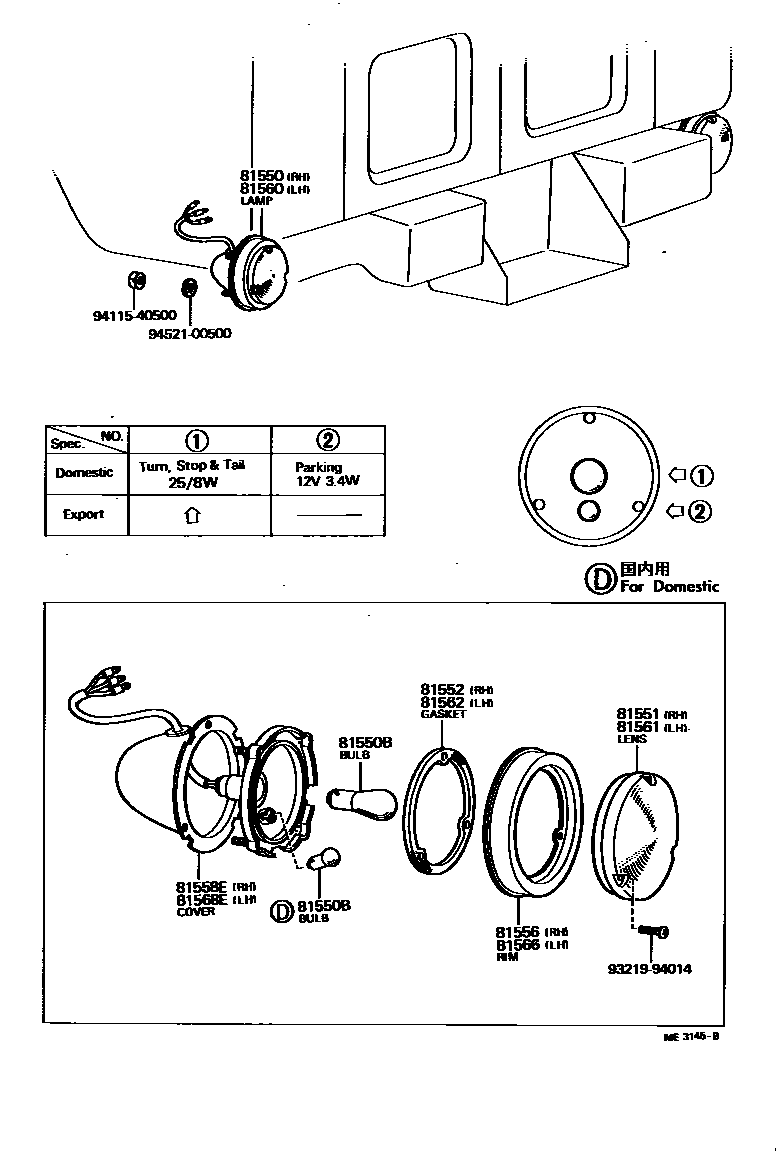

Parts diagram
81550LAMP ASSY, REAR COMBINATION, RH
main81550-60090i196903-196910
AMBER-RED
main81550-60130i196903-196910
RED
main81550-60150i196910-197709
AMBER-RED
main81550-60160i196910-197309
RED
main81550-60180i197309-197509
AMBER-RED-CLEAR
main81550-60240i197402-197709
AMBER-RED-CLEAR
main81550-60242i197709-197902
AMBER-RED-CLEAR
main81550-60243i197902-198007
AMBER-RED-CLEAR
main81550-69025i197709-198007
AMBER-RED-CLEAR
81550BBULB(FOR REAR COMBINATION LAMP)
main90981-16015×2i197709-198007
main99132-11034×2i196910-197309
main99132-11230×2i196903-197309
main99132-12034×2i197309-197709
main99132-21210×2i197709-198007
main99132-21230×2i196908-197709
main99132-22250×2i196903-196908
12V 25/8W
main99134-11250×4i197402-198007
main99134-12030×2i197402-197709
main99134-22250×2i197402-197709
81551LENS, REAR COMBINATION LAMP, RH
main81551-26040i197309-198007
AMBER-RED-CLEAR
main81551-60090i196903-197709
AMBER-RED
main81551-60130i196903-197309
RED
main81551-60280i197709-198007
AMBER-RED-CLEAR
81552GASKET, REAR COMBINATION LAMP LENS, RH
main81552-60130i196903-197309
main81557-60090i196903-197709
81556RIM, REAR COMBINATION LAMP, RH
main81556-60090i196903-197709
main81556-60130i196903-197309
main81556-60280i197709-198007
81558SHADE, REAR COMBINATION LAMP, NO.1 RH
main81557-26040i197309-198007
main81557-60280×2i197709-198007
main81558-60090i196903-197709
81558ECOVER, REAR COMBINATION LAMP, RH
main81558-60130i196903-197309
81560LAMP ASSY, REAR COMBINATION, LH
main81550-60130i196903-196910
RED
main81550-60160i196910-197309
RED
main81560-60040i196903-196910
AMBER-RED
main81560-60080i197309-197509
AMBER-RED-CLEAR
main81560-60090i196910-197709
AMBER-RED
main81560-60160i197402-197709
AMBER-RED-CLEAR
main81560-60162i197709-197902
AMBER-RED-CLEAR
main81560-60163i197902-198007
AMBER-RED-CLEAR
main81560-69025i197709-198007
AMBER-RED-CLEAR
81561LENS, REAR COMBINATION LAMP, LH
main81551-60130i196903-197309
RED
main81561-26040i197309-198007
AMBER-RED-CLEAR
main81561-60040i196903-197709
AMBER-RED
main81561-60200i197709-198007
AMBER-RED-CLEAR
81562GASKET, REAR COMBINATION LAMP LENS, LH
main81552-60130i196903-197309
main81567-60040i196903-197709
81566RIM, REAR COMBINATION LAMP, LH
main81556-60130i196903-197309
main81566-60040i196903-197709
main81566-60200i197709-198007
81568SHADE, REAR COMBINATION LAMP, NO.1 LH
main81557-26040i197309-198007
main81557-60280×2i197709-198007
main81568-60040i196903-197709
81568ECOVER, REAR COMBINATION LAMP, LH
main81558-60130i196903-197309
9321994014
main93219-94014
9411540500
main94115-40500
9452100500
main94521-00500

16 parts on this diagram · 4 diagrams in section
