77014STRAINER SUB-ASSY, FUEL

main77014-60010i196903-197109

main77014-60011i197501-197608

77031CAP ASSY, FUEL TANK

main77031-60010i197109-197302

L/VALVE,W/KEY

main77310-14070i197709-198007

W/VALVE,L/KEY

main77310-35010i196903-197012

L/VALVE,L/KEY

main77310-55080i197402-198007

W/VALVE,L/KEY

main77310-60011i197109-197302

L/VALVE,L/KEY

main77310-60021i196903-197109

L/VALVE,W/KEY

main77310-60051i197302-197709

W/VALVE,L/KEY

main77310-90351i197012-197109

W/VALVE,L/KEY

77031BGASKET (FOR FUEL TANK CAP)

main77316-12050i197709-198007

main77316-27010i197109-197709

main90430-40059i196903-197109

77100TANK ASSY, FUEL

main77001-60012i196903-196908

main77001-60013i196908-197203

main77001-90353i196903-196909

main77100-60012i197204-197209

main77100-60013i197209-197302

main77100-60043i197309-197509

main77100-60045i197905-198007

main77100-60050i197302-197309

main77100-60051i197402-197902

main77100-60052i197902-197905

main77100-60080i197608-197709

main77100-60081i197709-197902

main77100-60082i197902-198007

main77100-90359i197209-197302

main77100-90362i197302-197309

main77100-90365i196909-197209

main77100-90371i197309-197608

77100APLUG(FOR FUEL TANK)

main90105-12005i196903-196908

main90105-12018i196908-197902

main90341-24036i197902-198007

77100BGASKET(FOR FUEL TANK)

main90430-12038i196903-197902

main90430-12245i197902-198007

main90430-24047i197902-198007

77100DHOSE, FUEL, NO.1(FOR FUEL TANK)

main77264-90351×2i196903-196905

main77264-90352×2i196905-196909

main77271-90351i196909-197005

L=500

main77271-90352i197005-197209

L=500

main77272-90351i196909-197005

L=600

main77272-90352i197005-197608

L=600

main90445-20506i196909-197209

main90445-22002i197902-197903

main90445-22016i197903-198007

main90445-22907i197209-197902

main90445-24014i197608-198007

L=160

main90445-24015i197608-198007

L=370

main90446-16097i196903-196909

77200PIPE ASSY, FUEL STRAINER AND OUTER INLET

main77201-60041i196903-197109

W/STRAINER

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-60011i196903-196909

main77201-60012i196909-197109

main77201-60013i197109-197209

main77201-60040i196903-196909

W/STRAINER

main77201-60041i196909-197109

W/STRAINER

main77201-60042i197109-197209

W/STRAINER

main77201-60050i197209-197902

main77201-60051i197902-198007

main77201-60060i197209-197608

W/STRAINER

main77201-60100i197608-197709

main77201-60101i197709-197902

main77201-60102i197902-198007

main77201-90353i196903-196909

main77201-90354i196903-196909

W/STRAINER

main77201-90355i196909-197012

main77201-90356i197012-197109

main77201-90357i196909-197012

W/STRAINER

main77201-90358i197012-197109

W/STRAINER

main77201-90359i197109-197209

main77201-90361i197109-197209

W/STRAINER

main77201-90363i197209-197302

main77201-90364i197302-197608

main77201-90365i197209-197302

W/STRAINER

main77201-90366i197302-197501

W/STRAINER

77213HOSE, FUEL TANK SUB INLET

main77212-90353i196903-197608

main77213-60020i197608-197709

main77213-60022i197709-197902

main77213-60023i197902-198007

main77217-60010i196903-197109

main77217-60013i197109-197209

main77217-60014i197209-197902

main77217-60015i197902-198007

77241TUBE, FUEL MAIN, NO.1

main77251-60030i197007-197309

main77251-60050i197309-197509

main77251-60060i197402-197709

main77251-60061i197709-197902

main77251-60062i197902-198007

main77251-60090i197608-197709

main77251-60091i197709-197902

main77251-60140i197902-198007

main77256-90351i196903-197006

main77256-90352i197006-197209

main77256-90353i197209-197211

main77256-90354i197211-197302

main77256-90355i197302-197608

main90923-01042i196903-197007

77241AHOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)

main77202-90351i196903-197006

L=400

main90445-12627i197012-197108

main90445-12628i197007-197012

main95311-07015i197108-197207

main95332-08005i197608-197709

main95332-08013i197207-197209

main95332-08015i197209-197509

main95332-08020i197902-198007

main95332-08028i197709-198007

main95332-08030i197211-197302

main95332-08040i197402-197709

main95332-08044i197006-197211

main95332-08050i197302-197608

77241BHOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)

main77203-90351i196903-197006

L=300

main90445-14030i197608-198007

L=410

main90923-01163i197007-197108

main90923-01175i197006-197209

L=300

main90923-01182i197108-197302

main90923-01194i197209-197302

main95332-08024i197302-197706

main95332-08034i197902-198007

main95332-08036i197302-197608

77251SHIELD, FUEL TANK, INLET, NO.1

main77262-90351i196903-197012

main77262-90352i197012-197608

main77293-60010i196903-197209

main77293-60020i197209-197902

main77293-60030i197608-197902

77308COVER SUB-ASSY, FUEL INLET BOX

main61802-90300i197302-197902

main61802-90301i197902-197904

main61802-90302i197904-198007

main61803-90351i197208-197805

main61803-90352i197805-198007

main61821-90903i196903-197208

main77011-60011i196903-197209

77611BAND, FUEL TANK

main77601-60010×2i196903-197109

FRONT

main77601-60041i197902-198007

RH.

main77601-90903×2i197109-197309

main77602-60011×2i196903-197109

REAR

main77602-60021i197902-198007

LH.

77611APIN (FOR FUEL TANK BAND)

main77653-35010×10i196903-197109

77614SEAT, FUEL TANK BAND

main77615-60010×2i196903-197109

FRONT

main77616-60010×2i196903-197109

REAR

77652CUSHION, FUEL TANK, NO.1

main77651-60020i197902-198007

750X100

main77651-60030×5i197810-197902

main77652-60010×4i196903-197810

main77652-60011×2i197902-198007

230X80

main77653-60010i197902-198007

350X80

main77654-60010×4i197902-198007

100X100

9038512022

main90385-12022

9046210136

main90462-10136

9046212024

main90462-12024

9046713125

main90467-13125

9048022400

main90480-22400

9048058059

main90480-58059

9048068062

main90480-68062

9111140620

main91111-40620

9161140816

main91611-40816

9318016040

main93180-16040

9331614016

main93316-14016

9331616016

main93316-16016

9411040600

main94110-40600

9451100600

main94511-00600

9611110220

main96111-10220

9611110670

main96111-10670

9613131300

main96131-31300

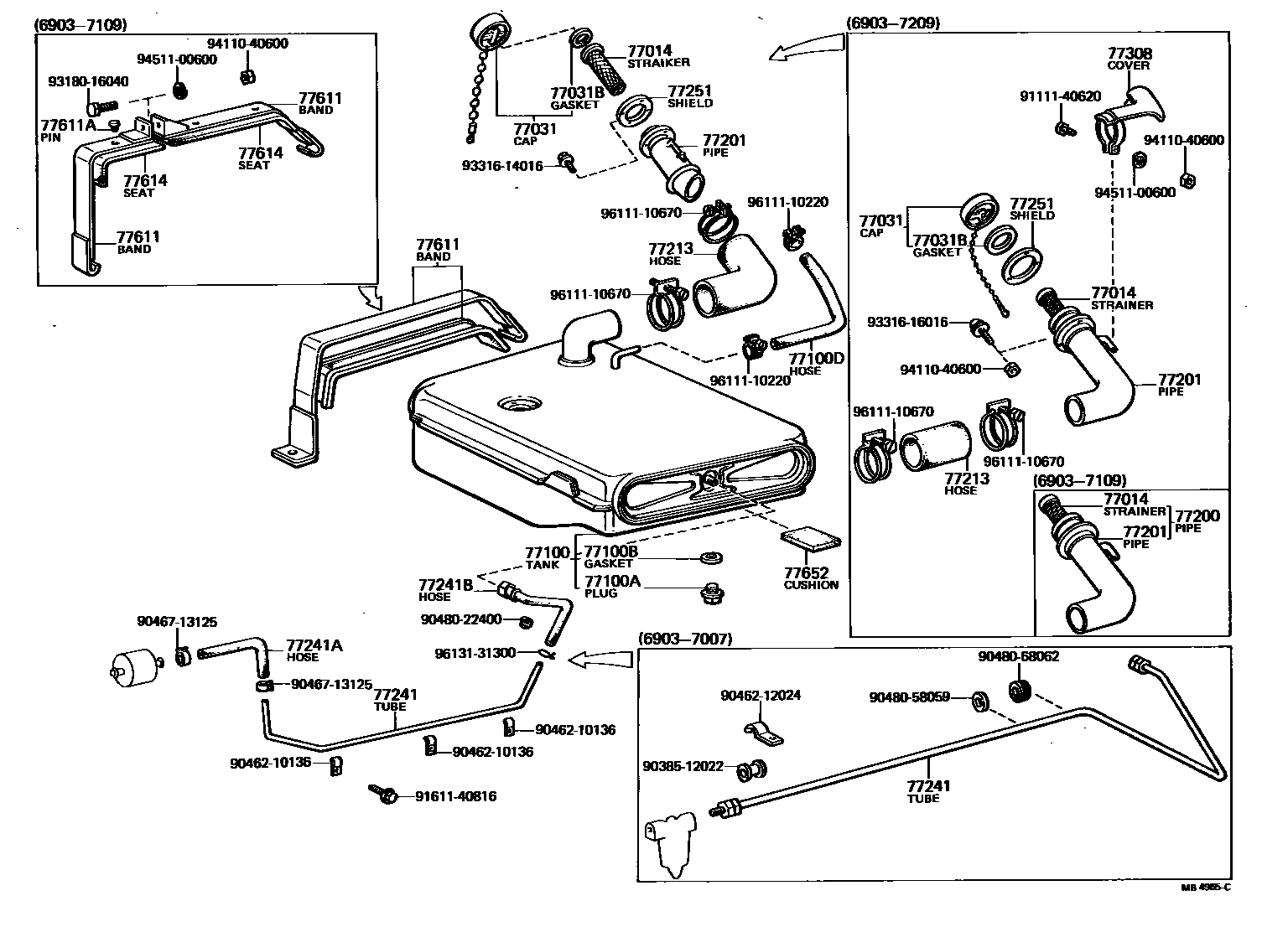

FUEL TANK & TUBE
