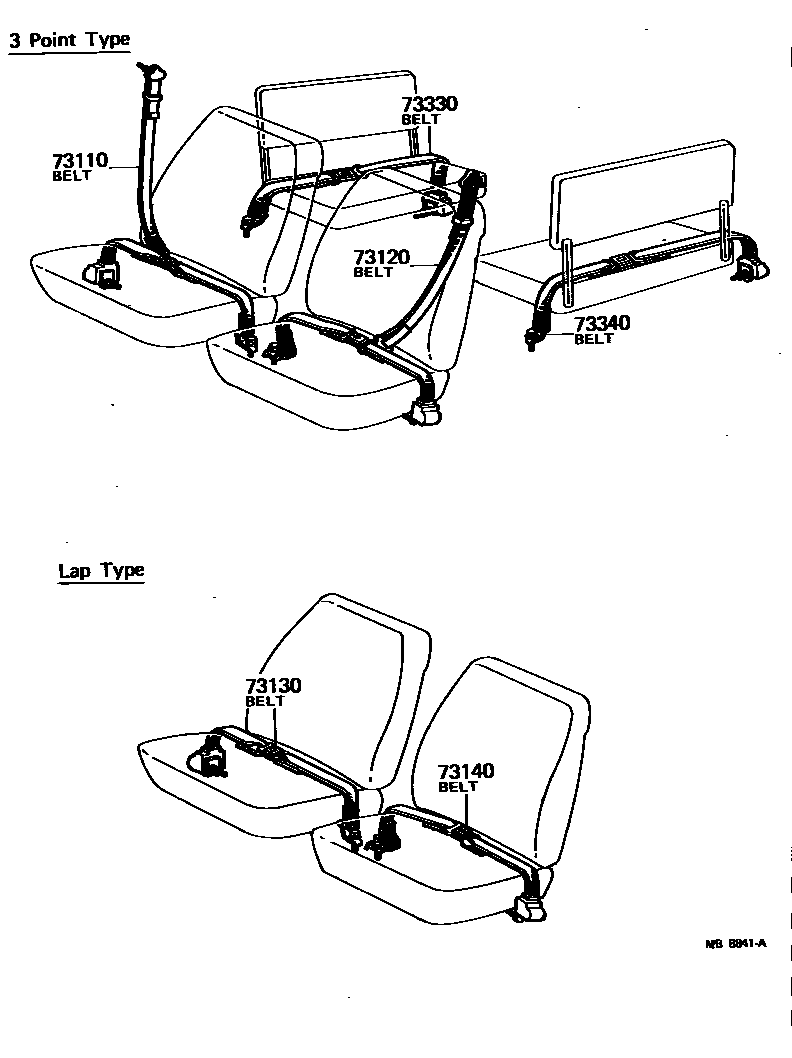

SEAT BELT

0001 1 0002 1 0003 1 0004 1

73110BELT ASSY, FRONT SEAT 3 POINT TYPE, RH

main71830-90326iBJ4#,FJ4#..TP197402-197902

FOR SEPARATE SEAT

sub73110-90300

main71840-90358iFJ5#196903-197509

main71840-90364iFJ56197509-197902

main71850-90337iBJ40,FJ40..V197303-197902

FOR BENCH SEAT

73120BELT ASSY, FRONT SEAT 3 POINT TYPE, LH

main71840-90326iBJ4#,FJ4#..TP197402-197902

FOR SEPARATE SEAT

sub73110-90300

main71840-90358iFJ56197501-197509

main71840-90364iFJ56197509-197902

main71850-90337iBJ40,FJ40..V197303-197902

FOR BENCH SEAT

73130BELT ASSY, FRONT SEAT LAP TYPE, RH

main71830-90321iBJ4#,FJ4#..TP197402-197902

FOR SEPARATE SEAT

sub73130-90300

main71840-90351-04iFJ55196903-197109

BLUE

main71840-90355iFJ55197109-197111

main71840-90357iFJ55197111-197209

main71850-60013iFJ4#197109-197303

main71850-60013iBJ4#,FJ4#..TP197303-197902

FOR BENCH SEAT

main71850-60013-04iFJ4#196903-197109

BLUE

sub71850-60013

73140BELT ASSY, FRONT SEAT LAP TYPE, LH

main71840-90321iBJ4#,FJ4#..TP197402-197902

SEPARATE SEAT

sub73130-90300

main71840-90331iBJ4#..TPC197902-198007

FOR L/SAFETY BAR

main71850-60013iFJ4#197109-197303

main71850-60013iBJ4#,FJ4#..TP197303-197902

FOR BENCH SEAT

main71850-60013-04iFJ4#196903-197109

BLUE

sub71850-60013

73330BELT ASSY, REAR SEAT LAP TYPE, RH

main71850-90351-04iFJ55196903-197109

BLUE

main71850-90357iFJ5#197109-197902

main71930-60010iBJ40,FJ40..V197209-197501

main71930-90300iBJ40,FJ40..V197501-197902

73340BELT ASSY, REAR SEAT LAP TYPE, LH

main71850-90357iFJ5#197109-197902

main71930-60010iBJ40,FJ40..V197209-197501

main71930-90300iBJ40,FJ40..V197501-197902

6 parts on this diagram · 4 diagrams in section
